Buckingham 21402 Attachment Instructions

PN 21402 – HOOK & LOOP FASTENER FOOT STRAPS WITH QC BUCKLE
Note: hardware, materials and colors may vary from that shown.

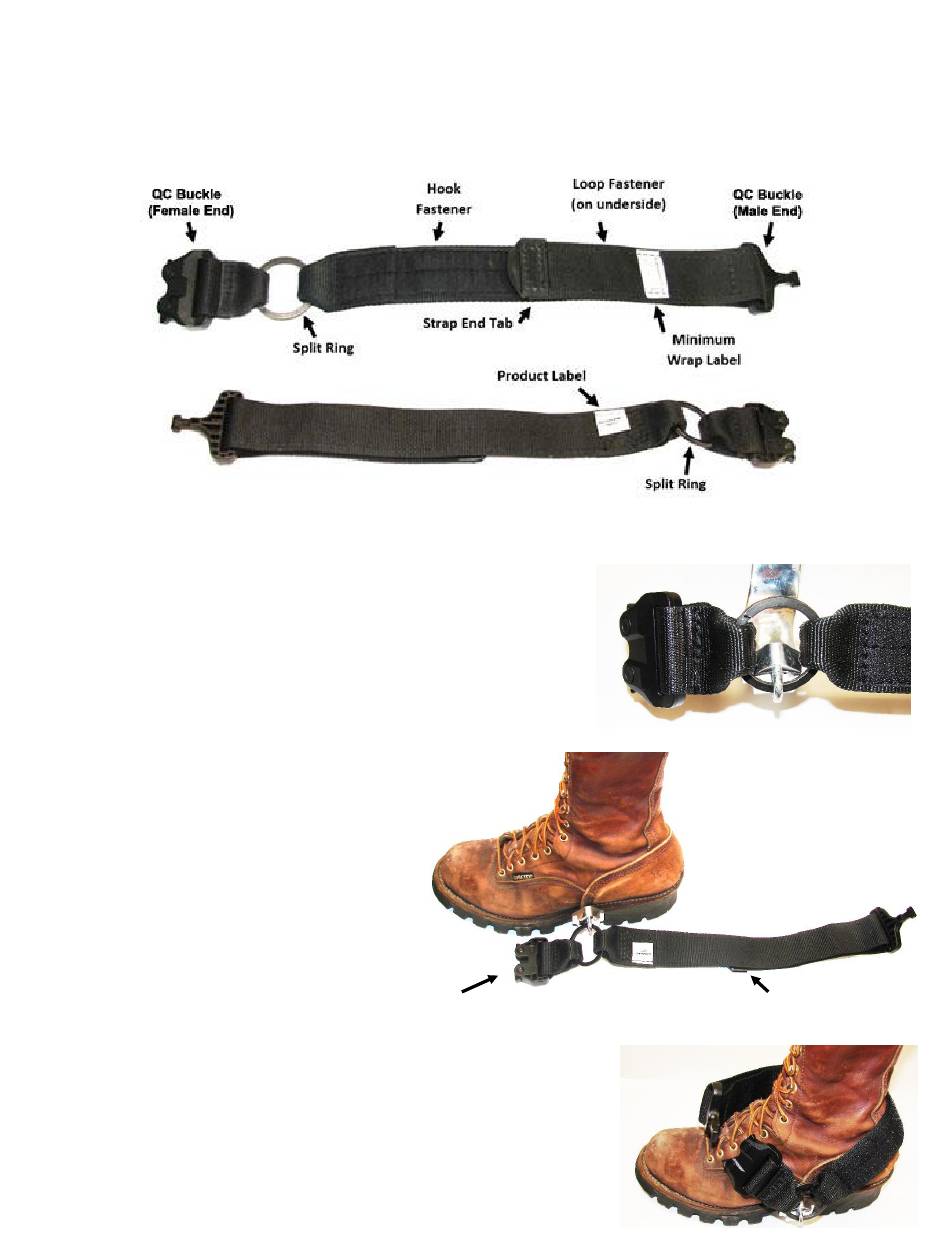

Attach the foot strap to the climber by separating the split ring
and inserting it thru the climber ring as shown in Fig. 1. Rotate
the split ring until it is completely inside the climber ring.
Ensure the female half of the QC Buckle is towards the front
of your foot and the strap end tab is facing down when the strap
is lying flat as shown in Fig. 2.
Step into the climber (Fig. 2).
Wrap the footstrap around the back of your ankle and over the top of
your foot (Fig. 3).
PN 21402.doc (02/5/19)
PN 230443
BUCKINGHAM MFG.
ATTACHMENT INSTRUCTIONS
(USE WITH RING TYPE CLIMBERS ONLY)
Female Half of QC Buckle
Facing Front of Foot
Fig. 2
Fig. 3
1 of 2
Fig. 1
Strap End Tab
Facing Down
