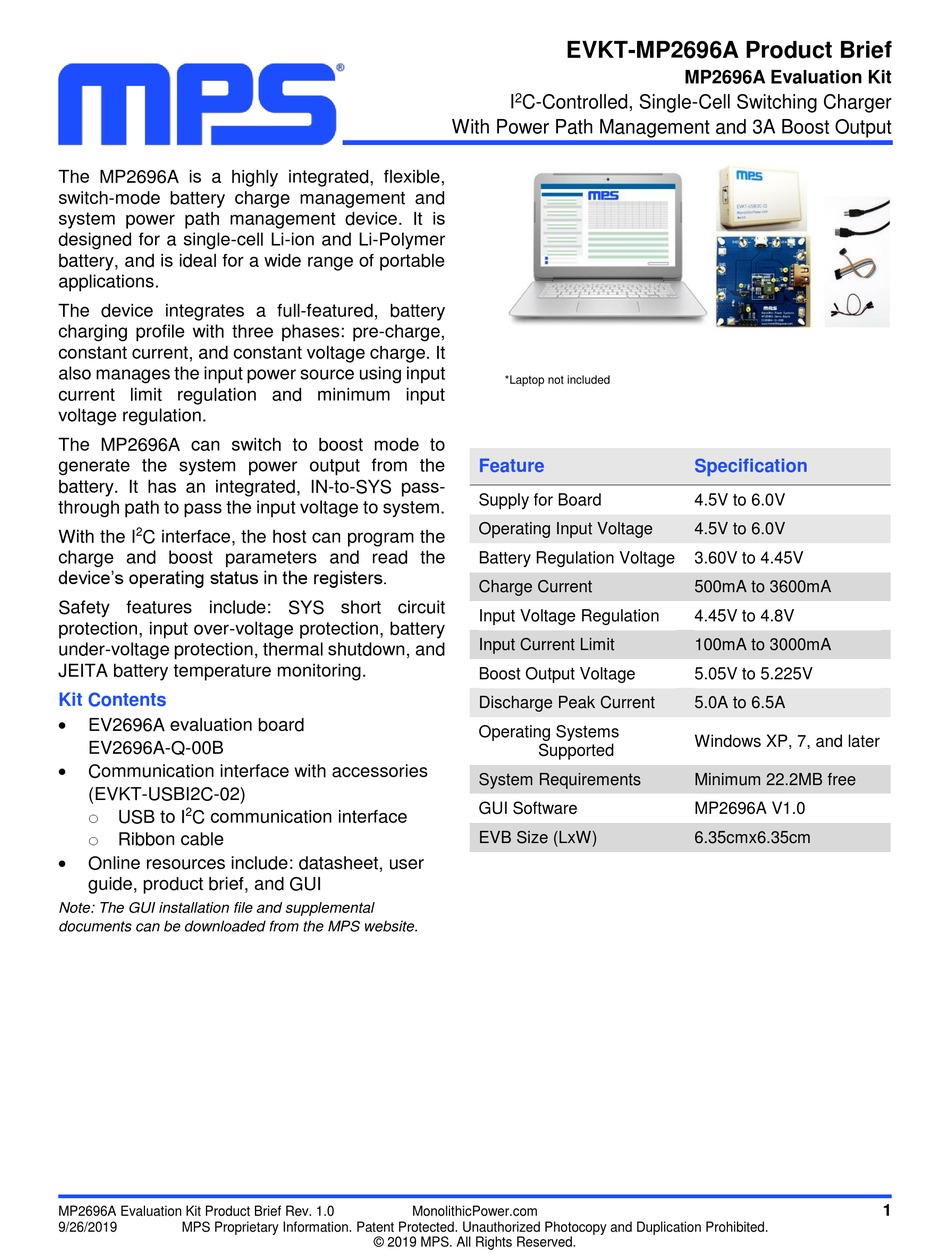

MPS MP2696A Product Brief

The MP2696A is a highly integrated, flexible,
switch-mode battery charge management and
system power path management device. It is
designed for a single-cell Li-ion and Li-Polymer
battery, and is ideal for a wide range of portable
applications.
The device integrates a full-featured, battery
charging profile with three phases: pre-charge,
constant current, and constant voltage charge. It
also manages the input power source using input
current limit regulation and minimum input
voltage regulation.
The MP2696A can switch to boost mode to
generate the system power output from the
battery. It has an integrated, IN-to-SYS pass-
through path to pass the input voltage to system.
2
With the I C interface, the host can program the
charge and boost parameters and read the
device's operating status in the registers.
Safety features include: SYS short circuit
protection, input over-voltage protection, battery
under-voltage protection, thermal shutdown, and
JEITA battery temperature monitoring.

Kit Contents


EV2696A evaluation board
EV2696A-Q-00B

Communication interface with accessories
(EVKT-USBI2C-02)
o USB to I 2
C communication interface
o Ribbon cable

Online resources include: datasheet, user
guide, product brief, and GUI
Note: The GUI installation file and supplemental
documents can be downloaded from the MPS website.
MP2696A Evaluation Kit Product Brief Rev. 1.0
9/26/2019 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
2
I C-Controlled, Single-Cell Switching Charger
With Power Path Management and 3A Boost Output
*Laptop not included
Feature
Supply for Board
Operating Input Voltage
Battery Regulation Voltage
Charge Current
Input Voltage Regulation
Input Current Limit
Boost Output Voltage
Discharge Peak Current
Operating Systems
Supported
System Requirements
GUI Software
EVB Size (LxW)
MonolithicPower.com
© 2019 MPS. All Rights Reserved.
EVKT-MP2696A Product Brief
MP2696A Evaluation Kit
Specification
4.5V to 6.0V
4.5V to 6.0V
3.60V to 4.45V
500mA to 3600mA
4.45V to 4.8V
100mA to 3000mA
5.05V to 5.225V
5.0A to 6.5A
Windows XP, 7, and later
Minimum 22.2MB free
MP2696A V1.0
6.35cmx6.35cm
