BX-80NR
Read instructions completely before beginning installation.
Optex presents a new concept,
alarmsystem.

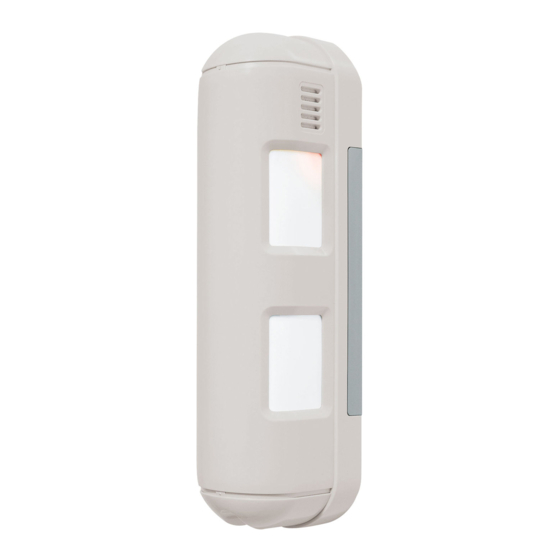

BX-80NR is a passive infrared detector which detects the infrared heat energy that is emitted by humans and is designed with this concept.
Features
1.Low current draw
2.Battery saving circuit
3.Operates on wide range of power
4.Back box for a wireless transmitter
5.High offset mounting design
6.Limited detection range function
7.Size judging function
8.Waterproof
9.Double conductive shielding
1. SAFETY-RELATED PRECAUTIONS
2. DETECTION AREA
1. SAFETY-RELATED PRECAUTIONS
Before installation, make sure to read this instruction manual carefully for safe and effective product operation.
WARNING
This icon denotes a situation involving the risk of serious injury or even death, if the warning given is ignored.
CAUTION
This icon denotes a situation involving the risk of serious injury or damage to property if the warning given is ignored.
This icon indicates actions to be avoid. Details of the actions to be avoided are written beside or near icon.
( The icon on the left indicates that the product must not be dissembled )
Never use this product for any applications except as stated above or unexpected accidents can occur.
Never attempt to connect the terminals to units which require higher power supply or current draw than its rating.
WARNING
It increases the risk of fire or damage to the product.
Never attempt to disassemble or modify the product, which increases the risk of fire or damage of the product.
Avoid applying water directly from buckets, houses, or otherwise splashing water directly onto the product. It increases
CAUTION
the risk of damaging the product.
2. DETECTION AREA
The horizontal and vertical angle of detection areas are inde-
pendently adjustable on both the right and left sides of the
detector. (See section 7. AREA SETUP)
IMPORTANT
This product detects temperature differences between the
moving target and the background temperature of the detec-
tion area. So, if the target does not move, the detector can
not detect it. Additionally, the temperature of the target may
affect the detector's maximum detection range.
, which protects a building's exterior by detecting intruders before an entry is attempted. In addition to signaling an
: 15uA(standby)
: Alarm signal is generated only once with in a selected finer period, 5 or 120 seconds.
: 3-9V lithium battery or alkaline battery.
: Back box can conceal a wireless transmitter. (Max. W40mm H126mm D50mm)
: Avoid areas with unwanted objects.(80mm)
: The detection range of the BX-80NR can be limited to avoid detecting unwanted objects. By limiting
the detection range, false alarms due to unwanted movement (i.e. cars, persons or animals outside of
the protected area) can be reduced.
: BX-80NR is designed to discriminate between large and small objects. By utilizing this ability, false
alarms due to small animals can be reduced.
: IP rating
IP 55
: This patent listed shielding greatly reduces the risk of false alarms due to car headlights,
sunlight and other ambient light sources.
C O N T E N T S
The angles of all detection fingers are
adjustable horizontally 0 or 3 degrees.
10. SPECIFICATIONS & DIMENSIONS
Top View
(ft)
40
30
20
10
0
(m)
12
10
5
0
[ POSITION A ]
(ft)
(m)
3.3 1
(m)
12
10
5
0
(ft) 40
30
20
10
0
[ POSITION B ]
(ft) (m)
3.3
1
0
0
[ POSITION C ]
(ft)
(m)
3.3
1
0
0
[ POSITION D ]
(ft) (m)
3.3 1
0
0
INSTALLATION INSTRUCTIONS
20
30
40
(ft)
10
5
10
12
(m)
The angles of all detection areas are
adjustable horizontally 0 or 3 degrees.
Side view of detection area:12m(40ft.)(single side)
5
10
12
(m)
20
30
10
40
(ft)
Side view of detection area:8m(26.7ft.)(single side)
5
10
12
(m)
20
30
10
40
(ft)
Side view of detection area:5m(16.7ft.)(single side)
(m)
5
10
12
20
30
40 (ft)
10
Side view of detection area:2m(6.7ft.)(single side)
5
10
12
(m)
20
30
(ft)
10
40
5913801
