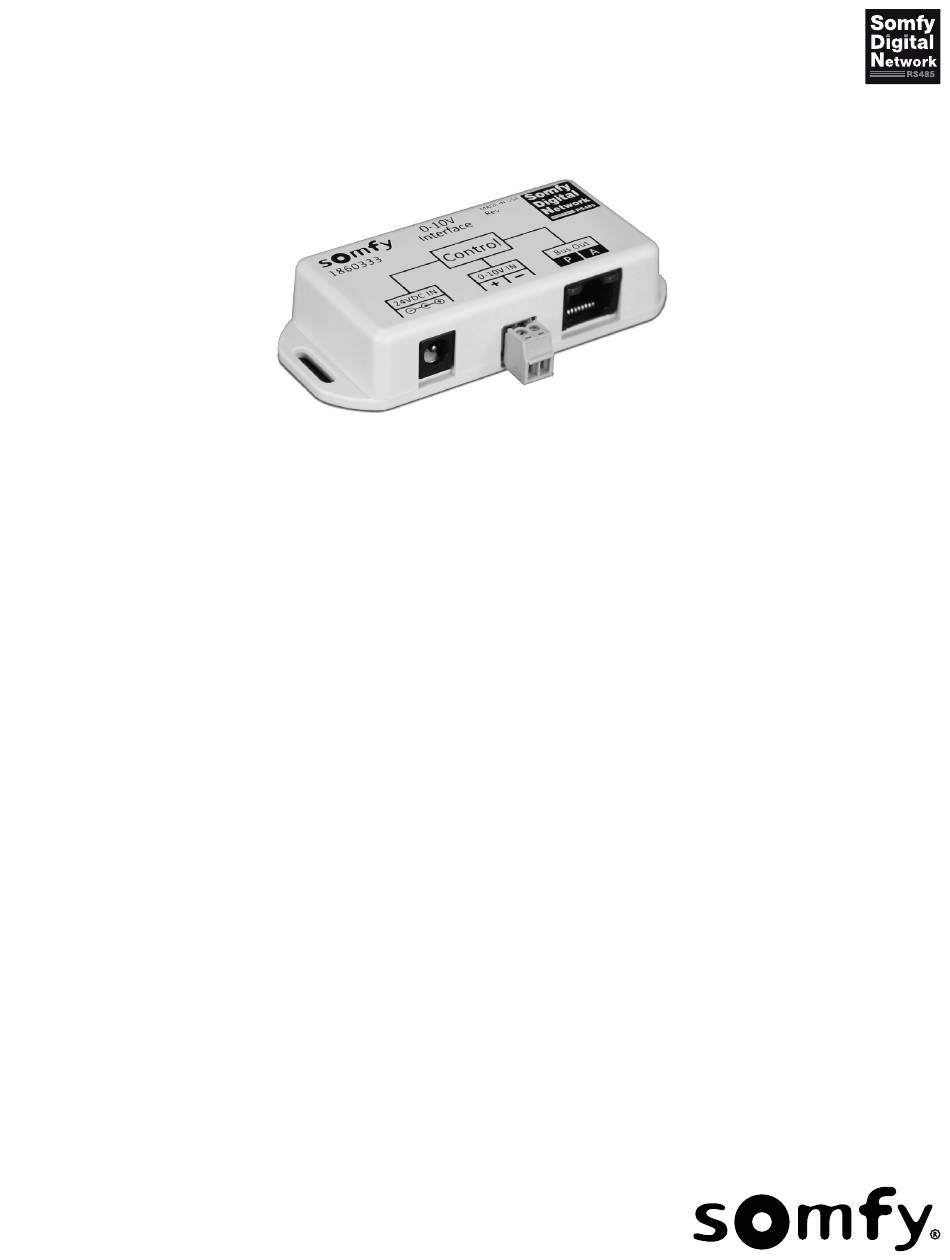

- Page 1 0-10V Interface Part Number: 1860333...

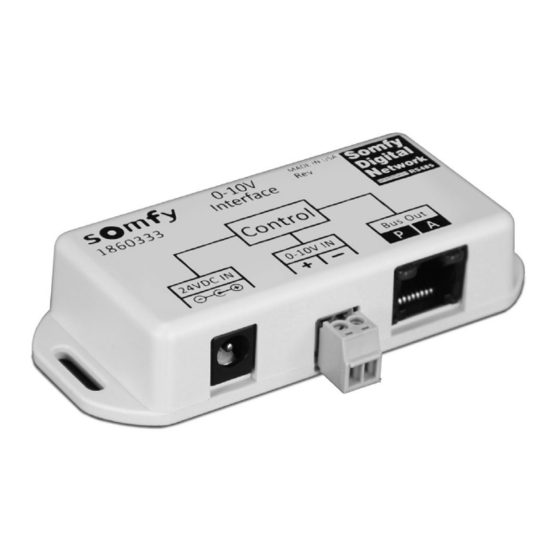

- Page 2 SDN 0-10V Interface The SDN 0-10V Interface control is a device that will accept industry standard 0-10V input and convert it to a Somfy Digital Network™ (SDN) signal. The SDN signal will drive a Somfy RS485 motor to a percentage of opening or closing based upon the 0-10V input level and the setting of the reverse push button.
- Page 3 SDN 0-10V Interface FIGURE 1. CONNECTION INFORMATION CONNECTION DIAGRAM The diagram shown below is meant for illustrative purposes to show the connections from product to product. This device could be used in other configurations than shown below. For specification information on individual products, see related product information.
- Page 4 New Jersey DESCRIPTION PART NUMBER SDN 0-10V Interface (w/ +24V power supply) 121 Herrod Blvd. 1860333 Dayton, NJ 08810 P: (800) 22-SOMFY (76639) . F: (609) 395-1776 Data Hub 1870262 SDN Mini Data Hub 1870277 Florida 2.5 ft.: 9018541 6100 Broken Sound Pkwy.
