- Page 1 TMD-10 Dual Temperature Meter Users Manual For detailed specifications and ordering info go to www.TestEquipmentDepot.com...
- Page 2 TMD-10 Dual Temperature Meter Users Manual TMD10_Rev001 © 2008 Amprobe Test Tools. All rights reserved.
- Page 3 Amprobe’s behalf. To obtain service during the warranty period, return the product with proof of purchase to an authorized Amprobe Test Tools Service Center or to an Amprobe dealer or distributor. See Repair Section for details. This warranty is your only remedy . All other warranties - whether express, implied or statutory - including implied warranties of fitness for a particular purpose or merchantability, are hereby excluded.

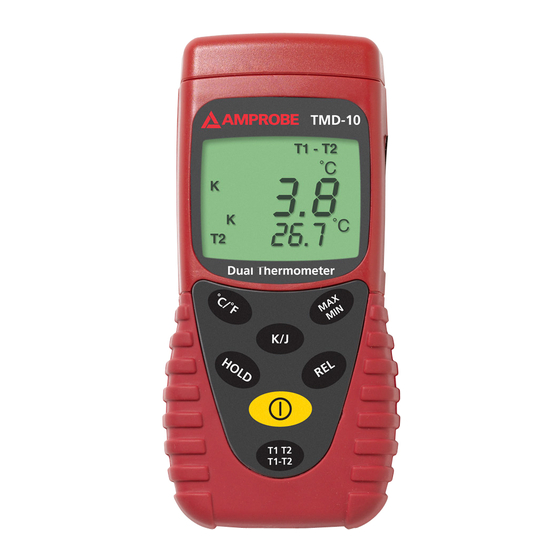

- Page 4 N MAX T1- T2 HOLD ▲ ▼ T1 T2 T1-T2 ➊ ➏ T1 and T2 thermocouple inputs T1, T2, T1-T2 TMD-10 ➋ ➐ RELative function OFS, Offset Thermocouple ➌ °C / °F temperature scales function ➍ Data HOLD ➑ K / J thermocouple types APO, turns off Auto Power Off ➒...
-
Page 5: Table Of Contents
TMD-10 Dual Temperature Meter CoNTENTS Symbols ......................... 5 Unpacking and Inspection ................... 5 Introduction ......................5 Operation ......................5 °C / °F ....................... 6 MAX, MIN and AVG ..................6 K / J ........................6 HOLD ......................6 REL ........................6 T1 T2 / T1-T2 .................... -
Page 6: Symbols
If any of the items are damaged or missing, return the complete package to the place of purchase for an exchange. INTRoDUCTIoN The TMD-10 is a dual input temperature measurement meter using Type K or Type J thermocouples. oPERATIoN Press the �... -
Page 7: C / °F
Press the key to change from Celsius (°C) to Fahrenheit (°F) temperature scale. This setting can not be changed when in the HOLD mode. The TMD-10 will auto save the temperature scale setting during shutdown. MAX, MIN and AVg button to start the recording of the maximum, minimum, Press the and average of all readings after the function is enabled. -
Page 8: T1 T2 / T1-T2
Auto Power off (APo) The TMD-10 powers down automatically after approximately 15 minutes of inactivity to save battery life. Press the � button to turn the TMD-10 ON. You can disable Auto Power Off by pressing the button > 1 second after the TMD-10 is ON. -
Page 9: Specifications
SPECIFICATIoNS general Display: Dual 5-digit LCD displays Overrange indication: “OL” stands for positive temperature “-OL” stands for negative temperature. Low battery: the “�"sign will appear while battery is low. Power Supply: 9V NEDA 1604, IEC 6F22, JIS 006P battery. Battery life: approx. 200 hours. Auto power off: approx. -
Page 10: Maintenance And Repair
1. Turn off the meter and slide out the battery cover. Replace the battery with a NEDA type 1604 or equivalent 9V alkaline battery. Replace the cover. 2. Remove battery when the TMD-10 is not used for extended period. OPEN...
