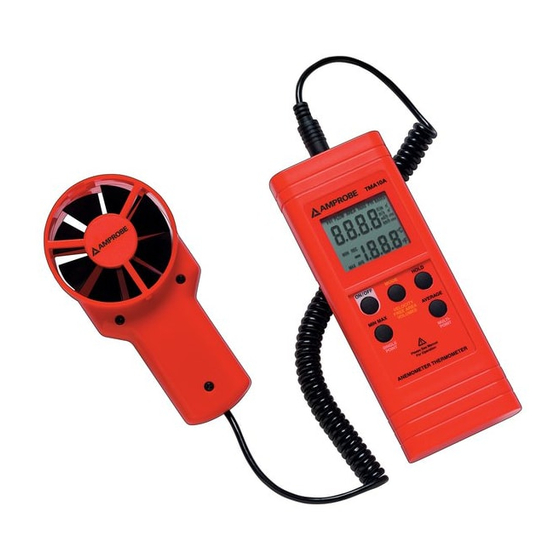

- Page 1 TMA10A Anemometer User Manual ENG FRE SPA GER ITA GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 2 TMA10A Anemometer User Manual 6/2018, 6011186 Rev B ©2018 Amprobe All rights reserved. Printed in Taiwan GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 3 Please read the warranty statement and check your battery before requesting repair. During the warranty period, any defective test tool can be returned to your Amprobe distributor for an exchange for the same or like product. Please check the “Where to Buy” section on amprobe.com for a list of distributors near you.
-
Page 4: Table Of Contents
TMA10A Anemometer/Thermometer Contents USING THE PUSHBUTTONS ............. 2 DISPLAY INDICATORS .............. 3 MAKING MEASUREMENTS ............. 4 Air Velocity Measurements ..........4 Air Flow Measurements ............. 4 Single Point MIN/MAX/AVG Recording ......5 Multi Point Average Recording ......... 5 Data Hold Feature .............. 6 Changing the Units of Measure ......... -
Page 5: Using The Pushbuttons
USING THE PUSHBUTTONS ON /OFF MODE HOLD VELOCITY FREE AREA MIN MAX AVERAGE VOLUMES SINGLE MULTI- POINT POINT Please See Manual For Operation ANEMOMETER THERMOMETER Button Description ON/OFF Turns the meter on and off. MODE Toggle between velocity, free area, and volume. HOLD Captures a reading. -
Page 6: Display Indicators
DISPLAY INDICATORS Vel Air velocity measurement. FLOW Air flow/air volumen. AREA Free area default setting. Hold Freezes the reading. knots 1850 meters per hour. ft/m Feet per minute. ft2 Square feet. m/s Meters per second. m2 Square meters. mil/h Miles per hour. cfm Cubic feet per minute. -
Page 7: Making Measurements
MAKING MEASUREMENTS Air Velocity Measurements Air velocity and temperature measurements can be displayed on this meter in the following units of measure: ft/m (feet per minute) or m/s (meters per second) for air velocity and °F or °C for temperature. 1. -
Page 8: Single Point Min/Max/Avg Recording
Single Point MIN/MAX/AVG Recording This meter can record and display the lowest (MIN), highest (MAX), and average (AVG) air velocity, air flow, and temperature readings. 1. Follow the instructions for starting air velocity or air flow measurements detailed on the previous page. 2. -
Page 9: Data Hold Feature
5. Repeat this process until up to 8 measurements have been taken. 6. Press the AVERAGE button to display the average of all the measurements. 7. To display the average air flow, press the MODE button to enter the area, then MODE again for air flow. 8. -
Page 10: Auto Power Off
AUTO POWER OFF The TMA10A Anemometer turns off automatically after 20 minutes to conserve battery power. Press the ON/OFF and HOLD buttons to disable the Auto Power Off feature. ERROR MESSAGE DISPLAY If the sensor is not connected to the meter or if the sensor is inoperable, the meter beeps, the error message "E6"... -
Page 11: Specifications
SPECIFICATIONS Display Dual 4-digit (9999 count) LCD Air Velocity: ft/min (feet per minute); m/s (meters per second) Measurement units Air Flow: CMS (m3/sec) and CFM (ft /min); Temp: °C and °F Data hold Freezes displayed reading Air velocity/flow sensor: Conventional Sensors angled vane arms with low-friction ball bearing.
