- Page 1 Operating Instructions Log splitter 8 D1010394 - Issue - 2007/42 Copyright by Posch Gesellschaft m. b. H., Made in Austria...
-
Page 2: Manufacturer
Machine number:................Serial number:..................POSCH Austria: 8430 Leibnitz, Paul-Anton-Keller-Strasse 40, telephone: +43 (0) 3452/82954, fax: +43 (0) 3452/82954-53, e-mail: leibnitz@posch.com POSCH Germany: 84149 Velden/Vils, Preysingallee 19, telephone: +49 (0) 8742/2081, fax: +49 (0) 8742/2083, e-mail: velden@posch.com... -
Page 3: Table Of Contents
Contents Contents Manufacturer Foreword Copyright notice Liability for defects Reservations Definitions Safety information Explanation of symbols General safety information Safety instructions for log splitter Noise Remaining risks Proper use General Scope Description The most important components of the machine Labels and their meanings Set-up Start-up Driven by electric motor (type E) - Page 4 Contents Additional equipment 10.1 Splitting cross 10.2 Special cutter with rollers 10.3 Log table, large 10.4 Wheelset 400 Troubleshooting Technical data Service EC Declaration of Conformity...
-
Page 5: Foreword
Foreword Foreword Thank you for buying our product. This machine has been built in conformity with applicable European standards and regulations. These operating instructions explain how to operate the machine safely and efficiently and how to maintain it. Any person entrusted with the transport, installation, commissioning, operation or maintenance of the machine must have read and understood: ▪... - Page 6 Foreword The operator is the party which operates the machine and uses it for its intended purpose or causes it to be operated by suitable, trained personnel. Operating personnel The operating personnel (operators) are those entrusted by the operator to operate the machine.
-
Page 7: Safety Information
Safety information Safety information Explanation of symbols The following symbols and instructions warn against possible injuries or damage to property or are intended to assist you in your work. DANGER Hazard warning This symbol appears next to instructions relating to safety at work wherever a hazard to life and limb exists if the instructions are not complied with. -
Page 8: General Safety Information
Never work without the protective guards in place. Switch off the machine's drive unit before carrying out any adjustments. Use only original POSCH spare parts. Work on electrical equipment must only be carried out by qualified electricians. Never use damaged cables. -
Page 9: Remaining Risks
It is up to the operating personnel to ensure that work is carried out safely. Proper use The machine - Log splitter 8 - is designed exclusively for splitting logs with a maximum length of 55 cm . -
Page 10: General

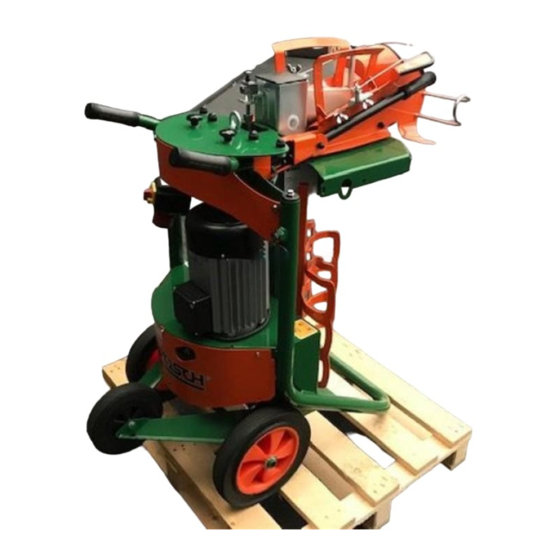

*..The item number of the machine is stamped on its identification plate. Description The machine - Log splitter 8 - is designed exclusively for splitting logs with a maximum length of 55 cm . The splitter is driven hydraulically; the hydraulic system is driven by an electric motor. -
Page 11: The Most Important Components Of The Machine
General The most important components of the machine Table Wheel Splitting blade Electric motor Log retaining tip Switch/plug Spring clamp Ventilation screw Clamping jaw Transport handles Two-hand controller Shut-off rod Pressure plate Blade guide Identification plate Clamping unit... -
Page 12: Labels And Their Meanings
General Labels and their meanings Only work alone. Do not carry out any repair, set-up, maintenance or cleaning work unless the drive unit is switched off and the tool is at rest. Wear protective gloves. Wear safety shoes. Wear goggles and ear protection. Caution, moving parts. -
Page 13: Set-Up
General Phase inverter Set-up Ensure the machine is stable before starting it. Set up the machine on a level, firm and clear work surface. The machine must be placed directly on the ground. Do not place wooden boards, flat pieces of metal etc. -
Page 14: Start-Up
Start-up Start-up Check the oil level before start-up [⇨ 19]! Driven by electric motor (type E) 5.1.1 Machines with 230 V motor The machine must only be operated on a 30mA FI protective circuit. Work on electrical equipment must only be carried out by qualified electricians. 1. - Page 15 Start-up A tight plug connection can rip the CEE plug out of the switch housing. ▪ This can be remedied using standard plugs and a silicone spray. Any such damage to the switch is not covered by the guarantee. The pump will be damaged if the motor rotates in the wrong direction.
-
Page 16: Operation
Operation Operation At outdoor temperatures below 0°C, let the machine idle for approximately 5 minutes to allow the hydraulic system to reach the correct operating temperature. Splitting Place the log vertically on the pressure plate between the two handles underneath the splitting blade. -
Page 17: Switching Off The Machine
Operation Clamping unit Shut-off rod The log length is dictated by recesses in the shut-off rod: ▪ Length 20 cm, 25 cm, 33 cm 1. Retract the guide tube. 2. Turn off the machine. 3. Press the clamping unit and move it to the desired shut-off position. Then allow the clamping unit to engage in the recess in the shut-off rod. -
Page 18: Transport
Transport Transport The splitting blade must be retracted before transporting the machine. Make sure the cut-off rod is also fully retracted. The machine may only be transported in the vertical position or leaning backwards. For horizontal transportation, the ventilation screw must be replaced with a G1/2” screw plug. Moving by hand Grip the machine by the transport handles, tilt it towards you and then move it. -
Page 19: Checks
Checks Checks Before carrying out checks on the machine it is absolutely essential to switch off the drive unit and, in the case of machines driven by an electric motor, to disconnect the machine from the electricity supply. Screw fittings Tighten all screws and nuts after the first hour of operation. -
Page 20: Maintenance
Never leave the machine running unattended. Use only original POSCH spare parts. Never work without the protective guards in place. Work on electrical equipment must only be carried out by qualified electricians. -
Page 21: Cleaning
Maintenance Ventilation screw Oil sight glass Frame 1. Retract the splitting blade before changing the oil. 2. Remove the two ventilation screws from the frame, tilt the machine over and allow the oil to flow into a collecting vessel. 3. Set the machine upright again and fill with new oil. –... -
Page 22: Additional Equipment
Additional equipment Additional equipment 10.1 Splitting cross During the splitting process the log is split into four parts. For uniform billets with maximum log diameter of 30-35 cm. Not suitable for knotty or deformed wood. Splitting cross Splitting blade Retaining tip Fitting: 1. -
Page 23: Log Table, Large
Additional equipment Special cutter with rollers Retaining tip Splitting blade Fitting: 1. Extend the splitting blade approx. 30 cm and switch off the machine. 2. Pull the retaining tip downwards out of the splitting blade. 3. Push the special blade with rollers over the splitting blade. 4. - Page 24 Additional equipment Fitting: 1. Screw the wheel mount on to the frame. 2. Slide the wheel on to the wheel mount. 3. Place the washer over the wheel and secure with the split-pin.
-
Page 25: Troubleshooting
Troubleshooting Troubleshooting Fault Possible cause Remedy Electric motor fails to Faulty power supply Have the cable [⇨ 14] start or switches off cable examined by a specialist frequently Fuses keep tripping - Use correctly-rated incorrectly rated fuse for fuses power supply cable Motor circuit breaker Use heavier power tripped... -
Page 26: Technical Data
Technical data Technical data Type E2.2 Drive Drive type Electric motor Electric motor Electric motor Power Voltage Fuse Motor speed 2880 2890 1440 Splitting system Splitting force Cylinder stroke Max. pressure Max. log length Max. log diameter Forward speed cm/s Return speed cm/s 25,9... -
Page 27: Service
Service Service POSCH - Product To order spare parts for your - Log splitter 8 - machine, please contact your local dealer directly. -
Page 28: Ec Declaration Of Conformity
EC Directive. This Declaration is not valid for any modifications to the machine which are not approved by us. Log splitter 8 This machine was built in conformity with the following standards: ▪ EC Machinery Directive 98/37/EC ▪... - Page 32 Your Posch-Dealer...
