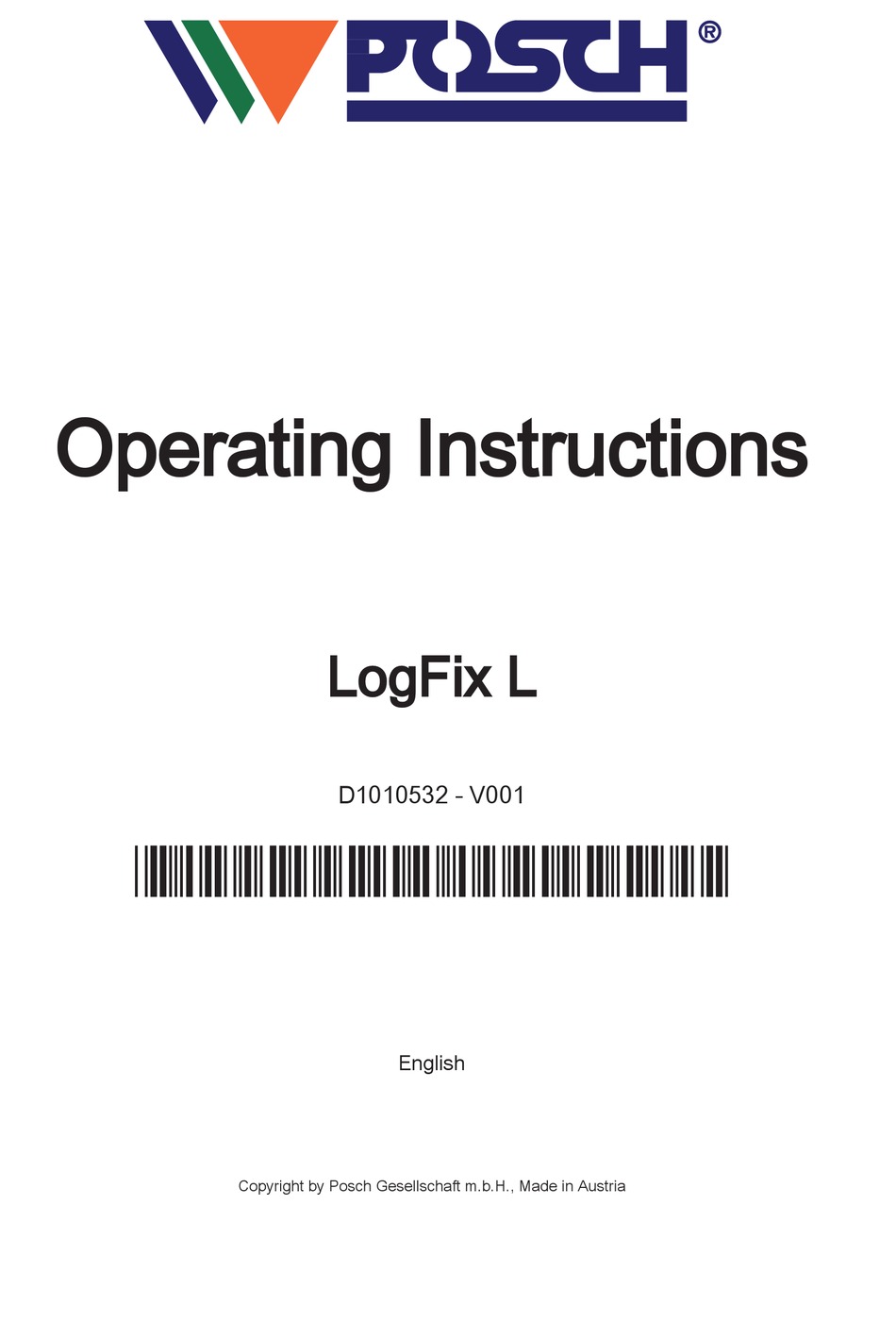

- Page 1 Operating Instructions LogFix L D1010532 - V001 *D1010532-V001* English Copyright by Posch Gesellschaft m.b.H., Made in Austria...
- Page 2 Machine number:................Serial number:..................POSCH Austria: 8430 Leibnitz, Paul-Anton-Keller-Strasse 40, telephone: +43 (0) 3452/82954, fax: +43 (0) 3452/82954-53, e-mail: leibnitz@posch.com POSCH Germany: 84149 Velden/Vils, Preysingallee 19, telephone: +49 (0) 8742/2081, fax: +49 (0) 8742/2083, e-mail: velden@posch.com...
-
Page 3: Table Of Contents
Contents Contents Foreword Copyright notice Liability for defects Reservations Definitions Operating instructions Safety information Explanation of symbols General safety information Safety information for packer Noise Remaining risks Proper use Incorrect use General Scope Description Major machine components Stickers and their meaning Set-up Set-up procedure Start-up... - Page 4 Contents Oil changing Cleaning Special equipment 10.1 Extension by 4 rollers (option L) 10.2 Continuously adjustable filter width (option V) 10.3 Hopper for refilling (option T) 10.4 Access guard (Option Z) Additional equipment 11.1 Frame elevation 11.2 Conveyor belt chute 11.3 Firewood chute 11.4...
-
Page 5: Foreword
Foreword Foreword Thank you for buying our product. This machine has been built in conformity with applicable European standards and regulations. These operating instructions explain how to operate the machine safely and efficiently and how to maintain it. Any person entrusted with the transport, installation, commissioning, operation or maintenance of the machine must have read and understood: ▪... -
Page 6: Operating Instructions
Foreword The operating personnel (operators) are those entrusted by the operator to operate the machine. Technical personnel Technical personnel are persons entrusted by the operator of the machine with special tasks such as installation, set-up, maintenance and troubleshooting. Electrician An electrician is a person who, by virtue of his specialist training, has knowledge of electrical systems, standards and regulations and is able to identify and prevent possible hazards. -
Page 7: Safety Information
Safety information Safety information Explanation of symbols The following symbols and instructions in this manual provide warnings about possible personal injury or property damage or give useful information about working with the machine. Warning about danger zones Instruction regarding safe working, where non-compliance entails the risk of serious or fatal injury. -
Page 8: General Safety Information
Never leave the machine running unattended. Switch off the machine's drive unit before carrying out any adjustments. Only use original - POSCH - spare parts. Do not modify or tamper with the machine. Work on electrical equipment must only be carried out by qualified electricians. -
Page 9: Safety Information For Packer
It is up to the operating personnel to ensure that work is carried out safely. Proper use The LogFix L machine is designed exclusively for filtering firewood with a maximum length of 50 cm. Proper use also includes adherence to the prescribed operating, inspection, maintenance and servicing conditions and particular attention should also be paid to the safety instructions contained in the user manual. -
Page 10: General

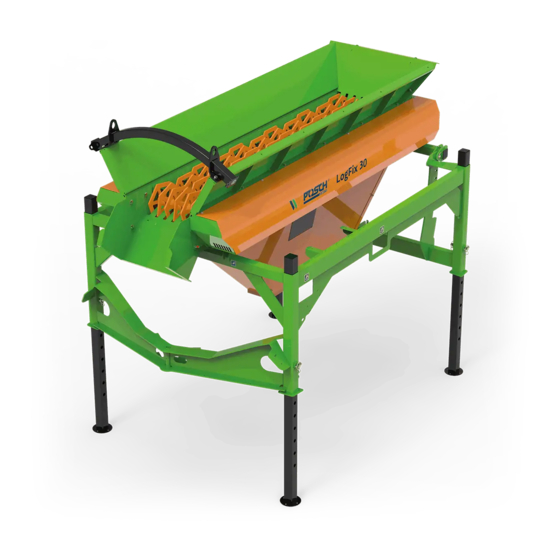

F0004085 Attachable hopper (retrofitting - Option T) Description The LogFix L is used to filter firewood billets. The firewood filter reliably removes contaminants, such as loose chips, bark or pieces of wood, from split and cut billets. This firewood filter can be used with any machine that has a conveyor belt. -
Page 11: Major Machine Components
General Major machine components Transfer plate Radio remote control Rollers Hopper Geared motor Adjuster foot Trough Main pillar Switch/plug Base frame Signal light... -
Page 12: Stickers And Their Meaning
General Stickers and their meaning Danger zone Z2001246 Always read the user manual before operating the machine Z2040010 Rotational direction of motor Z2001220 Lifting point for forklift Z2001311 Phase inverter Z205 0010 Lubrication point Z2050400... -
Page 13: Set-Up
Set-up Set-up Ensure the machine is stable before starting it. Set up the machine on a level, firm and clear work surface. The machine must be placed directly on the ground. Do not place wooden boards, flat pieces of metal etc. underneath it. The machine must not be set up under an overhead electrical power line. - Page 14 Set-up ▪ Resecure the hexagon bolts. ▪ Lower the machine. This yields a transfer height of 210 cm +/- 30 cm . Remove the eye bolts before start-up; these are only required for delivery or transport (crane). ▪ Adjust the machine horizontally with the adjuster feet (if necessary). ▪...
-
Page 15: Start-Up
Start-up Start-up Check the machine for potential damage prior to every use. ▪ When doing so, pay particular attention to inspection activities in section "Checks [➙ 20]". Before starting to operate the machine, please check that the protective and safety systems are working and also the hydraulic hoses and oil level. - Page 16 Start-up Green press button (ON) Red press button (OFF) Note the rotation direction of the electric motor (see arrow on motor). If the motor is rotating in the wrong direction: A phase inverter in the plug controls the direction of rotation of the motor (press in the disc in the plug with a screwdriver and turn 180˚).
-
Page 17: Driven By The Tractor's Hydraulic System (Type Ps)
Start-up 5.1.4 Signal light (using RC) Signal light - green Signal light - red The signal light enables proper monitoring of the operating status of the machine. When the signal light is green, the machine is switched on. The red signal light flashes once the motor protection has tripped (e.g. in the case of overload). -
Page 18: Operation
Operation Operation At outdoor temperatures below 0°C, let the machine idle for approximately five minutes to allow the hydraulic system to reach the correct operating temperature (the hydraulic pipes will then be warm to the touch). Work operation Only one person may operate the machine at a time. Ensure that no other people are in the vicinity of the machine. -
Page 19: Put Out Of Operation
Put out of operation Put out of operation Before switching off the machine, depressurise all hydraulic functions. Position all controls in neutral or switch these off. Put drives out of operation Driven by electric motor (Type E) Type E2.2 ▪ Press the red pushbutton. Drive with 230V: ▪... -
Page 20: Checks
Checks Checks Before control work is carried out on the machine, it is vital that the drive is switched off and secured to ensure that it cannot be switched on accidentally or started up by unauthorised persons. Disconnect the machine from the mains. ▪... -
Page 21: Maintenance
Work on electrical equipment must only be carried out by qualified electricians. Never work without the protective guards in place. Only use original - POSCH - spare parts. Lubrication Dispose of oily and greasy parts and oil residues in accordance with legal regulations. -
Page 22: Cleaning
Maintenance 9.2.1 Changing the transmission oil The transmission is lubricated for life using a synthetic transmission oil. If the oil has to be changed or topped up, note that only synthetic transmission oil to ISO VG 320 may be used! Cleaning Before cleaning work is carried out on the machine, it is vital that the drive is switched off and secured to ensure that it cannot be switched on accidentally or started up by... -
Page 23: Special Equipment
Special equipment Special equipment 10.1 Extension by 4 rollers (option L) Rollers (existing) additional rollers Extension of the filter area by 4 rollers (approx. 80 cm) with filter width of 30 mm for better transfer (e.g. trailer). -
Page 24: Continuously Adjustable Filter Width (Option V)
Special equipment 10.2 Continuously adjustable filter width (option V) Roller Threaded shaft Locking pin Lubrication nipple Self-locking hexagon nut With the adjustable width (X), the desired filter width of 30-45 mm can be set with ease. Factory settings: 38 mm Before carrying out any changes on the machine, the drive unit MUST be switched off! Disconnect the machine from the mains. -
Page 25: Hopper For Refilling (Option T)
Special equipment 10.3 Hopper for refilling (option T) Hopper for refilling Hopper for refilling with dimensions 195 x 180 cm. -
Page 26: Access Guard (Option Z)
Special equipment 10.4 Access guard (Option Z) Access doors Handle The hopper is missing from the access guard; therefore, there is the option of filling a PackFix drum or a similar drum. ▪ Once the access doors have been opened, the machine switches off. ▪... -
Page 27: Additional Equipment
Additional equipment Additional equipment 11.1 Frame elevation Hexagon nut – Adjuster foot Connecting plate Main pillar Frame elevation Adjuster foot The frame elevation offers even more space beneath the firewood filter and a larger extraction chute height. The higher position is 30 cm, which yields a filling height of 235-295 cm and a transfer height of 210-270 cm (225-285 cm for option L). -
Page 28: Conveyor Belt Chute
Additional equipment 11.2 Conveyor belt chute Conveyor belt chute Base frame Transfer plate Conveyor belt chute for transfer (transfer height 1 m). Mounting: ▪ Attach the conveyor belt chute to the transfer plate and to the base frame using the bolts provided. -
Page 29: Transfer Flap
Additional equipment ▪ Tilt the firewood chute downwards. 11.4 Transfer flap Support plate Swivelling lever unit Transfer plate Connecting rod Transfer flap Base frame Bearing ring Transfer flap for transfer to the PackFix Hydro packaging machine. The transfer flap can be folded up with the help of the swivelling lever. Mounting: ▪... -
Page 30: Big Bag Hooking System
Additional equipment 11.5 Big Bag hooking system Hooking system Base frame Hooking system for Big Bag sacks, adjustable in height and width. Mounting: ▪ Attach the hooking system to the base frame using the bolts provided. -
Page 31: Troubleshooting
Troubleshooting Troubleshooting Before rectifying faults on the machine, it is vital that the drive is switched off and secured to ensure that it cannot be switched on accidentally or started up by unauthorised persons. Disconnect the machine from the mains. ▪... -
Page 32: Technical Data
Technical data Technical data Type E2.2 - 400 V E2.2 - 230 V Drive Drive type Electric motor Electric motor Tractor hydraulics Output 2.2 S6 ** 2.2 S6 ** Voltage Fusing Filling drum Diameter Height Max. log length Fill amount lcm *** Dimensions * Length... -
Page 33: Service
Service Service POSCH- Product To order spare parts for your machine please contact your local dealer directly. If you require a replacement parts list for your machine, you can download this at any time by entering the serial number at the following link:... -
Page 34: Ec Declaration Of Conformity
What is more, the machine complies with the EC Electromagnetic Compatibility (EMC) Directive 2014/30/EU. This Declaration is not valid for any modifications to the machine which are not approved by us. Firewood filter - LogFix L Item no.: M8045 , M8046 , M8047 Model: RC, Option L, V, T, Z Serial no.:... - Page 36 Your Posch-Dealer...
