MT9TV024IA7XTCH-GEVB
MT9V024 Evaluation Board
User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo 2X system. Test points and
jumpers on the board provide access to clock, I/Os and other
miscellaneous signals.
Features
•
Clock Input
Default − 27 MHz crystal oscillator
♦
Optional Demo 2X controlled MClk
♦
•
Two Wire Serial Interface
Selectable base address
♦
•
Parallel Interface
•
Serial LVDS Interface
•
ROHS Compliant
Block Diagram
© Semiconductor Components Industries, LLC, 2016
July, 2016 − Rev. 0

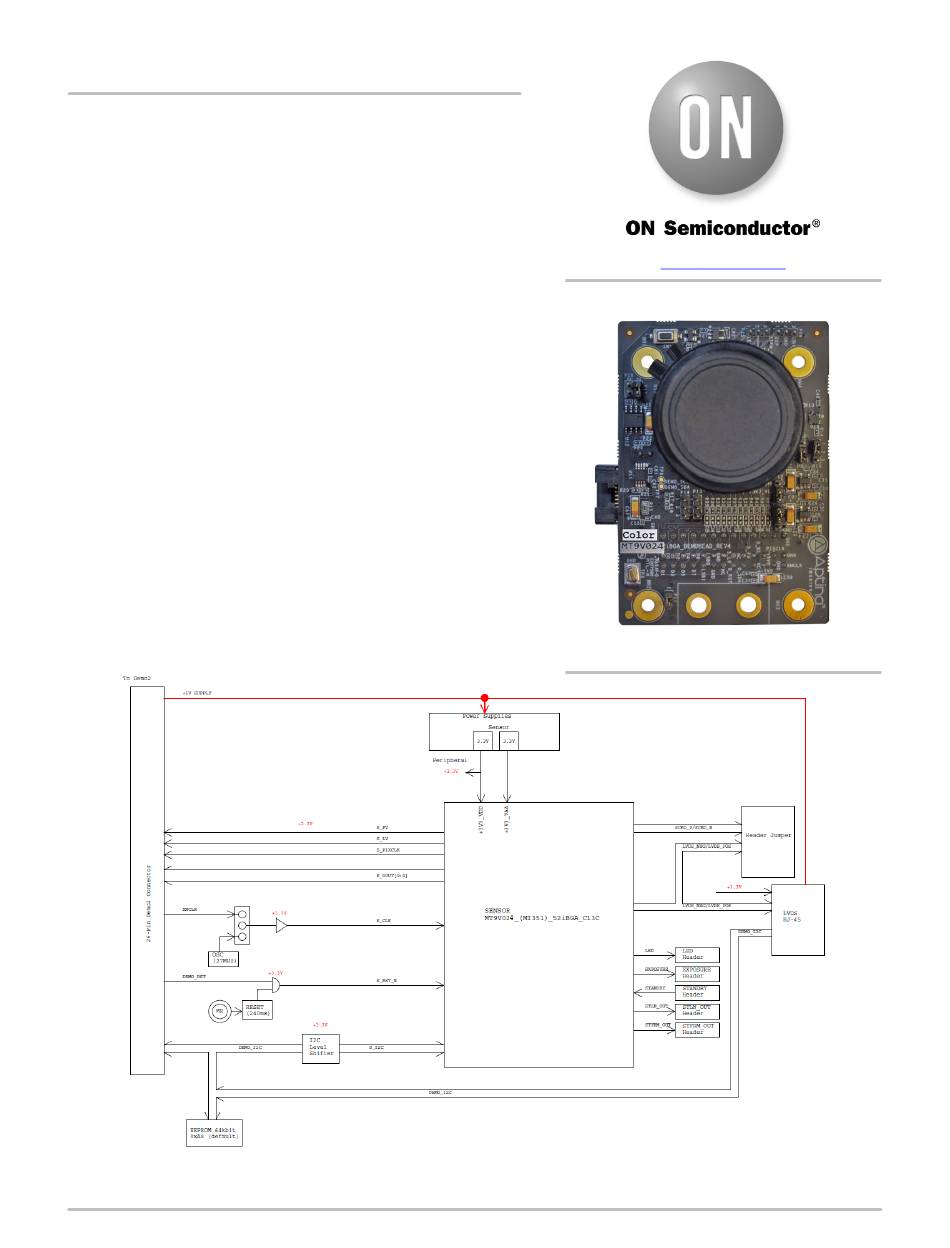

Figure 2. Block Diagram of MT9V024IA7XTCH−GEVB
EVAL BOARD USER'S MANUAL

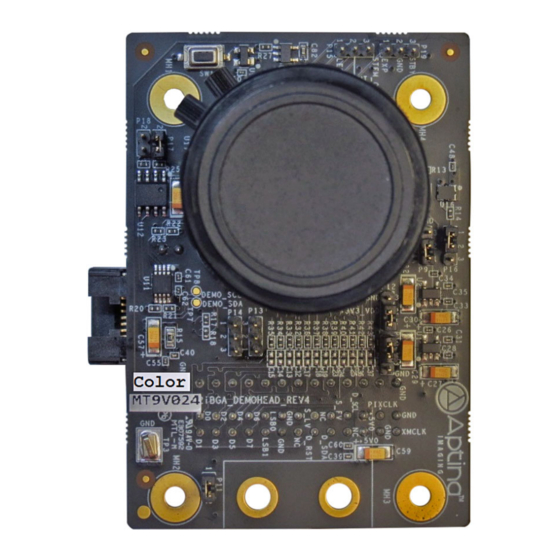

Figure 1. MT9V024 Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2455/D
Advertisement
Table of Contents
Related Manuals for ON Semiconductor MT9TV024IA7XTCH-GEVB
Summary of Contents for ON Semiconductor MT9TV024IA7XTCH-GEVB
- Page 1 Evaluation Board Overview The evaluation boards are designed to demonstrate the features of www.onsemi.com ON Semiconductor’s image sensors products. This headboard is intended to plug directly into the Demo 2X system. Test points and EVAL BOARD USER’S MANUAL jumpers on the board provide access to clock, I/Os and other miscellaneous signals.
- Page 2 MT9TV024IA7XTCH−GEVB Top View EXPOSURE P19 RESET SW1 Sync Mode Sel. P15 EEPROM ADDR Sel P17, P18 +3V3_VAA P9 MCLK P16 +3V3_VDD P12 +3V3 P10 Figure 3. Top View of Evaluation Board − Default Jumpers Bottom View Serial LVDS Connector J1 Baseboard Connector J6 Baseboard Connector J5 Figure 4.
- Page 3 RESET When pushed, 400 ms reset signal will be sent to MT9V022 Interfacing to ON Semiconductor Demo 2X Baseboard The ON Semiconductor Demo 2X baseboard has their respective JP, and insert an ammeter prior to powering a similar 26-pin and 14-pin connector which mate with J5 up the system.
- Page 4 LIMITATIONS OF LIABILITY: ON Semiconductor shall not be liable for any special, consequential, incidental, indirect or punitive damages, including, but not limited to the costs of requalification, delay, loss of profits or goodwill, arising out of or in connection with the board, even if ON Semiconductor is advised of the possibility of such damages. In no event shall ON Semiconductor’s aggregate liability from any obligation arising out of or in connection with the board, under any theory of liability, exceed the purchase price paid for the board, if any.
