MT9TV024IA7XTRH-GEVB
MT9V024 Evaluation Board
User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo 2X system. Test points and
jumpers on the board provide access to clock, I/Os and other
miscellaneous signals.
Features
•
Clock Input
Default − 27 MHz crystal oscillator
♦
Optional Demo 2X controlled MClk
♦
•
Two Wire Serial Interface
Selectable base address
♦
•
Parallel Interface
•
Serial LVDS Interface
•
ROHS Compliant
Block Diagram
© Semiconductor Components Industries, LLC, 2016
July, 2016 − Rev. 0
Figure 2. Block Diagram of MT9V024IA7XTRH−GEVB
EVAL BOARD USER'S MANUAL

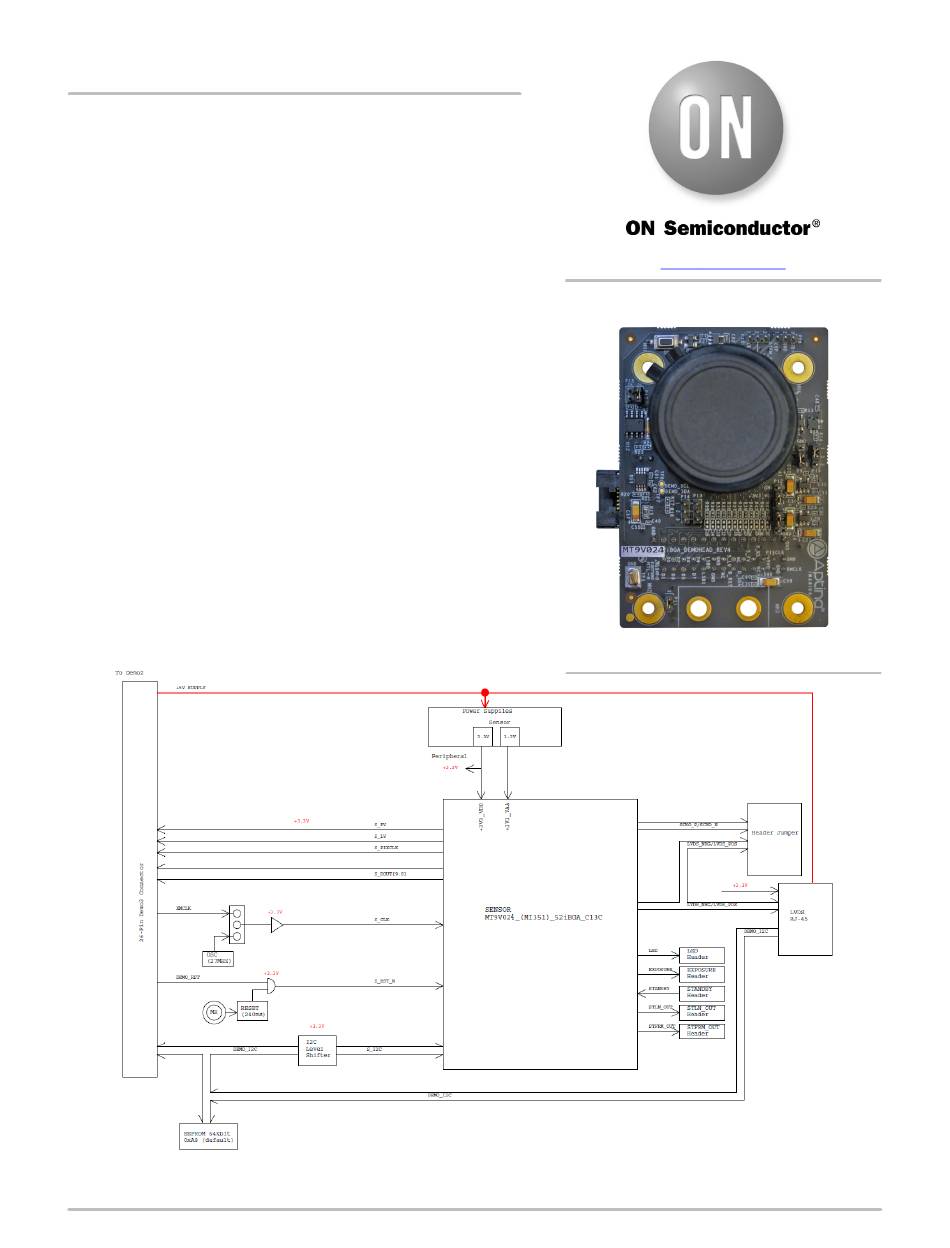

Figure 1. MT9V024 Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2457/D
