MT9TV034C12STCH-GEVB
MT9V034 Evaluation Board
User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo 2X system. Test points and
jumpers on the board provide access to clock, I/Os and other
miscellaneous signals.
Features
Clock Input
Default − 27 MHz crystal oscillator
Optional Demo 2X controlled MClk
Two Wire Serial Interface
Selectable base address
Parallel Interface
Serial LVDS Interface
ROHS Compliant
Block Diagram
© Semiconductor Components Industries, LLC, 2016
July, 2016 − Rev. 0

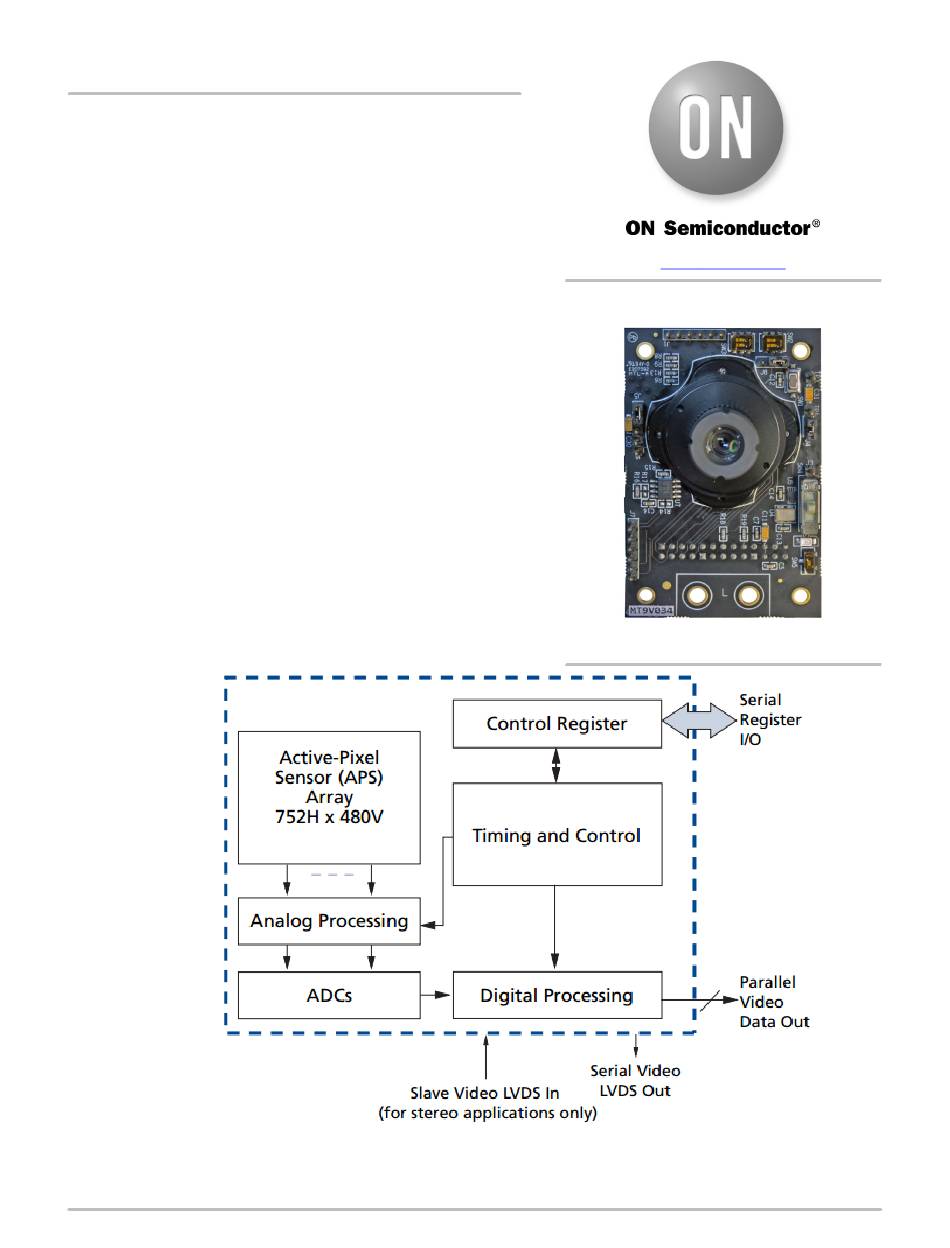

Figure 2. Block Diagram of MT9V034C12STCH−GEVB
EVAL BOARD USER'S MANUAL
Figure 1. MT9V034 Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2460/D

Advertisement

loading
Need help?

Need help?

Do you have a question about the MT9V034 and is the answer not in the manual?

Questions and answers

Summary of Contents for ON Semiconductor MT9V034

  • Page 1 Evaluation Board Overview The evaluation boards are designed to demonstrate the features of www.onsemi.com ON Semiconductor’s image sensors products. This headboard is intended to plug directly into the Demo 2X system. Test points and EVAL BOARD USER’S MANUAL jumpers on the board provide access to clock, I/Os and other miscellaneous signals.
  • Page 2 MT9TV034C12STCH−GEVB Top View Config. J1 STBY/OE_N SW2 RST_SELECT J8 RESET SW1 SAADR SW3 +3V3_VAA J5 +3V3_VDD J4 EXTCLK J3 CLK_SELECT SW1 ON_LED SW5 Figure 3. Top View of Evaluation Board − Default Jumpers Bottom View LVDS Connector U3 Baseboard Connector J2 Figure 4.
  • Page 3 MT9TV034C12STCH−GEVB Jumper Pin Locations The jumpers on headboards start with Pin 1 on the leftmost side of the pin. Grouped jumpers increase in pin size with each jumper added. Pin 1 Pins 1−4 Figure 5. Pin Locations for a Single Jumper. Pin 1 is Located at the Leftmost Side and Increases as it Moves to the Right ADR0 ADR1...
  • Page 4 On (Default) Connects LED indicator to +VDD_BUS Turn off LED indicator Interfacing to ON Semiconductor Demo 2X Baseboard The ON Semiconductor Demo 2X baseboard has headboard. The four mounting holes secure the baseboard a similar 26-pin connector which mates with J2 of the and the headboard with spacers and screws.
  • Page 5: Technical Support

    onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf.
