MT9TV034C12STCH-GEVB
MT9V034 Evaluation Board
User's Manual

Evaluation Board Overview

The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo 2X system. Test points and
jumpers on the board provide access to clock, I/Os and other
miscellaneous signals.

Features

Clock Input
Default − 27 MHz crystal oscillator
Optional Demo 2X controlled MClk
Two Wire Serial Interface
Selectable base address
Parallel Interface
Serial LVDS Interface
ROHS Compliant
Block Diagram
© Semiconductor Components Industries, LLC, 2016
July, 2016 − Rev. 0

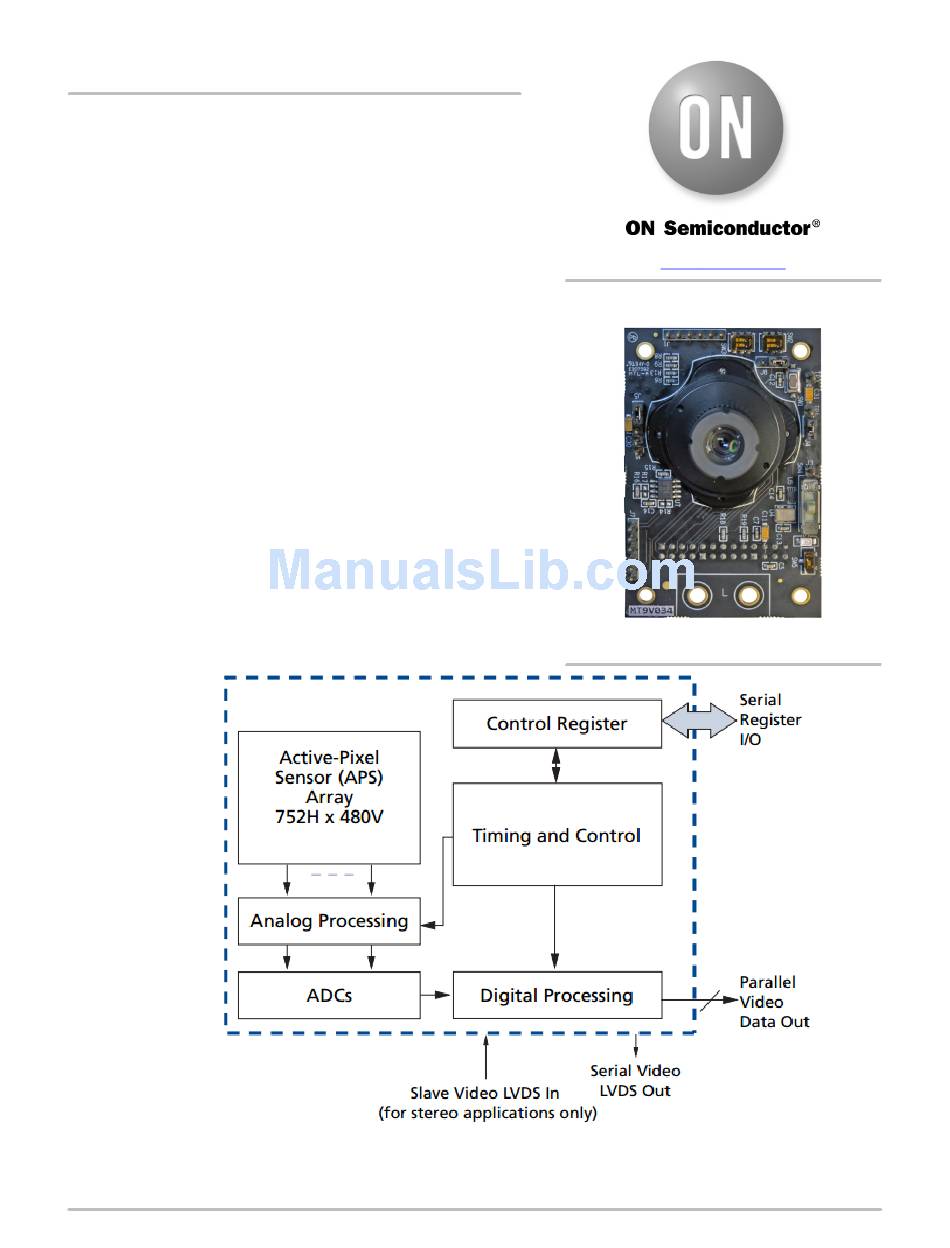

Figure 2. Block Diagram of MT9V034C12STCH−GEVB
EVAL BOARD USER'S MANUAL

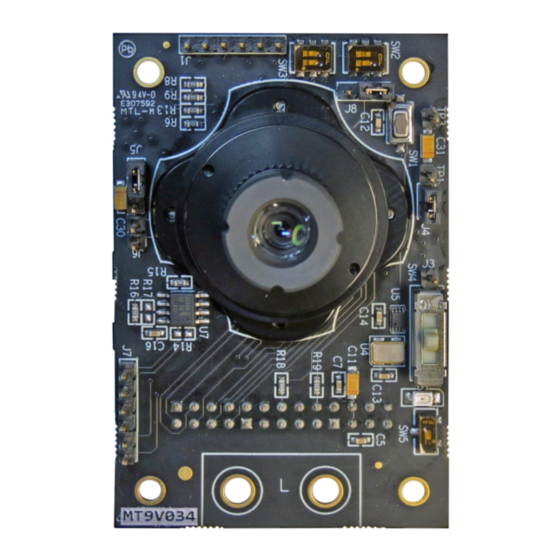

Figure 1. MT9V034 Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2460/D
