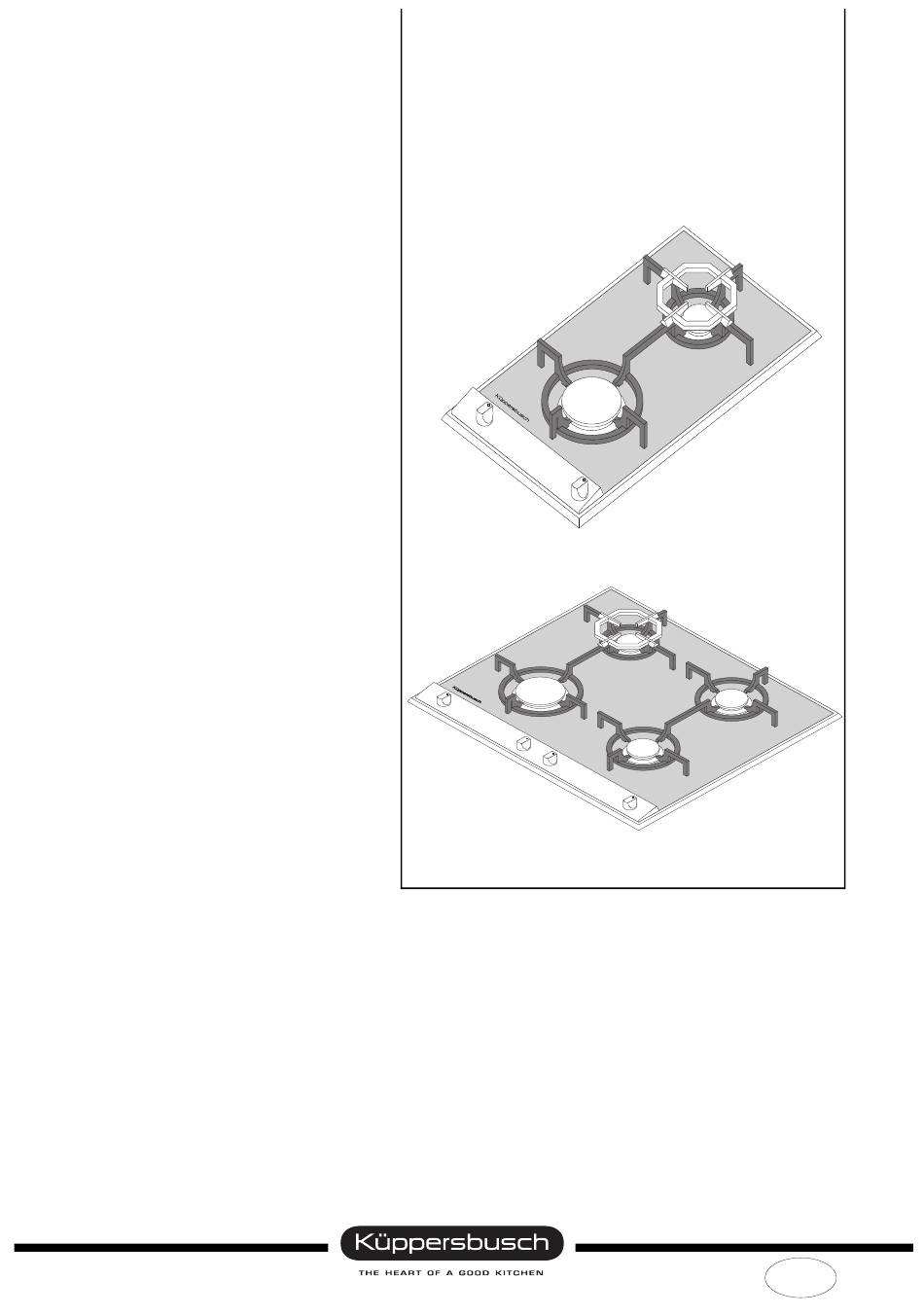

- Page 1 Glass Ceramic Gas Hob GKS 324.0-54 GKS 644.0-54...
- Page 2 Service Manual: H2-120-01-01 Responsible: N. Kirchmair KÜPPERSBUSCH HAUSGERÄTE AG Tel.: (0209) 401-718 Kundendienst Fax: (0209) 401-743 Postfach 100 132 Date: 17.07.2001 45801 Gelsenkirchen...
-
Page 3: Table Of Contents
Disassembly of the Hob ..................15 Changing of Temperature Sensors ..............15 Changing of Spark Plugs..................15 Renewing Magnet Insets GKS 324.0-54 and GKS 644.0-54 ......16 Renewing Gas Tap of the Cooking Zones ............17 Wiring diagram GKS 644.0-54 / GKS 324.0-54 ............18 Conversion to a Different Gas Type - Table of Injector Diameters ...... -
Page 4: General Technical Data
H2-120-01-01 General Technical Data Built-in Glass Ceramic Gas Hob GKS 644.0 Features: “Hardline” design Simmering burner Normal burner Built-in glass ceramic gas hob with 4 cooking zones: Low-emission gas burners, integrated in the glass ceramic surface 1 high-speed burner 2.8 kW 2 normal burner 1.9 kW, each 1 simmering burner 1.1 kW Full safety. -
Page 5: Built-In Glass Ceramic Gas Hob Gks 324.0-54
H2-120-01-01 Built-in Glass Ceramic Gas Hob GKS 324.0-54 Features: “Hardline” design Simmering burner Built-in glass ceramic gas hob with 2 cooking zones Low-emission gas burners, integrated in the glass ceramic surface 1 high-speed burner 2.8 kW 1 simmering burner 1.1 kW Full safety. -
Page 6: Appliance Illustration Gks 644.0-54
(position 2) 9. Control for right-hand bottom normal burner (position 4) Accessory supplied: Cross support for small pots Appliance Illustration GKS 324.0-54 1. Simmering burner 2. High-speed burner 3. Pot grids 4. Control for simmering burner 5. Control for high-speed burner... -
Page 7: Installation Conditions And Assembly
H2-120-01-01 Installation Conditions and Assembly Notes regarding Installation The room where the appliance is installed should have a volume of at least 20m and it must be possible to ventilate it by a window or a door opening out into the fresh air. The hob is built into an opening in the worktop. -
Page 8: Assembly
KÜPPERSBUSCH built-in hobs can and may be exclusivley combined with KÜPPERSBUSCH built-in ovens with appliance ventilation. The use of other brands excludes any liability by KÜPPERSBUSCH. The granted test marks and approvals become void in the case of disregarding of this instruction! Installation Dimensions GKS 324.0-54 GKS 644.0-54 *Appliance height Installation Using clips makes it easier and quicker for you to install these units. - Page 9 H2-120-01-01 GKS 324.0-54 GKS 644.0-54 30 mm worktop 40 mm worktop Fixing the hob For internal use only...
- Page 10 H2-120-01-01 Insert the rear edge of the hob and carefully lower it. At the same time press in the clips with both hands. Press hob downwards until it rests completely on the worktop. If the worktop cut-out should be a little too large, it is possible to increase the preliminary spring tension of the clips by screwing them down.
-
Page 11: Technical Components (Exploded View)
H2-120-01-01 Technical Components (Exploded View) GKS 644.0-54 For internal use only... - Page 12 H2-120-01-01 For internal use only...
-
Page 13: Gks 324.0-54
H2-120-01-01 GKS 324.0-54 For internal use only... - Page 14 H2-120-01-01 For internal use only...
-
Page 15: Changing Of Components
H2-120-01-01 Changing of Components Disassembly of the Hob Press the hob out of the worktop from below and remove it. Do not lever the hob out of the recess with a screwdriver - you could damage the frame of the hob. Remove the control knobs. -
Page 16: Renewing Magnet Insets Gks 324.0-54 And Gks 644.0-54
H2-120-01-01 Renewing Magnet Insets GKS 324.0-54 and GKS 644.0-54 GKS 644.0-54 Disassemble hob. Undo thermostat sensor at gas tap. Undo aluminium nut. Pull magnet inset from the gas tap to the back. Assembly is done in reverse order. When assembling CHECK FOR GAS LEAKS! -
Page 17: Renewing Gas Tap Of The Cooking Zones
H2-120-01-01 Gas Fittings GKS 324.0-54 and GKS 644.0-54 GKS 644.0-54 Renewing Gas Tap of the Cooking Zones Disassemble hob. Undo gas tap gallery from floor. Undo thermo element from gas tap. After unscrewing nut, pull burner pipe out of gas tap. -
Page 18: Wiring Diagram Gks 644.0-54 / Gks 324.0-54
H2-120-01-01 Wiring diagram GKS 644.0-54 / GKS 324.0-54 GKS 324.0-54 GKS 644.0-54 S1-S4 Micro-switch Intermittent spark igniter Mains connection terminal For internal use only... -
Page 19: Conversion To A Different Gas Type - Table Of Injector Diameters
H2-120-01-01 Conversion to a Different Gas Type - Table of Injector Diameters The appliance has been factory-set to natural gas G20, 2H, 2E, 2E+. All appliances marked with G20 are to be operated in the Wobbe index range (Wo) from 11.3 kWh/m to 15.2 kWh/m without changing the setting. - Page 20 H2-120-01-01 Changing the main injectors Through the mixing pipe of the burner mount the socket wrench onto the injector and unscrew the Socket wrench injector using a screwdriver. Place the new injector into the socket wrench and screw it in as far as it will go. Main injector Changing the low-flame injectors Using a suitable screwdriver, remove the low-flame...
-
Page 21: Functional Testing
H2-120-01-01 Functional Testing After the appliance has been completely re-assembled a functional testing is to be performed! Put the appliance into service in accordance with these operating instructions. Check the appliance for gas leakage (see DVGW working sheet G600 / DVGW TRGI/ 1986 / TRF 1988). Check burners for overignition and regular flame aspect (also in low setting). -
Page 22: Gas Connection Values
0.38 High-speed burner large small 0.56 0.56 GKS 324.0-54 GKS 644.0-54 Total nominal heat output = 3.9 kW Total nominal output = 7.7 kW Connected load of the appliance = 281 g/h Connected load of the appliance = 555 g/h... -
Page 23: Cross Calorific Values According To En 437
H2-120-01-01 Cross Calorific Values according to EN 437 Gas type Caloric value H 15 °C MJ/m kWh/m MJ/kg kWh/kg Natural gas H 37.78 10.5 (G 20) Natural gas L 32.49 9.03 (G 25) Butane (G 30) 49.47 13.75 Propane (G 31) 50.37 14.00 The HSB calorific value can be obtained from the relevant gas supply company upon installation. -
Page 24: Further Technical Information
H2-120-01-01 Further Technical Information Notes regarding the Correct Pot Sizes Using the correct pot sizes saves cooking time and energy. Select the pot diameter in accordance with the burner size. Recommened pot diatmeters: High-speed burner: 22 - 24 cm Normal burner (only GKS 644.0-54): 18 - 20 cm Simmering burner*: 12 - 16 cm... -
Page 25: Cleaning And Care
H2-120-01-01 Cleaning and Care Normally it is sufficient to clean the appliance with a damp cloth and some detergent after every use. Wipe dry afterwards. Do not use any abrasive or aggressive cleaning or scouring agents such as steel wool, soap- impregnated steel wool, metal or plastic sponges or similar agents with an abrasive surface.
