Kuppersbusch GKS 644.0 Instructions For Use And Installation Instructions
Hide thumbs
Also See for GKS 644.0:
- Installation instructions manual (9 pages) ,
- Technical manual (19 pages) ,
- User manual (8 pages)
Table of Contents
Advertisement
Quick Links
BEDIENUNGSANWEISUNG
mit Montageanweisungen
Instructions for use and installation instructions
Instructions d'utilisation et avis de montage
Gebruiksaanwijzing en montagehandleiding
Istruzioni di uso e di montaggio
Instrucciones de uso y de montaje
Instruções de uso e de montagem
GKS 644.0 / GKS 324.0
Advertisement
Table of Contents
Related Manuals for Kuppersbusch GKS 644.0
Summary of Contents for Kuppersbusch GKS 644.0
- Page 1 Montageanweisungen Instructions for use and installation instructions Instructions d’utilisation et avis de montage Gebruiksaanwijzing en montagehandleiding Istruzioni di uso e di montaggio Instrucciones de uso y de montaje Instruções de uso e de montagem GKS 644.0 / GKS 324.0...
-
Page 2: Table Of Contents
Dispose of your old appliance at a collection point for recycling useful materials. Before disposing of your old appliance ensure that it cannot be used any longer. This will prevent misuse. GKS 324.0/GKS 644.0... -
Page 3: Safety Instructions
Do not lever the hob out of the recess with a screwdriver - You could damage the frame of the hob. Press the hob out of the recess from underneath to dismantle. We recommend having the appliance serviced at regular intervals by a qualified gas fitter (maintenance agreement). GKS 324.0/GKS 644.0... -

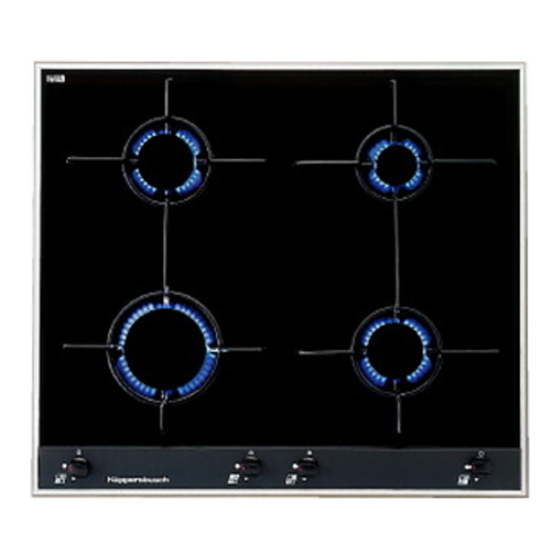

Page 4: Your Appliance At A Glance
Control knob for high-speed ring Control knob for simmering ring The appliance GKS 324.0 has two rings, GKS 644.0 has four rings. Control knob for normal ring top right (pos. 2) Each ring has its own control knob. Which control knob belongs to which ring Control knob for normal ring bottom right (pos. -
Page 5: Cross Support For Small Pots
Recommended saucepan diameters: What to do if trouble occurs... High-speed ring: 22 - 24 cm Normal ring (GKS 644.0 only): 18 - 20 cm Repairs may only be carried out by a qualified technician! Simmering ring*: 12 - 16 cm You can deal with some problems that occur yourself. -
Page 6: Assembly And Installation
The edges at the front and the rear are based on a worktop depth of 600 mm. The rear edge will be wider for worktops with a greater depth. * Appliance height GKS 324.0/GKS 644.0... -
Page 7: Connecting The Appliance To The Gas Supply
The mains connection for the appliance is rated for 220-240 V / 50 Hz. The power consumption is 0.6 VA. The connection cables must be laid in such a way that they do not heat up and become damaged when the appliance is in operation. GKS 324.0/GKS 644.0... -
Page 8: Initial Start-Up
Acc. no. 704 G 25 (25 mbar) Liquied gas butane/propane Acc. no. 701 G 30 (50 mbar) Liquied gas butane/propane Acc. no. 702 G 30 (28-30/37 mbar) Liquied gas propane Ask customer service. G 31 (50 mbar) GKS 324.0/GKS 644.0... -
Page 9: Resetting The Ring Burners
– Mount burner flange and screw tight. – Insert screws on the housing side again and tighten. Tight screws evenly and alternately. – Mount the relevant identification plates for the new type of gas you have converted to, choosing a suitable position. GKS 324.0/GKS 644.0... -
Page 10: Technical Data
60 GKS 324.0 Total nominal heat input = 3,9 kW Connected load of the appliance = 281 g/h GKS 644.0 Total nominal heat input = 7,7 kW Connected load of the appliance = 555 g/h GKS 324.0/GKS 644.0...
