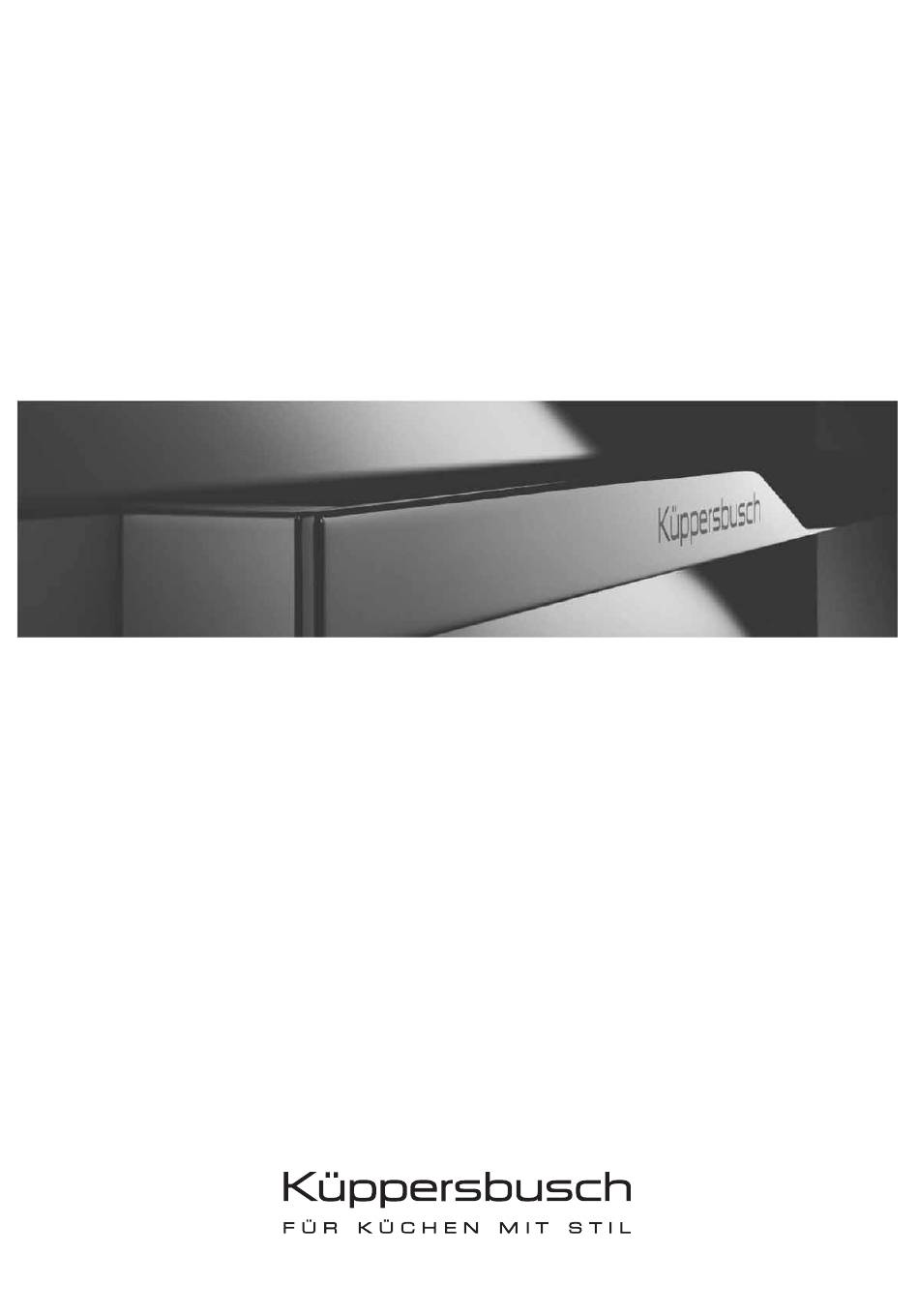

- Page 1 Other folder > Shun Hing folder > Gas hobs Instruction_(55242(M)) E HONG KONG TOWN GAS Gas Hobs INSTRUCTIONS FOR USE AND INSTALLATION GWS3811.0ED-HK GKS3820.0ED-HK...
- Page 2 Gas hob instructions for use Welcome Dear customer, We thank you for your confidence in our product. We are supplying you with a high-quality Küppersbusch product. As part of quality controls conducted prior to its delivery, it was inspected to ensure that it is in its proper condition.
-
Page 3: Table Of Contents
Gas hob instructions for use Contents Contents Safety and Responsibility ............... 3 Appropriate use ........................3 User responsibility ......................3 Qualification of Persons ...................... 4 Warnings in these instructions for use ................. 4 Overview of the Gas Hobs .............. 5 Gas hob GKS 3820.0ED –... -
Page 4: Safety And Responsibility
Gas hob instructions for use Safety and Responsibility 1 Safety and Responsibility For the purpose of safe, appropriate use, please observe the safety instructions before you use the appliance. 1.1 Appropriate use The appliances may only be operated when they have been adapted to the local gas supply – see the marking on the back of the appliance –... -
Page 5: Qualification Of Persons
Gas hob instructions for use Safety and Responsibility 1.3 Qualification of Persons Persons performing operations on the appliance during its individual life phases must be appropriately qualified. Operations Person Qualification Registered gas installer Assumbly, installation Knowledge of these instructions for use Registered electrical workers Installation of gas connections, Knowledge of specifications for gas initial operation, maintenance, fault... -
Page 6: Overview Of The Gas Hobs

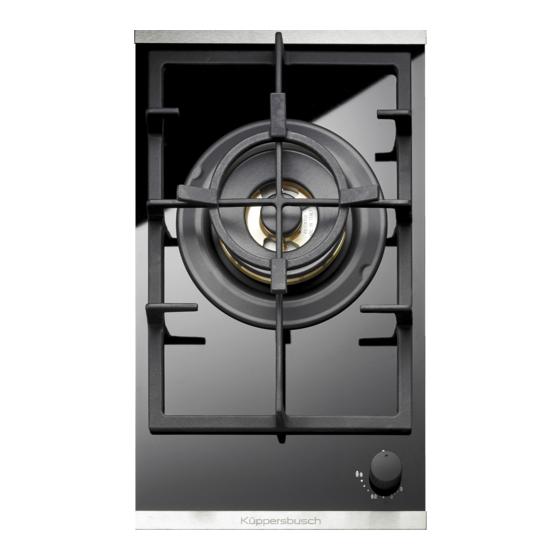

This section contains an overview of the gas hobs and their control elements. 2.1 Gas hob GKS3820.0ED-HK ① Standard burner ③ High-power burner ② Standard burner control knob ④ High-power burner control knob 2.2 Gas hob GWS3811.0ED-HK ① WOK burner ② WOK burner control knob... -
Page 7: Installation And Operation
Gas hob instructions for use Installation and Operation Installation and Operation Installation and operation safety WARNING Fatal injury caused by explosive gas ● Gas connections must all be installed by a registered gas installer. ● Only operate gas hobs in a well-ventilated, sufficiently large room (at least 20 m³) or install a mechanical ventilation device, e.g. -
Page 8: Gas Hob Installation
Gas hob instructions for use Installation and Operation Serious burns caused by fat explosions ● Never extinguish burning fat with water; use an extinguisher blanket or foam extinguisher. Overheated fats and oils may spontaneously ignite. Appliances must never be left unattended when in operation. - Page 9 Gas hob instructions for use Installation and Operation 3.2.3 Fitting the Hob The hob is equipped with a special seal to avoid any infiltration of liquid into the unit. To apply this seal correctly, please follow the instructions given below carefully: ●...
-
Page 10: Connecting The Gas Hob
Gas hob instructions for use Installation and Operation Connecting the gas hob ● Electrical connection: Connect the mains plug of the appliance to a socket with an earthed conductor. ● Gas connection: ○ The gas connection must be made by a registered gas installer. ○... -
Page 11: Operation
Gas hob instructions for use Installation and Operation Operation The appliance is only intended to be used for cooking food. WARNING Fatal injury caused by explosive gas A smell of gas means that there is a risk of explosion: ● DO NOT ignite gas hobs or turn on gas hob. - Page 12 Gas hob instructions for use Installation and Operation To use the WOK pan support on wok gas burner only. Put it on the wok pan support and make sure of the stability (see fig. A). FIG. A Position off Position Max FIG.
- Page 13 Gas hob instructions for use Installation and Operation Operating standard burners and high-power burners: Position off ① ● Press the control knob, keep it pressed and turn it anti-clockwise into position ② . ② ● Keep the control knob pressed for about 10 seconds after the burner has ignited, until the burner gets a sufficient supply of gas.
- Page 14 Gas hob instructions for use Installation and Operation 3.4.1 Lighting and Using The "Wok" Burner Stand the pan on the burner before lighting. Despite being controlled by a single knob, the “Wok” burner can be used in two different ways. A) - Using the complete burner: Starting from the off position ●...
-
Page 15: Cleaning And Maintenance
Gas hob instructions for use Cleaning Cleaning and Maintenance Periodically wash the hot plate, the enamelled steel pan support, the enamelled burner caps “A”, “B” and “C” and the burner heads "T" (see fig. 5 and 6) with lukewarm soapy water. They should also be cleaned plugs "AC"... - Page 16 Gas hob instructions for use Cleaning IMPORTANT: When removing the burners to clean them, ensure that all parts are correctly positioned before relighting them. Note: Continuous use could cause the burners to change colour due to the high temperature. FIG.5 FIG.6 FIG.7...
-
Page 17: Troubleshooting
Gas hob instructions for use Troubleshooting Troubleshooting Safety when troubleshooting WARNING Fatal injury caused by explosive gas ● A smell of gas means that there is a risk of explosion: ○ DO NOT ignite gas hobs or turn on gas hob. ○... -
Page 18: Finding Faults
Gas hob instructions for use Troubleshooting Finding faults Malfunction Cause(s) Measure(s) Remove the saucepan support Take out the burner cap from the Holes on the burner cap are blocked burner spreader Clean the holes on the burner cap Electrical connection interrupted Check the power supply Burner is not ignited Gas stop valve closed... -
Page 19: Technical Data
Technical Data Technical Data This section shows the technical data. The values shown serve to support orientation and may deviate slightly. GKS3820.0ED-HK GWS3811.0ED-HK Width x height x depth (300 x 520 x 53) mm (300 x 520 x 53) mm Weight: Approx. - Page 20 Version 1-2018...
