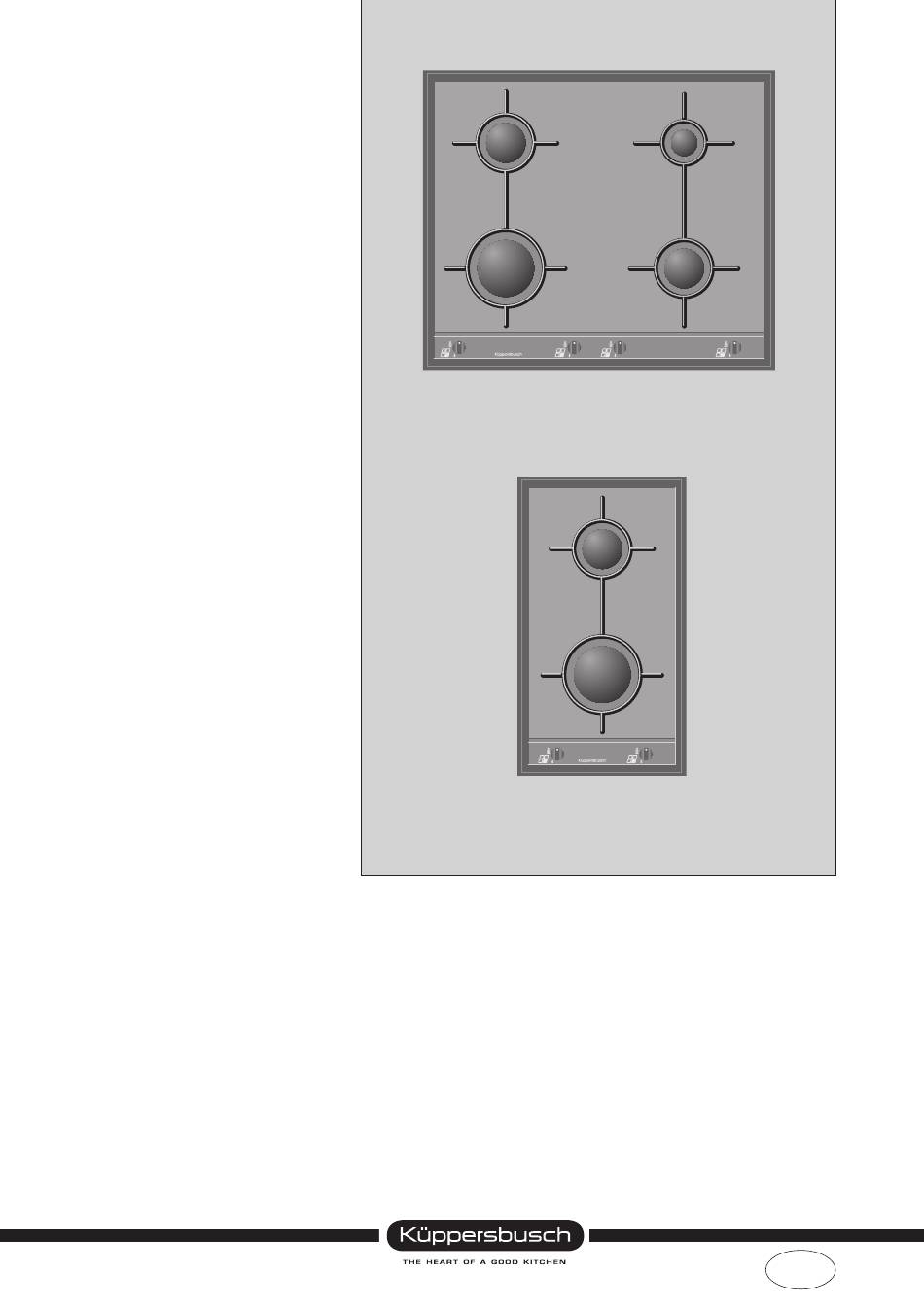

- Page 1 Glass Ceramic Gas Hobs GKS 324.0 GKS 644.0...
- Page 2 Technical Manual: H 2-120-59-01 Responsable: Kirchmair Küppersbusch Vertriebsges.mbH Kundendienst Tel.: (0209) 401-718 Fax: (0209) 401-743 Postfach 100 132 Date: 26.05.1998 45801 Gelsenkirchen...
-
Page 3: Table Of Contents
1.1 Built-In Glass Ceramic Gas Hob GKS 644.0 ..... . .4 1.2 Built-In Glass Ceramic Gas Hob GKS 324.0 ..... . .5 1.3 GKS 644.0 . -
Page 4: General Technical Data
Service Manual GKS 324.0 + GKS 644.0 1. General Technical Data 1.1 Built-In Glass Ceramic Gas Hob GKS 644.0 Features: ”Hardline” design Built-in glass ceramic gas hob with 4 cooking zones: • low-emission gas burners, integrated in the glass ceramic surface •... -
Page 5: Built-In Glass Ceramic Gas Hob Gks 324.0

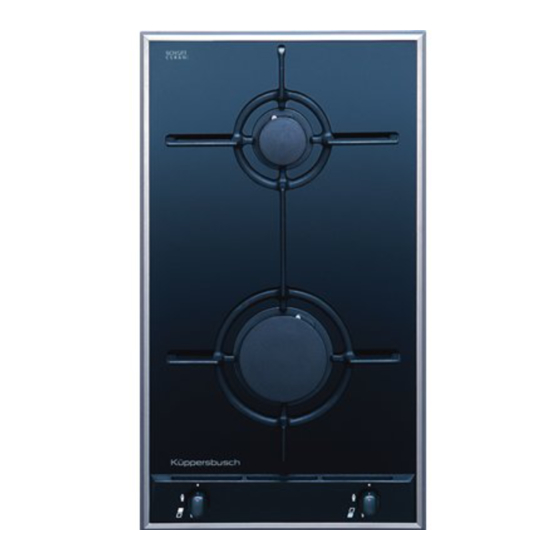

Service Manual GKS 324.0 + GKS 644.0 1.2 Built-In Glass Ceramic Gas Hob GKS 324.0 Features: ”Hardline” design Built-in glass ceramic gas hob with 2 cooking zones: • low-emission gas burners, integrated in the glass ceramic surface • 1 high speed cooking zone 1.9 kW •... -
Page 6: Gks 644.0
Service Manual GKS 324.0 + GKS 644.0 1.3 Appliance Illustration GKS 644.0 1 Standard cooking zone 2 Simmering zone 3 High-speed cooking zone 4 Standard cooking zone 5 Pot grids 6 Control for high-speed cooking zone 7 Control for left-hand top standard... -
Page 7: Installation Conditions And Assembly
Service Manual GKS 324.0 + GKS 644.0 2. Installation Conditions and Assembly 2.1 Notes regarding Installation • Make sure that the worktop is horizontally aligned and precisely cut out! • The distances of the hob recess at the front, rear and lateral to the wall must be observed in accordance with the dimension drawing. -
Page 8: Installation Dimensions
Service Manual GKS 324.0 + GKS 644.0 2.3 Installation Dimensions GKS 324.0 GKS 644.0 *Appliance height 2.4 Installation Make the worktop recess in accordance with the specified dimensions (see above drawing ”Installation dimensions”). Always lift the hob at the sides and not at the front fasica! - Page 9 Service Manual GKS 324.0 + GKS 644.0 Fix the cooking zone: After installation of the sealing position the cooking zone at the left-hand side of the worktop recess, align and fasten. The attached fastening brackets are inserted in the front and rear recesses at the underside of the cooking hob and screwed down to the worktop (see drawing below).
-
Page 10: Technical Components (Exploded View)
Service Manual GKS 324.0 + GKS 644.0 3. Technical Components (Exploded View) 3.1 GKS 644.0J GKS 644.0M For internal use only... -
Page 11: Gks 324.0J Gks 324.0M
Service Manual GKS 324.0 + GKS 644.0 3.2 GKS 324.0J GKS 324.0M For internal use only... -
Page 12: Changing Of Components
Service Manual GKS 324.0 + GKS 644.0 4. Changing of Components 4.1 Disassembly of the Hob • To remove the glass surface, lift out the ribbed plates and burner lid. • Remove the control knobs. • Unscrew the circumferential fastening screws of the base trough. -
Page 13: Wiring Plans
Service Manual GKS 324.0 + GKS 644.0 5. Wiring Plans 5.1 GKS 644.0 For internal use only... -
Page 14: Gks 324.0
Service Manual GKS 324.0 + GKS 644.0 5.2 GKS 324.0 For internal use only... -
Page 15: Conversion To A Different Gas Type - Table Of Injectors
Service Manual GKS 324.0 + GKS 644.0 6. Conversion to a Different Gas Type The appliance has been factory-set to natural gas G20, 2H, 2E, 2E+. All appliances marked with G20 are to be operated in the Wobbe index range (Wo) from 11.3 kWh/m3 to 15.2 kWh/m3 without changing the setting. -
Page 16: Changing The Low Setting Injectors
Service Manual GKS 324.0 + GKS 644.0 6.3 Changing the Low Setting Injectors • Close the gas tap! • Disassemble the hob from the worktop. • Pull off the control knobs. • Undo the screws at the housing side and remove the glass ceramic surface. -
Page 17: Gas Connection Values
Service Manual GKS 324.0 + GKS 644.0 7. Gas Connection Values 7.1 Gas Connection Values The flow data refer to the Rated heat load / kW combustion value and have (Flow) been calculated with the test gases G20 (natural gas H, E) -
Page 18: Power Table
Service Manual GKS 324.0 + GKS 644.0 8. Power Table Power in kW Country Cat. Pressure (mbar) Simmering burner Standard burner Standard burner High-speed burner 1.00 1.65 1.65 3.20 I3B/P 0.90 1.60 1.60 2.65 I2E+ 0.95 1.50 1.50 2.65 28-30/37 1.00... -
Page 19: Further Technical Information
Service Manual GKS 324.0 + GKS 644.0 9. Further Technical Information 9.1 Notes regarding the Correct Pot Sizes Using the correct pot sizes saves cooking time and energy. Select the pot diameter in accordance with the burner size. • Recommened pot diatmeters: •...
