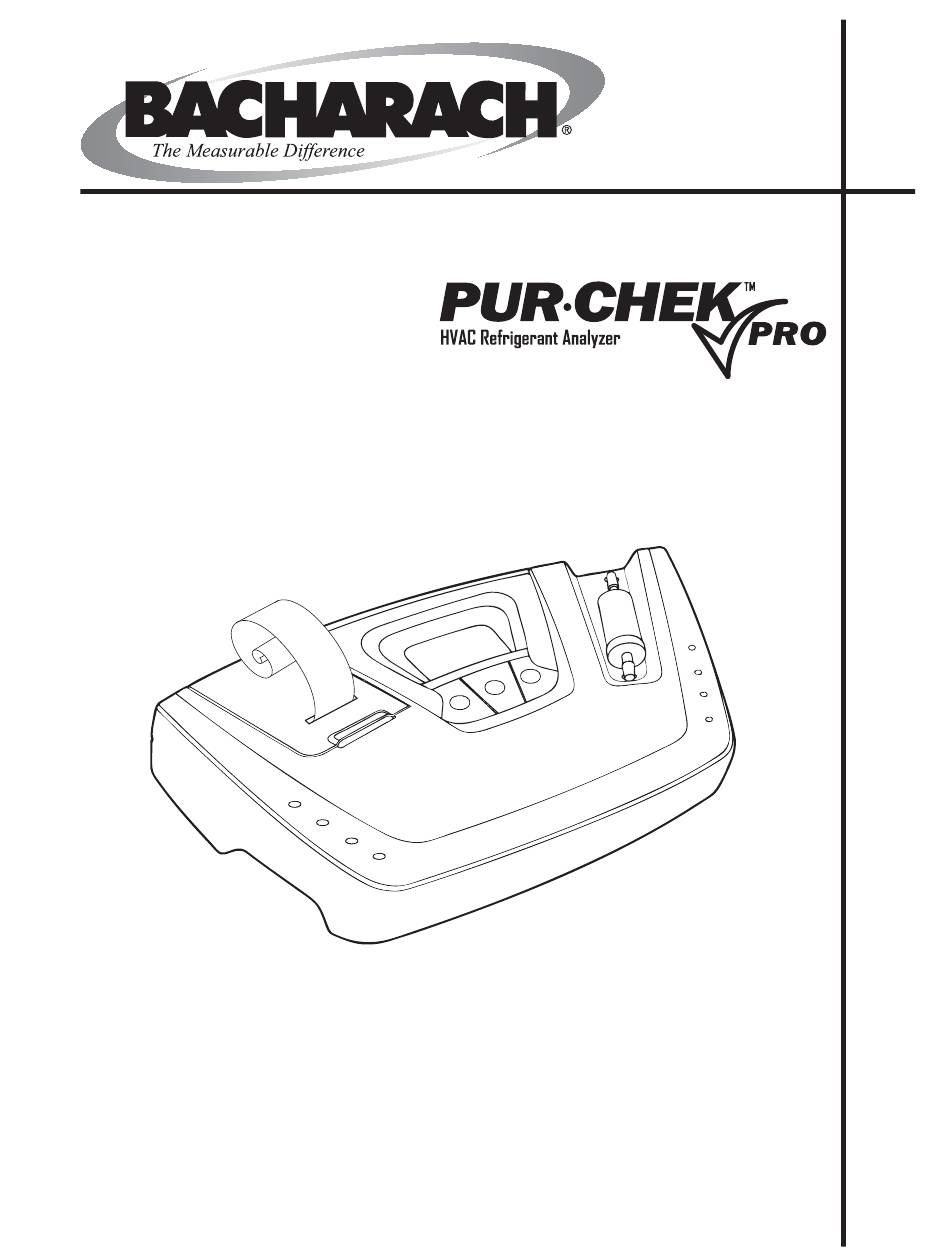

- Page 1 Instruction 2100-9001 Operation and Maintenance Rev. 0 — June 2010 Product Leadership • Training • Service • Reliability...
- Page 2 Bacharach, Inc. warrants to Buyer that it will convey good title to this Product. Bacharach’s liability and Buyer’s remedy under this warranty of title are limited to the removal of any title defects or, at the election of Bacharach, to the replacement of this Product or parts thereof that are defective in title.
-
Page 3: Table Of Contents
Pur•Chek ™ Contents 1 Introduction ..................1 1.1 How to Use This Manual .............1 1.2 Warnings & Cautions ............1 1.2.1 Analyzer Warnings ..........1 1.2.2 General Warnings & Cautions ......2 1.3 Features and Capabilities ............2 1.4 Pur•Chek™ Pro Model and Contents ........2 1.5 Functional Overview ............3 2 Specifi... - Page 4 Pur•Chek ™ Instruction 2100-9001...
-
Page 5: Introduction
Pur•Chek ™ 1 Introduction 1.1 How to Use This Manual This manual provides important information on how to operate and maintain Bacharach’s Pur•Chek ™ Pro HVAC Diagnostic Refrigerant Analyzer. To assure operator safety and proper use of the Pur•Chek ™... -
Page 6: General Warnings & Cautions
Pur•Chek ™ 1.2.2 General Warnings & Cautions • Always inspect the sample hose before each use. Replace the hose if it appears cracked, frayed, obstructed or fouled with oil. • ALWAYS turn the compressor off before connecting the instrument to an air conditioning system. -
Page 7: Functional Overview
The substitute refrigerant blends can also introduce a fl ammability hazard to the technician and the ultimate end user of the air conditioning system. The Bacharach Pur•Chek™ Pro Diagnostic Refrigerant Analyzer provides a fast, easy and accurate means to determine refrigerant purity in refrigerant storage cylinders or directly in air conditioning systems. The instru- ment utilizes non-dispersive infrared (NDIR) technology to determine the weight concentrations of multiple refrigerant types. -
Page 8: Specifi Cations
Pur•Chek ™ 2 Specifi cations Sample Parameters Vapor only, oil-free, 500psig max. Identifi ed Refrigerants R408A, R409A, R417A, R421A, R421B, R422A, R422B, R422C, R427A Identifi ed and Analyzed R134A, R22, R404A, R407C, R410A Refrigerants Sensor Technology Non-Dispersive Infrared (NDIR) Refrigerant Sample Size 0.3 ounces (8.5 grams) per sample Power External Power Supply: 110/220V~, 5/60Hz, 0.6A... -
Page 9: Components
Pur•Chek ™ 3 Components 3.1 Base Unit The Pur•Chek™ Pro base unit houses the Graphic Display, Infrared Bench, Electrical Connections, and Printer Module. These components require no maintenance, therefore there are no serviceable components inter- nal to the instrument, and disassembly will void the warranty. Sample Filter Control Panel Printer Door... -
Page 10: High Side Liquid Sample Hose
Pur•Chek ™ 3.3 High Side Liquid Sample Hose The 6 foot (1.8 meter) High Side Sample Hose is constructed of a polyurethane tube with an oil reservoir. A brass fl ow restrictor acts to transform Liquid refrigerant to Vapor at the sample connection point while the Oil Trap Syringe collects oil and provides a means of expulsion after the test is complete. -
Page 11: Back Panel Connections
Pur•Chek ™ 3.6 Back Panel Connections The connections located on the back panel are illustrated below. CAUTION: The sample outlet port should never be obstructed. Keep the sample outlet port free and clear at all times. Do not operate near open fl ame. Sample Inlet 12 VDC Power Input (AC Adapter... -
Page 12: Operation
Pur•Chek ™ 4 Operation 4.1 Battery Installation The Pur•Chek™ Pro has, as an option, an internal rechargeable battery. If your Pur•Chek™ Pro is equipped with the optional rechargeable battery, you must fi rst install and charge the battery prior to use. NOTE: The Pur•Chek™... -
Page 13: Turning On The Unit
Pur•Chek ™ 4.2 Turning On the Unit Connect the included AC power supply to the 12VDC power input jack on the back of the unit. Plug in the AC power supply to a 110-220 VAC outlet. NOTE: If the optional battery module is installed and charged, the AC power supply is not required. -
Page 14: Vapor Sampling
Pur•Chek ™ 4.4 Vapor Sampling Vapor sampling is the most common process used for identifying refrigerants using the Pur•Chek™ Pro. It is a simple process requiring the operator to take these 5 steps: Calibrate the unit as per section 4.3 of this manual. Connect the vapor sampling hose to the instrument, then to the Low Side Vapor port of the system or cylinder. -
Page 15: Contaminated Blend Refrigerants
Pur•Chek ™ If the refrigerant tested is 90% pure or better, the results will be displayed as shown in Figure 9. Should the refrigerant be less than 90% pure the results will be displayed as shown in Figure 10. NOTE: Air is only displayed for R134A and only when the R134A refrigerant concentration is greater than 90%. -
Page 16: Printing The Test Results
Pur•Chek ™ 4.9 Printing the Test Results The test results can be printed by selecting the “PRINT” button. After the print is complete, carefully tear off the printout and the unit will return to the previous screen. Additional printouts may be made following the same procedure. -
Page 17: Maintenance & Troubleshooting
Pur•Chek ™ 5 Maintenance & Troubleshooting 5.1 Setting the Elevation During the initial power-up, the Pur•Chek™ Pro will indicate that the elevation has not been set. To set the elevation, press the “Help” button on the “Ready to Air Cal” screen as shown in Section 2.2, Figure 3. The screen will display several options as shown in Figure 16. -
Page 18: Changing The White Plastic Sample Filter
Pur•Chek ™ 5.3 Changing the White Plastic Sample Filter When inspecting the sample fi lter, look completely around the entire outside diameter of the white fi lter element located inside of the clear plastic housing. Look for red spots or the beginnings of discoloration on the white outside diameter of the element. -
Page 19: Error Messages
The Pur•Chek™ Pro has a USB update port located within the battery compartment. This port should not be used for any other purpose other than to install factory updates using the Bacharach factory USB drive. Instruction 2100-9001... -
Page 20: Replacement Parts
2100-0012 Spare Rechargeable Battery 2100-9001 Instruction Manual 7 Service Centers Service and replacement parts can be found by contacting any of the following Bacharach Service Centers: United States Bacharach, Inc. 621 Hunt Valley Circle New Kensington, PA 15068 Phone: 724-334-5000; press 2 at prompt Fax: 724-334-5723 Email: help@mybacharach.com... - Page 21 Pur•Chek ™ NOTES: Instruction 2100-9001...
- Page 22 World Headquarters: 621 Hunt Valley Circle, New Kensington, PA 15068 PH: 724-334-5000 • Toll Free: 800-736-4666 • Fax: 724-334-5001 Website: www.mybacharach.com • Email: help@mybacharach.com Printed in USA ® Registered Trademark of Bacharach, Inc.
