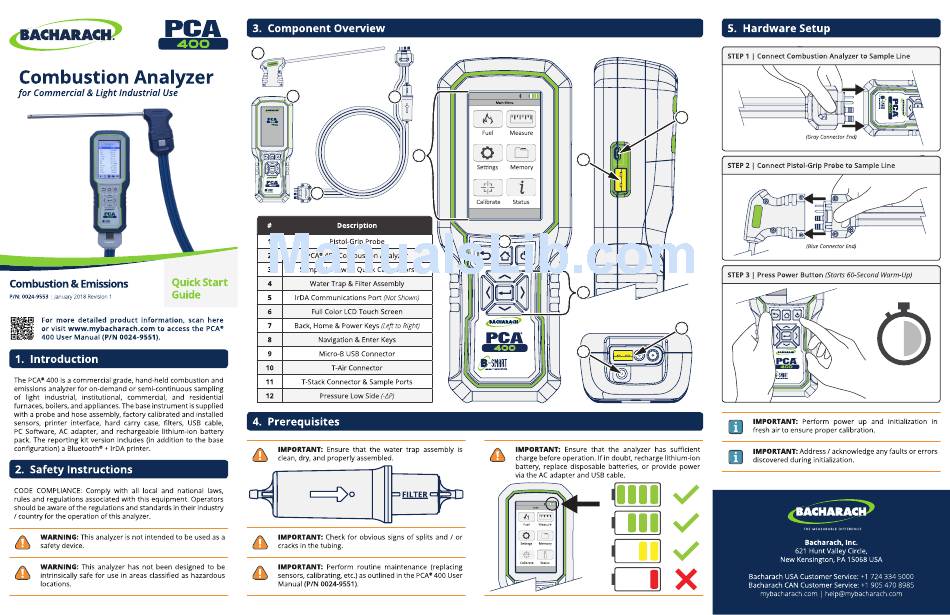

Bacharach PCA 400 Quick Start Manual

®
WARNING: This analyzer is not intended to be used as a
safety device.
WARNING: This analyzer has not been designed to be
intrinsically safe for use in areas classified as hazardous
locations.
1
2 4
Warm Up: 60 seconds
6
3
1 Pistol-Grip Probe
2 PCA 400 Combustion Analyzer
®
3 Sample Line with Quick Connectors
4 Water Trap & Filter Assembly
5 IrDA Communications Port (Not Shown)
6 Full Color LCD Touch Screen
7 Back, Home & Power Keys (Left to Right)
8 Navigation & Enter Keys
9 Micro-B USB Connector
10 T-Air Connector
11
T-Stack Connector & Sample Ports
12
Pressure Low Side (-∆P)
IMPORTANT: Ensure that the water trap assembly is
clean, dry, and properly assembled.
IMPORTANT: Check for obvious signs of splits and / or
cracks in the tubing.
IMPORTANT: Perform routine maintenance (replacing
sensors, calibrating, etc.) as outlined in the PCA 400 User
®
Manual (P/N 0024-9551).
Front Side
10
7
8
Bottom
12
IMPORTANT: Ensure that the analyzer has sufficient
charge before operation. If in doubt, recharge lithium-ion
battery, replace disposable batteries, or provide power
via the AC adapter and USB cable.
9
11
IMPORTANT: Perform power up and initialization in
fresh air to ensure proper calibration.
IMPORTANT: Address / acknowledge any faults or errors
discovered during initialization.
60-SECOND
WARM-UP
