Dahua ITC231-RF1A-IR User Manual page 88

The relay-out interface is shown as in
Step 1. Select Setting>Event>Alarm>Relay-out.
Step 2. Click 1, 2, or 3. Set 1 channel of alarm output.
Step 3. Click trigger to output alarm signal.
Step 4. Click Refresh to search alarm output status.
6.5.4.2 Abnormity
When the device has abnormality, the system will trigger alarm.
Select Setting>Event>Abnormality, select abnormity tab, see figure shown below.

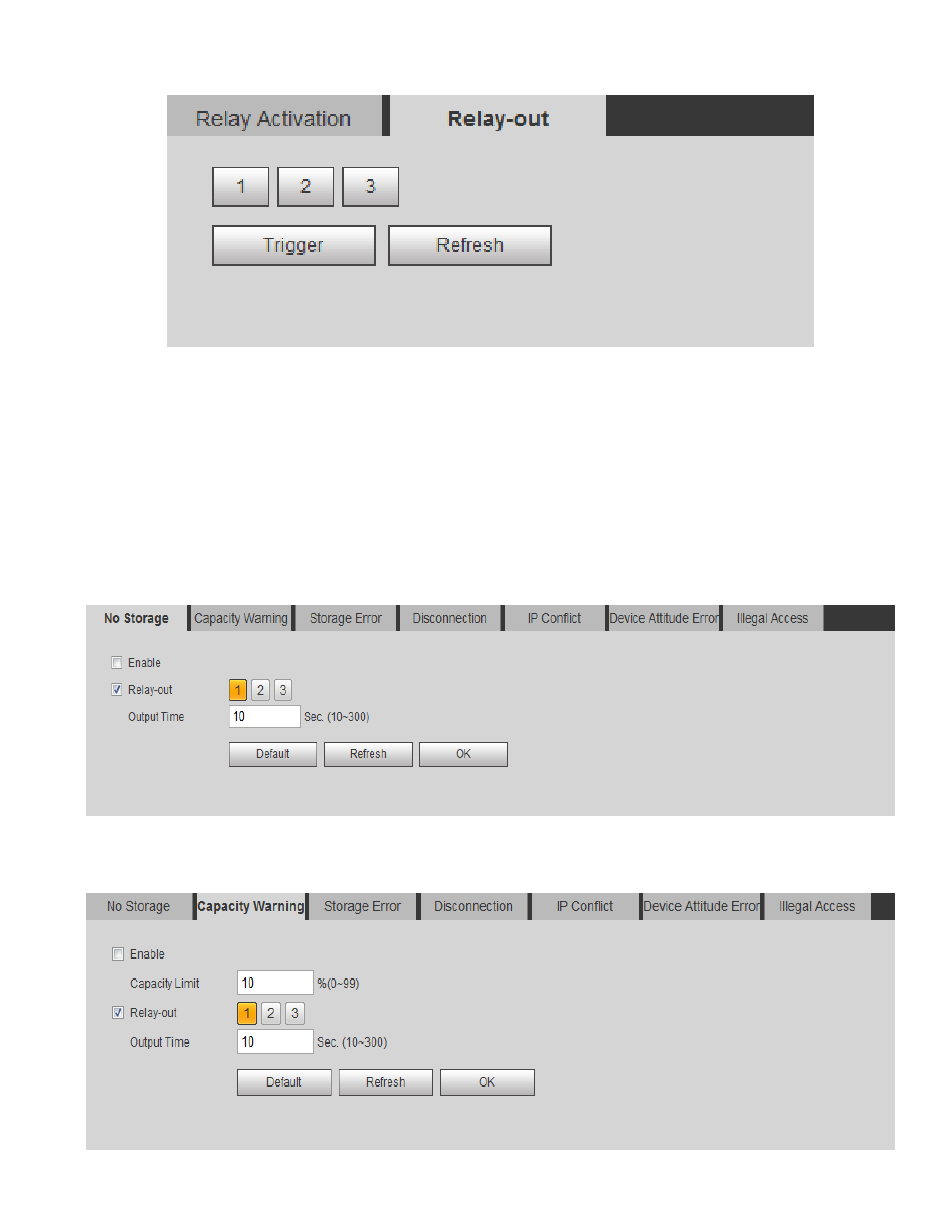

Figure 6-73 Relay-out
Figure 6-73 Relay-out
Figure 6-74 No Storage Card
.
