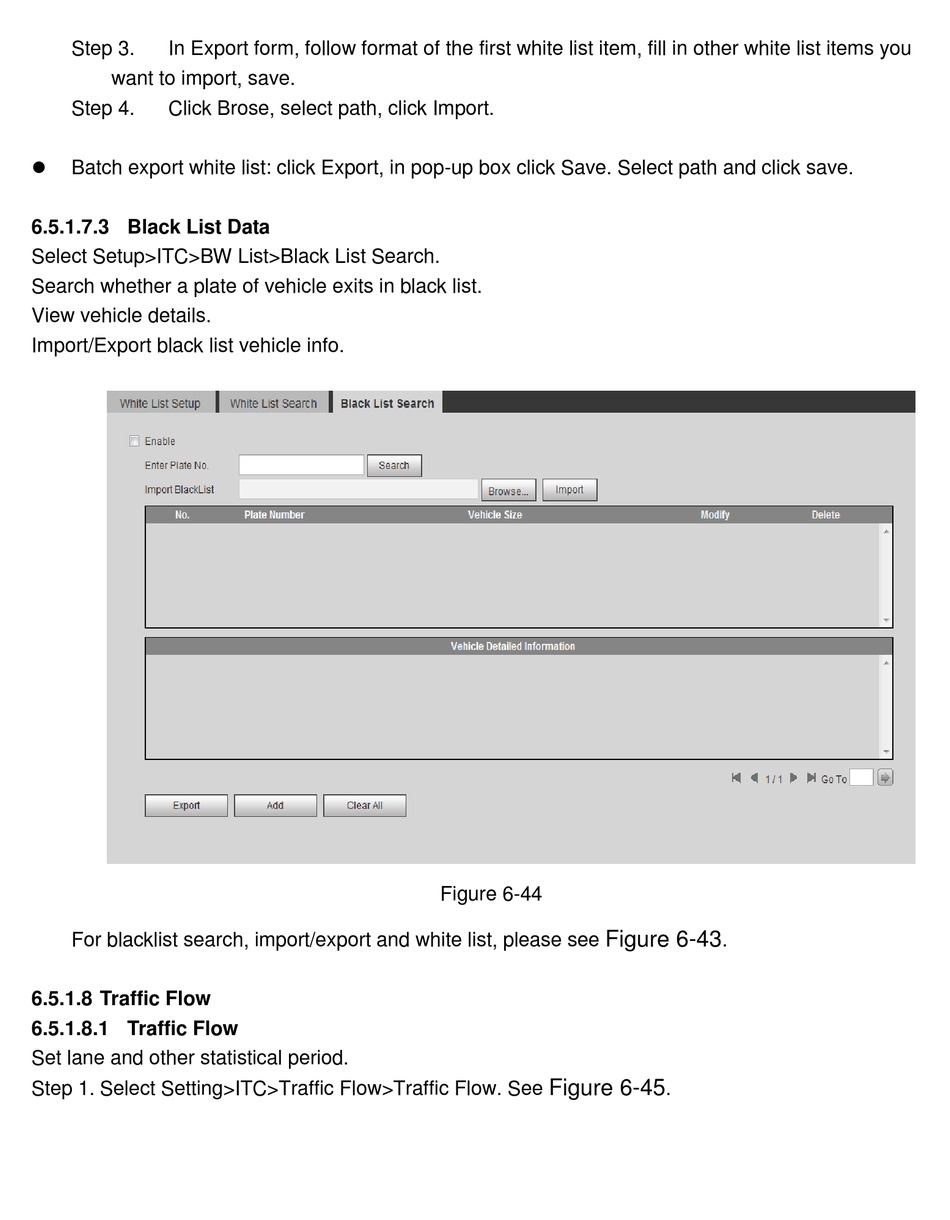

Dahua ITC231-RF1A-IR User Manual page 62

Step 3. In Export form, follow format of the first white list item, fill in other white list items you
want to import, save.
Step 4. Click Brose, select path, click Import.

Batch export white list: click Export, in pop-up box click Save. Select path and click save.
6.5.1.7.3 Black List Data
Select Setup>ITC>BW List>Black List Search.
Search whether a plate of vehicle exits in black list.
View vehicle details.
Import/Export black list vehicle info.
For blacklist search, import/export and white list, please see
6.5.1.8 Traffic Flow
6.5.1.8.1 Traffic Flow
Set lane and other statistical period.
Step 1. Select Setting>ITC>Traffic Flow>Traffic Flow. See
Figure 6-44
Figure 6-43
Figure 6-45
.
.
