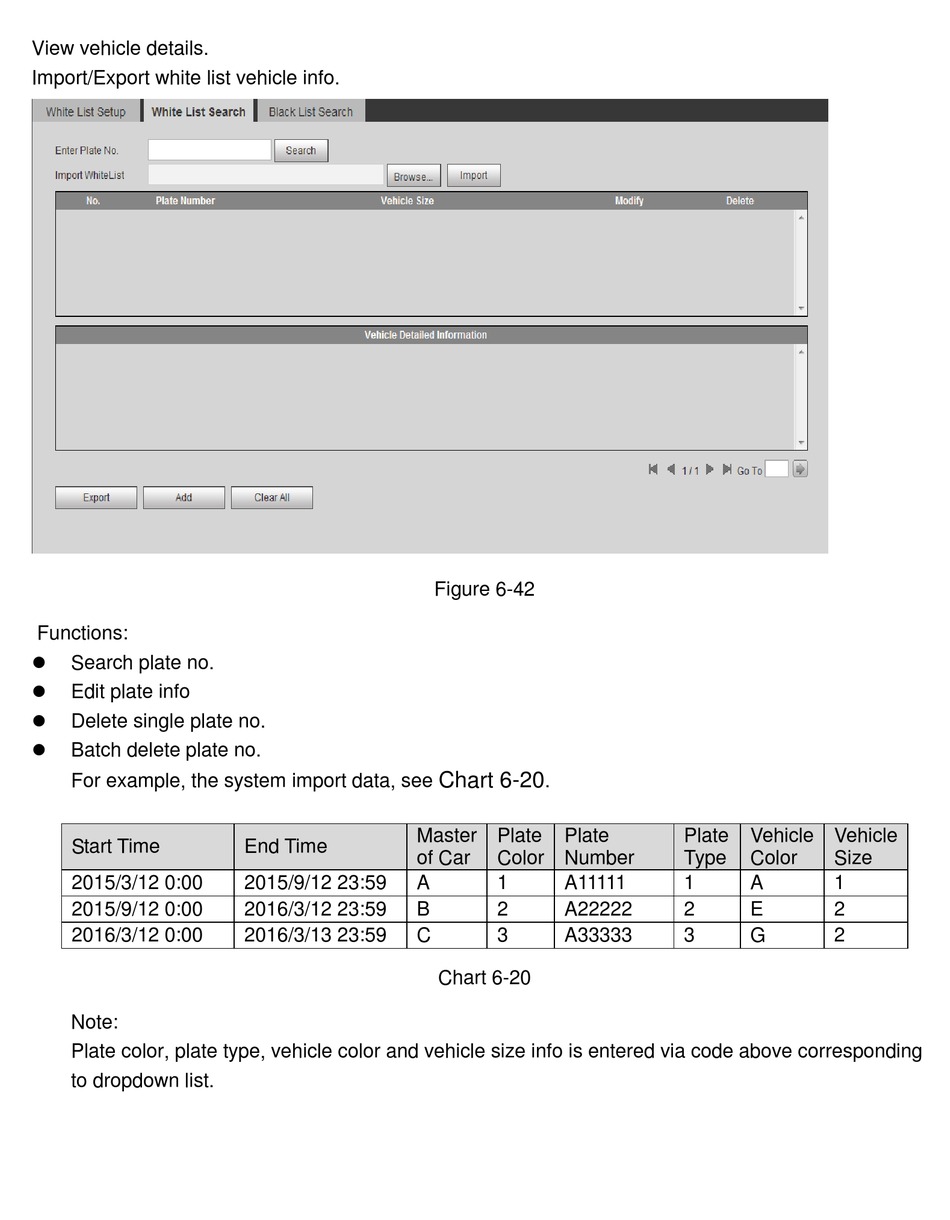

Dahua ITC231-RF1A-IR User Manual page 60

View vehicle details.
Import/Export white list vehicle info.
Functions:

Search plate no.

Edit plate info

Delete single plate no.

Batch delete plate no.
For example, the system import data, see
Start Time
2015/3/12 0:00
2015/9/12 0:00
2016/3/12 0:00
Note:
Plate color, plate type, vehicle color and vehicle size info is entered via code above corresponding
to dropdown list.
Master
End Time
of Car
2015/9/12 23:59 A
2016/3/12 23:59 B
2016/3/13 23:59 C
Figure 6-42
Chart 6-20
.
Plate Plate
Color Number
1 A11111
2 A22222
3 A33333
Chart 6-20
Plate Vehicle Vehicle
Type Color Size
1 A 1
2 E 2
3 G 2
