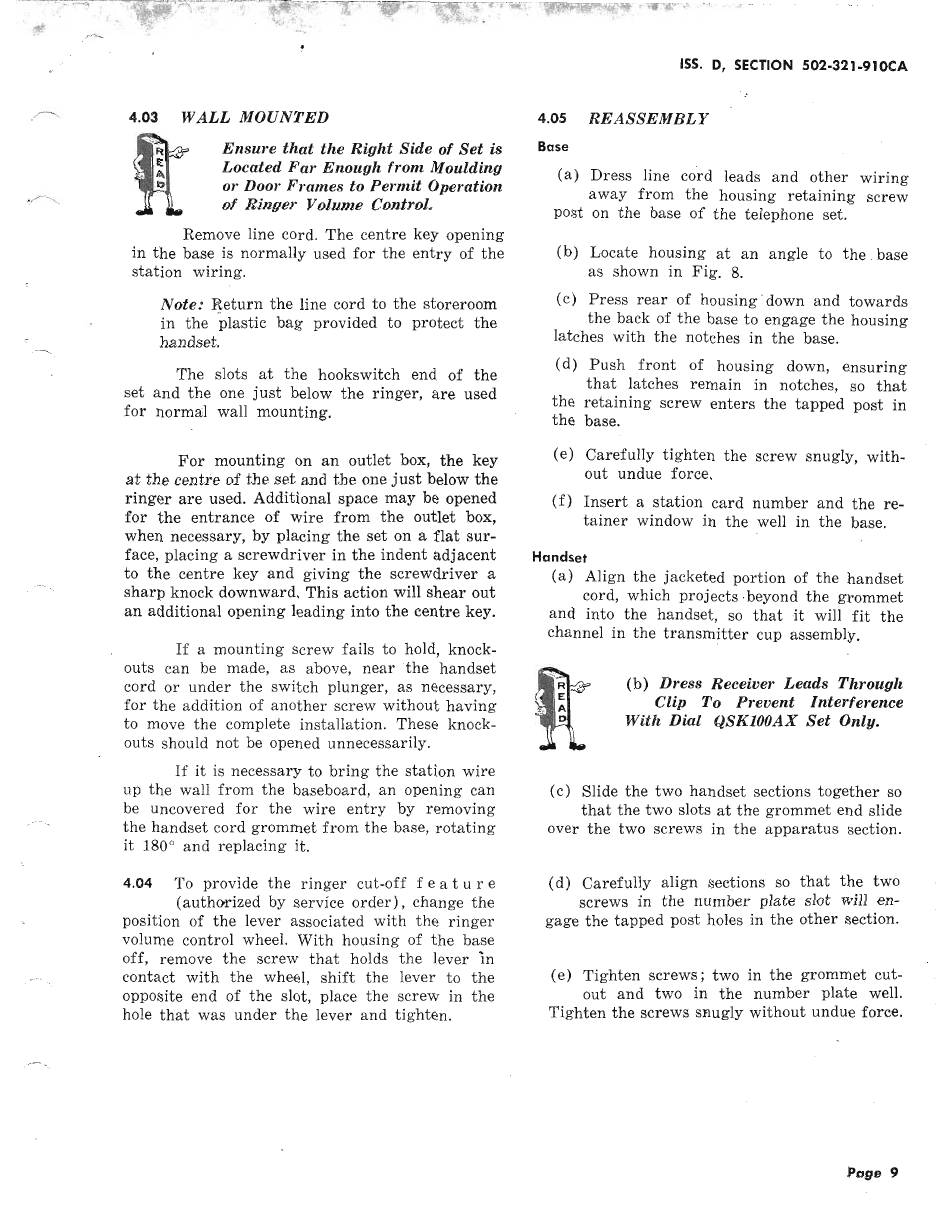

ISS. D, SECTION 502·321.910CA
......
4.03
WALL MOUNTED
4.05 REASSEMBLY
Ensure that the Right Side of Set is
Located Far Enough from Moulding
or Door Frames to Permit Operation
of Ringer Volume Control.
Base
(a) Dress line cord leads and other wIrmg
a way from the housing retaining screw
post on the base of the telephone set.
Remove line cord. The centre key opening
in the base is normally used for the entry of the
station wiring.
Note: l}eturn the line cord to the storeroom
in the plastic bag provided to protect the
handset.
The slots at the hookswitch end of the
set and the one just below the ringer, are used
for normail wall mounting.
• <
,.
For mounting on an outlet box, the key
at the centre of the set and the one just below the
ringer are used. Additional space may be opened
for the entrance of wire from the outlet box,
when necessary, by placing the set on a flat sur-
face, placing a screwdriver in the indent adjacent
to the centre key and giving the screwdriver a
sharp knock downward. This action will shear out
an additional opening leading into the centre key.
If a mounting screw fails to hold, knock-
outs can be made, as above, near -the handset
cord or under the switch plunger, as necessary,
for the addition of another screw without having
to move the complete installation. These knock-
outs should not be opened unnecessarily.
If it is necessary to bring the station wire
up the wall from the baseboard, an opening can
be uncovered for the wire entry by removing
the handset cord grommet from the base, rotating
it 180 0 and replacing it.
4.04
To provide the ringer cut-off f eat u
l'
e
(autho-rized by service order), change the
position of the lever associated with the ringer
volume control wheel. With housing of the base
off, remove the screw that holds the lever in
contact with the wheel, shift the lever to the
opposite end of the slot, place the screw in the
hole that was under the lever and tighten.
(b) Locate housing at an angle to the base
as shown in Fig. 8.
(c) Press rear of housing' down and towards
the back of the base to engage the housing
latches with the notches in the ba:se.
(d) Push front of housing down, ensuring
that latches remain in notches, so that
the retaining screw enters the tapped post in
the base.
(e) Carefully tighten the screw snugly, with-
out undue force.
(f) Insert a station card number and the re-
tainer window in the well in the base.
Handset
(a) Align the jacketed portion of the handset
cord, which projects ,beyond the grommet
and into the handset, so that it will fit the
channel in the transmi.tter cup assembly.
(b)
Dress Receiver Leads Through
Clip To Prevent Interference
With Dial QSKIOOAX Set Only.
(c) Slide the two handset sections together so
that the two slots at the grommet end slide
over the two screws in the apparatus section.
(d) Carefully align sections so that the two
screws in the number plate slot will en-
gage the tapped post holes in the other section.
(e) Tighten screws; two in the grommet cut-
out and two in the number plate well.
Tighten the screws sRugly without undue force.
