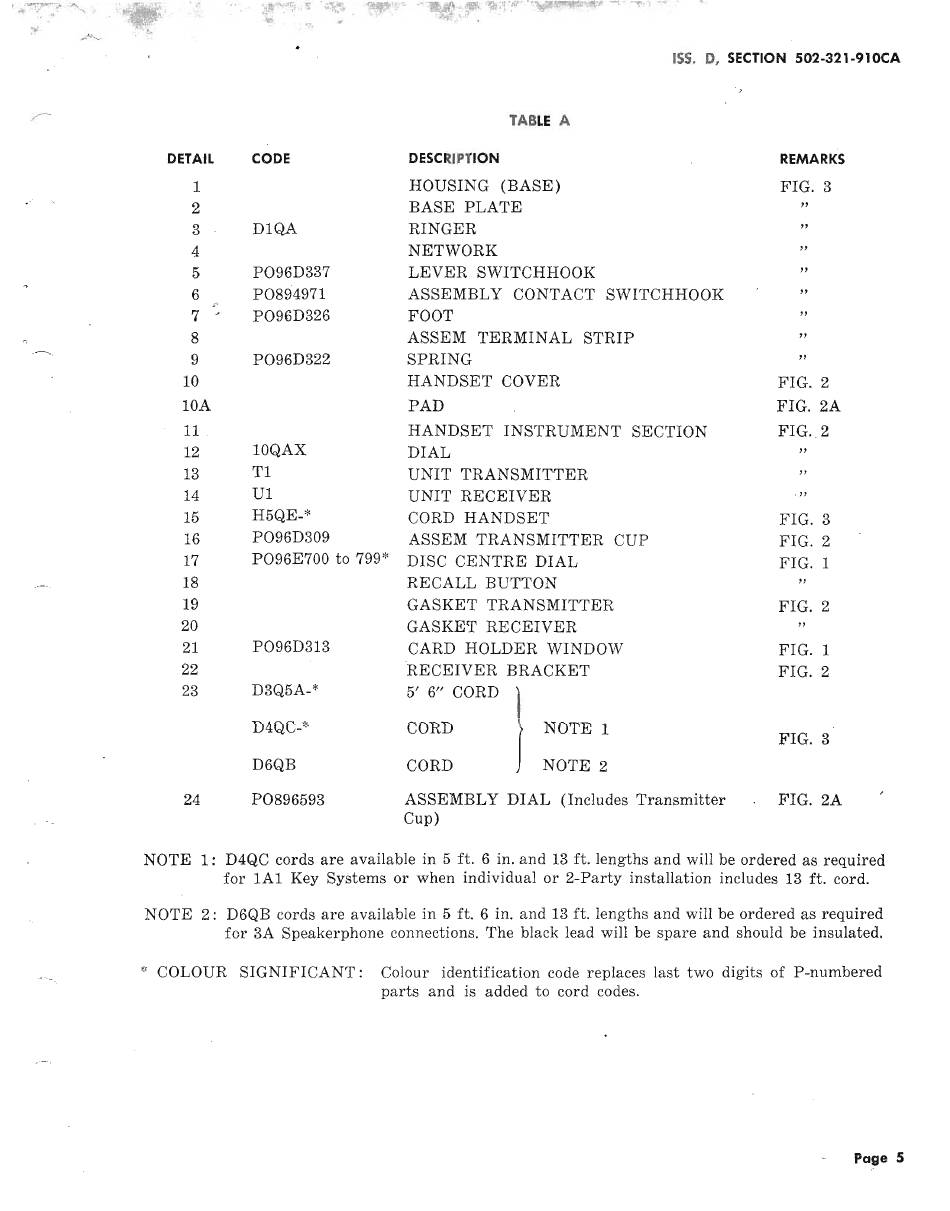

Bell System Practices QSK100AX Manual page 5

ISS. D, SECTION 502-321-910CA
TABLE A
DETAIL
1
2
3
4
5
6
,
7 -
8
9
10
lOA
11
12
13
14
15
16
17
18
19
20
21
22
23
24
CODE
DIQA
P096D337
P0894971
P096D326
P096D322
10QAX
T1
U1
H5QE-*
P096D309
P096E700 to 799*
P096D313
D3Q5A-*
D4QC-*
D6QB
P0896593
DESCRIPTION
HOUSING (BASE)
BASE PLATE
RINGER
NETWORK
LEVER SWITCHHOOK
ASSEMBLY CONTACT SWITCHHOOK
FOOT
ASSEM TERMINAL STRIP
SPRING
HANDSET COVER
PAD
HANDSET INSTRUMENT SECTION
DIAL
UNIT TRANSMITTER
UNIT RECEIVER
CORD HANDSET
ASSEM TRANSMITTER CUP
DISC CENTRE DIAL
RECALL BUTTON
GASKET TRANSMITTER
GASKET RECEIVER
CARD HOLDER WINDOW
RECEIVER BRACKET
5' 6" CORD }
CORD NOTE 1
CORD NOTE 2
ASSEMBLY DIAL (Includes Transmitter
Cup)
REMARKS
FIG. 3
"
"
"
"
"
"
"
"
FIG. 2
FIG.2A
FIG.. 2
"
"
."
FIG. 3
FIG. 2
FIG. 1
"
FIG. 2
"
FIG. 1
FIG. 2
FIG. 3
FIG.2A
NOTE 1: D4QC cords are available in 5 ft. 6 in. and 13 ft. lengths and will be ordered as required
for 1A1 Key Systems or when individual or 2-Party installation includes 13 ft. cord.
NOTE 2: D6QB cords are available in 5 ft. 6 in. and 13 ft. lengths and will be ordered as required
for 3A Speakerphone connections. The black lead will be spare and should be insulated.
*
COLOUR SIGNIFICANT: Colour identification code replaces last two digits of P-numbered
parts and is added to cord codes.
Page 5
