Bell System Practices QSK100AX Manual page 2

SECTION 502-321-91 OCA
2. DESCRIPTION
2.01
The QSK100AX, a two-piece telephone set
(Fig. 1), consisting of base and handset
is a combined desk-waIl-type telephone. When
used as a desk-type telephone, it rests on the
feet provided in the base of the set. When used
as a wall-type set, it is mounted using the mount-
ing holes in the baseplate.
II'
2.02
.The rotary dial, -provided as a component
of the handset, is smaller in diameter than
the dials in general use. A moveable fingerstop
is a feature of the dial that allows the normal
space between the "1" and "0" fingerholes of
the fingerwheel to be:reduced resulting in a more
compact dial.
2.03
A 3 Conductor Mounting Cord is provided
with the set. Other mounting cords, if
required, may be ordered separately. The code
of the cord varies with the service to be provided.
(See Para. 3.03).
2.04
The QSK2100AX Touch-Tone version is
shown in Fig. 1A.
2.05
When these sets are used as a desk set,
the handset, when in place, rests in the
recess provided in the base of the set. When used
as a wall set and the handset is in place, the
lower edge of that portion of the handset that
houses the receiver unit engages a projection
provided as part of the handset recess.
2.06
The transmission circuit is the same as
for the 500-type set.

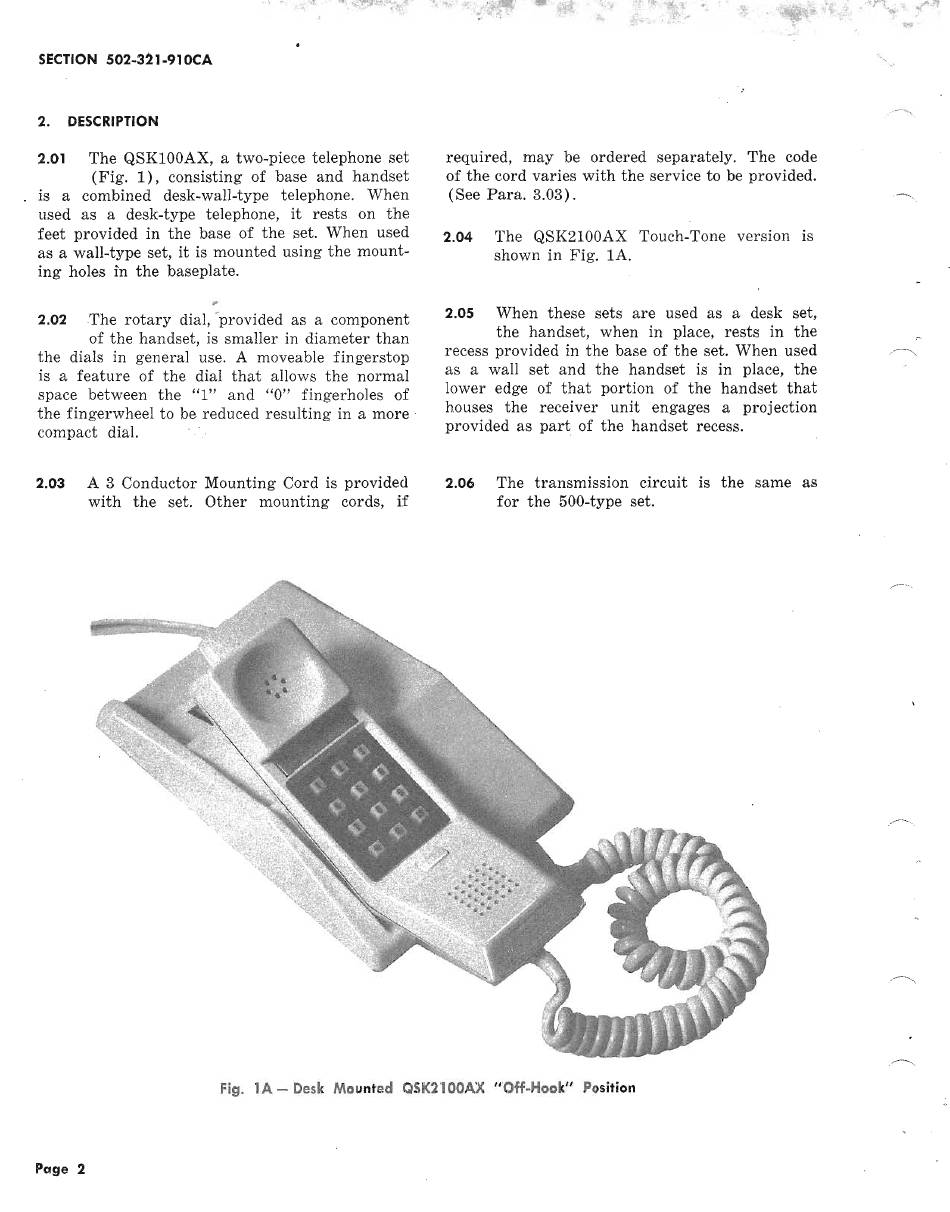

Fig. 1A - Desk Mounted QSK2100AX "Off-Hook" Position
Page 2
('
