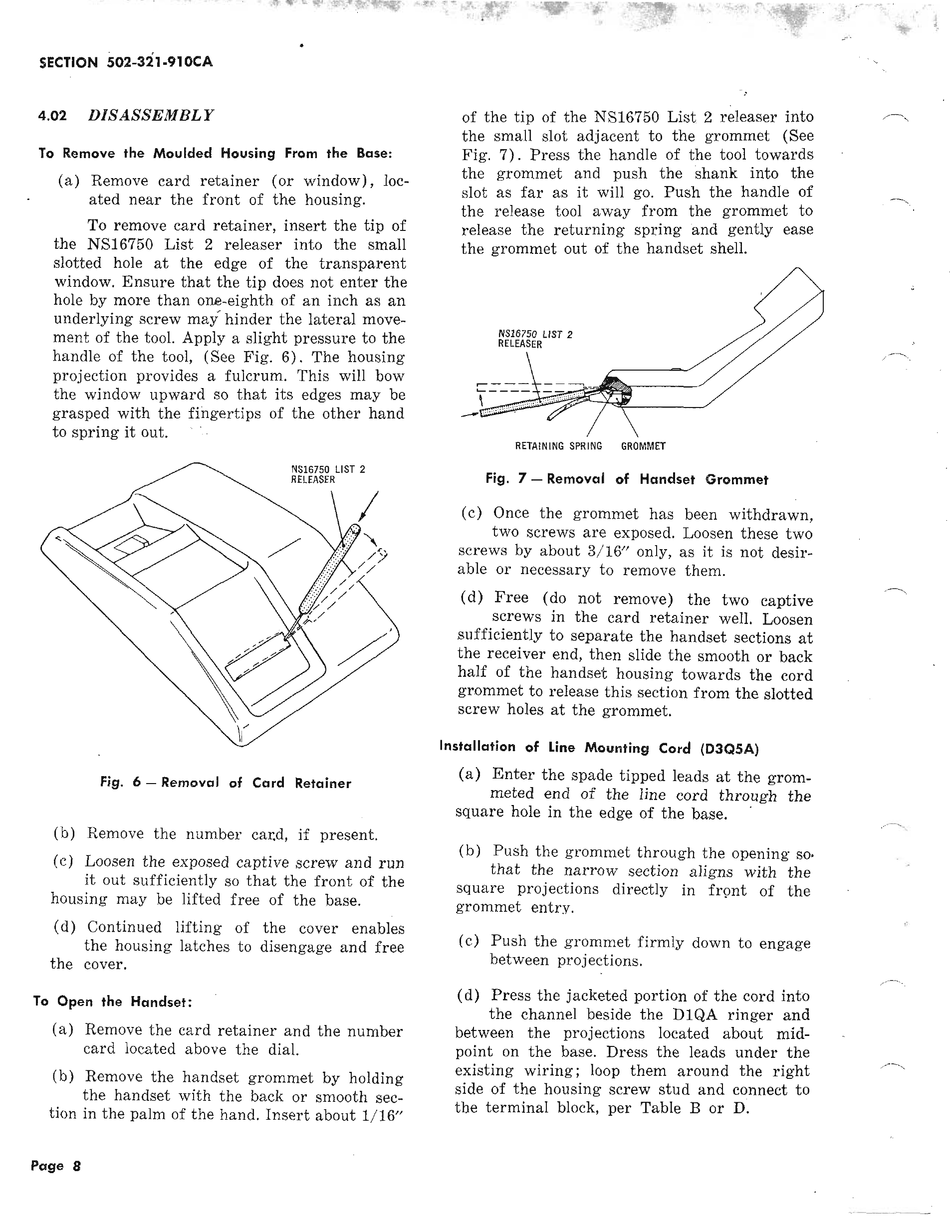

Bell System Practices QSK100AX Manual page 8

SECTION 502-321-910CA
4.02 DISASSEMBLY
To Remove the Moulded Housing From the Base:
(a) Remove card retainer (or window), loc-
ated near the front of the housing.
To remove card retainer, insert the tip of
the NS16750 List 2 releaser into the small
slotted hole at the edge of the transparent
window. Ensure that the tip does not enter the
hole by more than oJ:lk)-eighth of an inch as an
underlying screw may hinder the lateral move-
ment of the tool. Apply a slight pressure to the
handle of the tool, (See Fig. 6).' The housing
projection provides' a fulcrum. This will bow
the window upward so that its edges may be
grasped with the fingertips of the other hand
to spring it out.
, . :,.
Fig. 6 - Removal of Card Retainer
(b) Remove the number car.d, if present.
(c) Loosen the exposed captive screw and run
it out sufficiently so that the front of the
housing may be lifted free of the base.
(d) Continued lifting of the cover enables
the housing latches to disengage and free
the cover.
To Open the Handset:
(a) Remove the card retainer and the number
card located above the dial.
(b) Remove the handset grommet by holding
the handset with the back or smooth sec-
tion in the palm of the hand. Insert about 1/16"
Page 8
of the tip of the NS16750 List 2 releaser into
the small slot adjacent to the grommet (See
Fig. 7). Press the handle of the tool towards
the grommet and push the shank into the
slot as far as it will go. Push the handle of
the release tool away from the grommet to
release the returning spring 'and gently ease
the grommet out of the handset shelL
NS16750 LIST 2
RELEASER
RETAINING SPRING GROMMET
Fig. 7 - Removal of Handset Grommet
(c) Once the grommet has been withdrawn,
two screws are exposed. Loosen these two
screws by about 3/16" only, as it is not desir-
able or necessary to remove them.
(d) Free (do not remove) the two captive
screws in the card retainer well. Loosen
sufficiently to separate the handset sections at
the receiver end, then slide the smooth or back
half of the handset housing towards the cord
grommet to release this section from the slotted
screw holes at the grommet.
Installation of Line Mounting Cord (D3Q5A)
(a) Enter the spade tipped leads at the grom-
meted end of the line cord through the
square hole in the edge of the base.
(b) Push the grommet through the opening so.
that the narrow section aligns with the
square projections directly in fr9nt of the
grommet entry.
(c) Push the grommet firmly down to engage
between projections.
(d) Press the jacketed portion of the cord into
the channel beside the D1QA ringer and
between the projections located about mid-
point on the base. Dress the leads under the
existing wiring; loop them around the right
side of the housing screw stud and connect to,
the terminal block, per Table B or D.
,~.
