METHVEN Maku 01-8567 Installation Manual

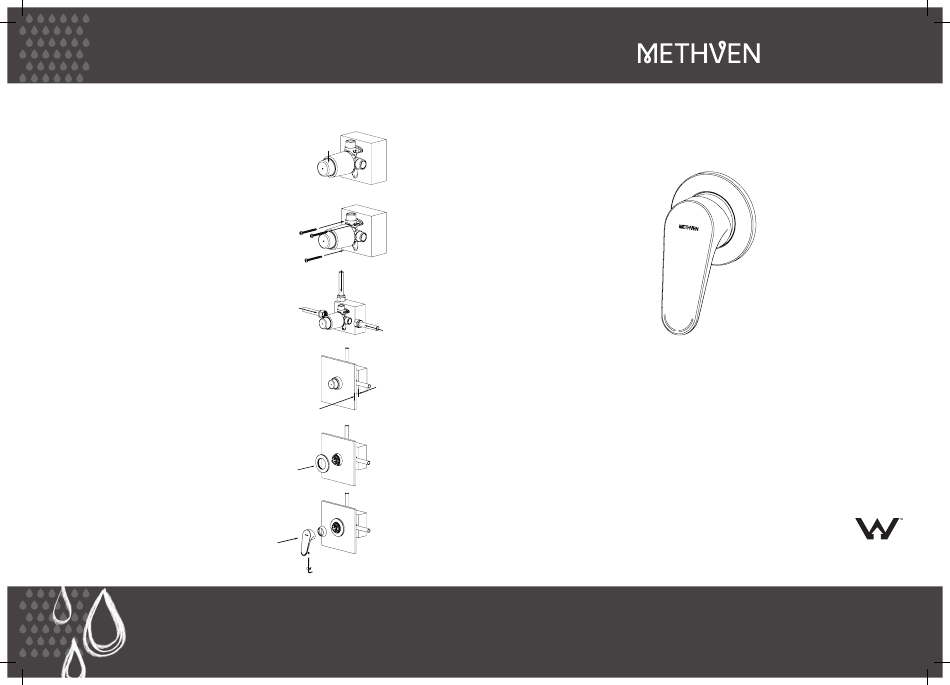

Installation
1. Leave plastic template on body
assembly (1)
2. Screw the body assembly (1) on to the
mounting stud positioned to observe
installation depth, ID (to front of
finished wall lining e.g. tiles) as follows:
Range of Install Depth, ID = 36-66 mm
3. Connect body assembly (1) into system
and replace body assembly cover.
4. Wall lining e.g. tiles should be finished
as close as possible to the plastic
template. Remove plastic template
prior to next step.
5. Lubricate the o-ring in the faceplate
(2). Place faceplate (2) over mixer
body and slide firmly over the mixer
body until flat on the wall surface. It is
recommended that a bead of silicone
sealant is applied to the back of the
faceplate before fixing to the finished
wall surface.
6. Screw half dome (2) on to body
assembly (1). Fit handle (4) and fasten
grub screw (5) with 2.5mm hex key (6).
JUNE 2012
Methven Australia Pty Ltd
ABN 15 104 813 390
Melbourne, Australia
www.methven.com
1.
Plastic Template
2.
3.
Hot
Cold
4.
ID
5.
6.
MA018567

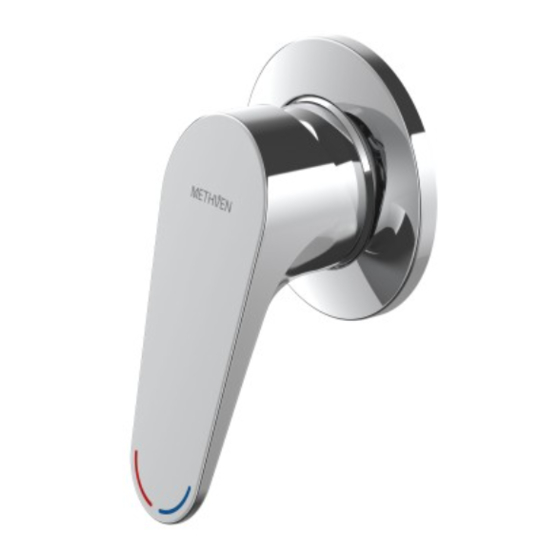

Maku Shower Mixer
01-8567
Installation Guide
IMPORTANT
Please read all of the instructions before installation
Use of this product is recommended for domestic and commercial applications.
All pipework must be thoroughly flushed prior to the installation of the mixer.
Inline filter washers must be installed on both hot and cold supplies to prevent foreign particles
damaging the ceramic cartridge.
Do not remove the ceramic cartridge from the mixer when installing.
Damage caused by hydrostatic testing is not covered by Methven's warranty.
Methven recommends a licensed plumber carry out all installations in compliance with
the requirements of AS/NZS 3500. This product complies with AS/NZS 3718 regulations.
www.methven.com
Customer Care Hotline: 1300 METHVEN (638 483)
Email: info@au.methven.com
WMKA21005
