Connect the hardware

Position the Digi TransPort WR11 on a flat, level surface in a location with adequate ventilation. The unit is designed for indoor use. Do not
expose the unit to extreme heat or cold, strong magnetic fields, or liquids.
Caution Restricted Access Location: Because of the hot metal surface of the enclosure, installations with operating temperatures greater
than 122F (50C) must be limited to Restricted Access Locations accessible only to trained service personnel.

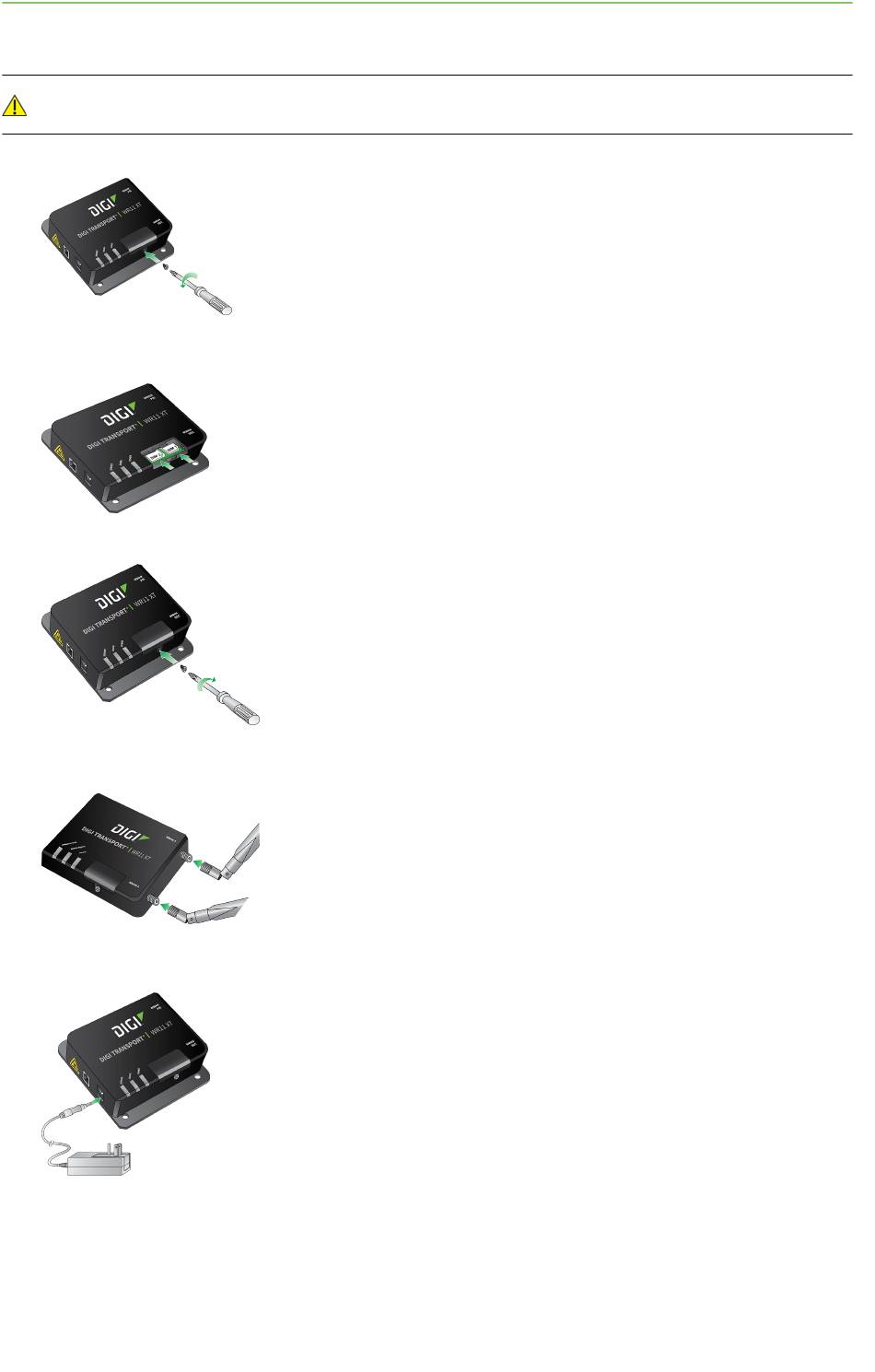

a. Using a screwdriver, remove the SIM slot cover.
b. Insert the SIM card(s) as shown, with the notch facing the bottom-right corner of the device. If you are using only one SIM card, insert it in
the SIM 1 slot.
c. Replace the SIM slot cover.
d. Connect the cellular antenna to the WWAN PRI connector on the unit. If the unit is equipped with a secondary cellular antenna connector,
connect it to the WWAN SEC connector.
e. Connect the plug end of the 5-volt power supply to the power connector on the unit, and plug the other end into a wall outlet.
Alternatively, you can remove the wall plug cover and use the IEC 60320-C6 connector with an AC cord of the same connector type.
f. Connect one end of the Ethernet cable to the Ethernet port on the unit and the other end to an Ethernet port on a PC.
