2.0 The TMS320LF2407 EVM Operation
This chapter describes the LF2407 Evaluation module, its key components, and how
they operate. It also provides information on the EVM's various interfaces. The LF2407
EVM consists of six major blocks of logic.
2.1 The TMS320LF2407 EVM Board
The LF2407 EVM is a 3U sized board which is powered by an external 5 Volt only
power supply. Figure 2-1 shows the layout of the LF2407 EVM.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
• LF2407 external memory
• Digital to Analog Interface
• On Chip Serial Interface
• LEDs and Switches
• On Chip CAN Interface
• Serial boot ROM/ SPI Logging Interface
• Expansion interface
• JTAG Interface

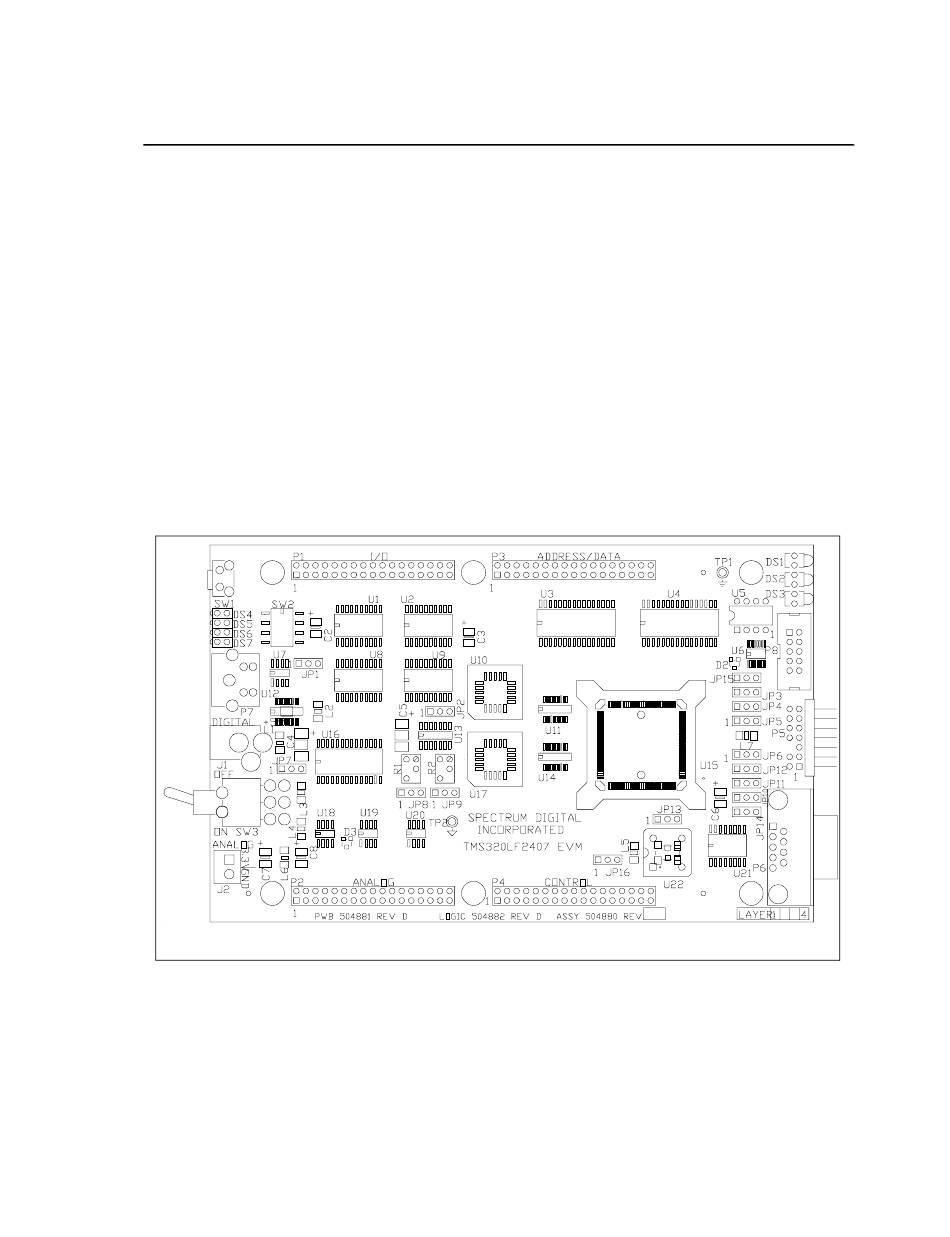

Figure 2-1, TMS320LF2407 EVM
Spectrum Digital, Inc
2-3
