1.2 Functional Overview of the TMS320LF2407 EVM

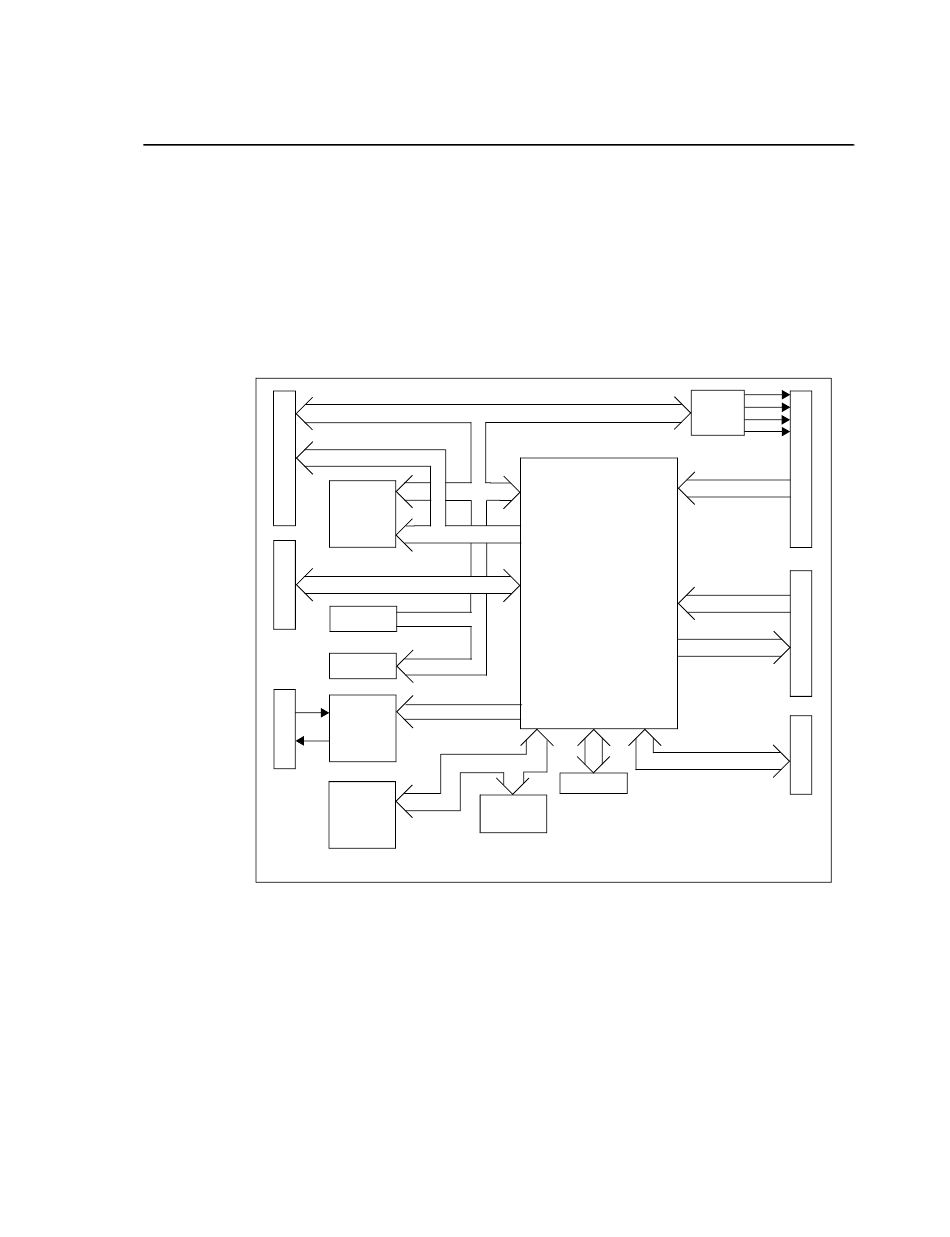

Figure 1-1 shows a block diagram of the basic configuration for the LF2407 EVM. The
major interfaces of the EVM include the target ram, analog interface, CAN interface,
serial boot rom, user leds and switches, RS232 interface, SPI data logging interface,
and expansion interface.
The LF2407 interfaces to 128K Words of zero wait-state static memory. An external I/O
interface supports 65,000 parallel I/O ports. An onchip CAN and RS232 serial port are
available on the expansion connector.
A
D
D
R
E
S
S
/
D
A
T
A
P
3
C
O
N
T
R
O
L
P
4
C
A
N
I
/
F
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
SRAM
128K x 16
SWITCHES
LEDs
CAN
DRIVER
SERIAL
LOGGING
BOOT
INTERFACE
ROM
Figure 1-1 BLOCK DIAGRAM TMS320LF2407 EVM
Spectrum Digital, Inc
DAC7625
ANALOG
DATA
ADDRESS
TMS320LF2407
CONTROL
PWM/IO
I/O
SPI
JTAG
UART
JTAG P5
A
N
A
D/A
L
O
G
E
X
P
A
N
S
I
O
N
P
2
I
/
O
E
X
P
A
N
S
I
O
N
P
1
S
E
R
I
A
L
P
6
1-3
