The instrument's memory makes it possible to store up to 4 holiday
periods + 20 holiday days.

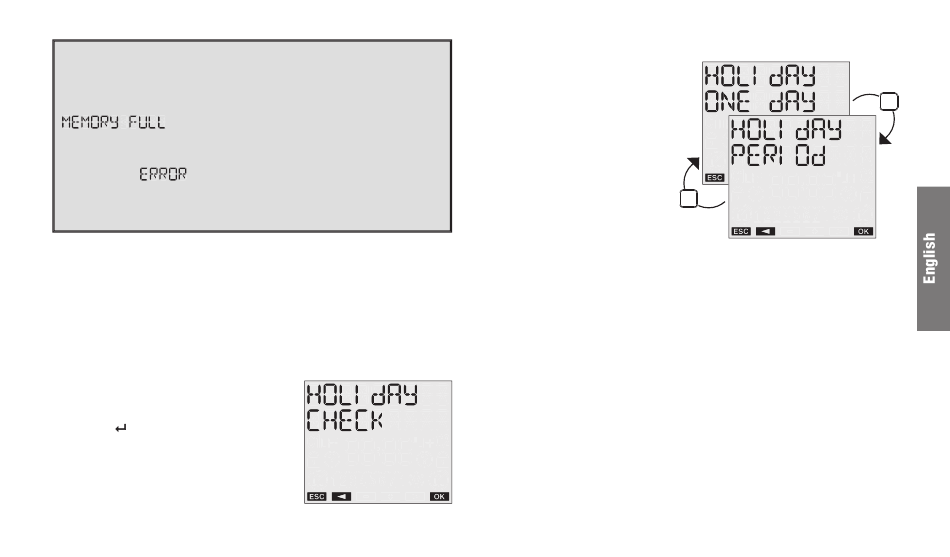

Once the maximum capacity is reached, an attempt to store an
additional program will cause the following message to be displayed
. In this case, a program stored in the memory
must be deleted before entering a new one.
The message appears on the display if you try to enter a
holiday period that overlaps with a period that was already entered,
or if the last holiday date is before the start date.
2.2 Checking a program
This menu can be used to display, modify or delete a holiday program
saved in the instrument.
2.2.1 Displaying a program HOLIDAY
From the normal operating status:
➢ Press " " to access the menu and
select PROGRAM with "C1" and "C2"
➢ Confirm with "Ok"
➢ Select PROGRAM HOLIDAY and press
"Ok" to confirm
➢ Select HOLIDAY CHECK and press
"Ok" to confirm
➢ Choose the relay onto which
to visualize the program
holiday with "C1" and "C2"
(only for GLX+Q 1 2COM 16A
2M AST IR)
➢ Select between
HOLIDAY ONE DAY
and HOLIDAY PERIOD
and press "Ok"
to confirm
In case of HOLIDAY ONE DAY it is possible scrool the programs using
"C1" and "C2" keys. In case of HOLIDAY PERIOD the instrument shows
the start day of the first holiday period, press "C2" to visualize the end
of the period.
At this point, pressing "Ok" it is possibile access to options of modify,
delete or next holiday period.
2.2.2 Changing a program HOLIDAY
A program can be changed from the program display status.
➢ Select the holiday program to change and press "Ok"
➢ Select MODIFY with "C1" and "C2"
and press "Ok" to confirm
