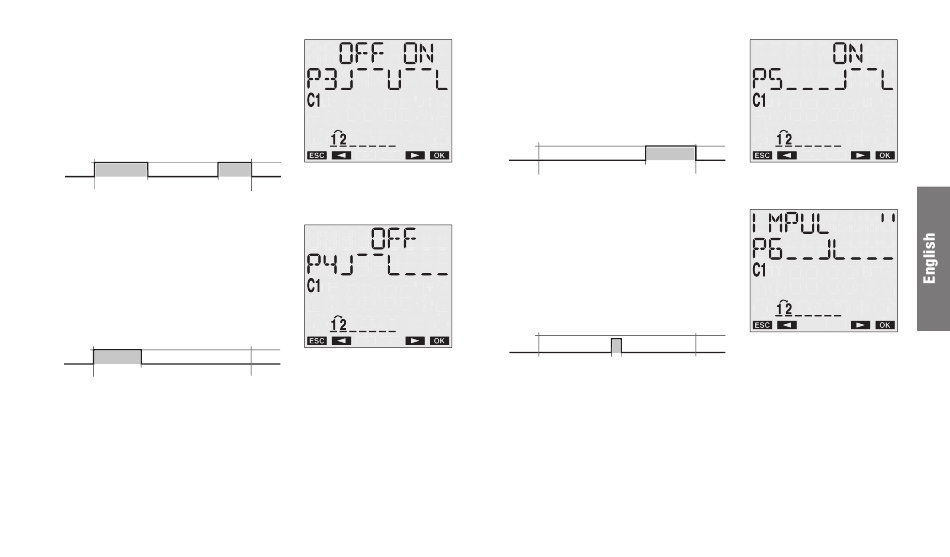

P3 program
This program sets switch on at sunset
and switch off at dawn, with a night-time
interruption in which the relay is temporarily
in the off position.
P3
P3 OFF P3 ON
Sunset
P4 program
This program sets switch on at sunset
and switch off during the night, at a
programmable time (before dawn).
P4
P4 OFF
Sunset
ON
OFF
Sunrise
ON
OFF
Sunrise
P5 program
This program sets switch on at a
programmable time (after sunset) and
switch off at dawn.
P5
Sunset
P6 program
This program sets an on impulse during
the night with programmable initial time
and duration of the impulse. The impulse's
maximum duration is 59 seconds.
P6
Sunset P6 OFF
P6 ON
Note: the relay 2 has a program set to P1 (it cannot be modified).
The selection of the night-time behaviour is therefore only limited
to relay 1.
Note: the dawn and sunset times are automatically calculated
by the instrument on the basis of the astronomical coordinates
entered and of any time adjustments (see chapter "Settings").
