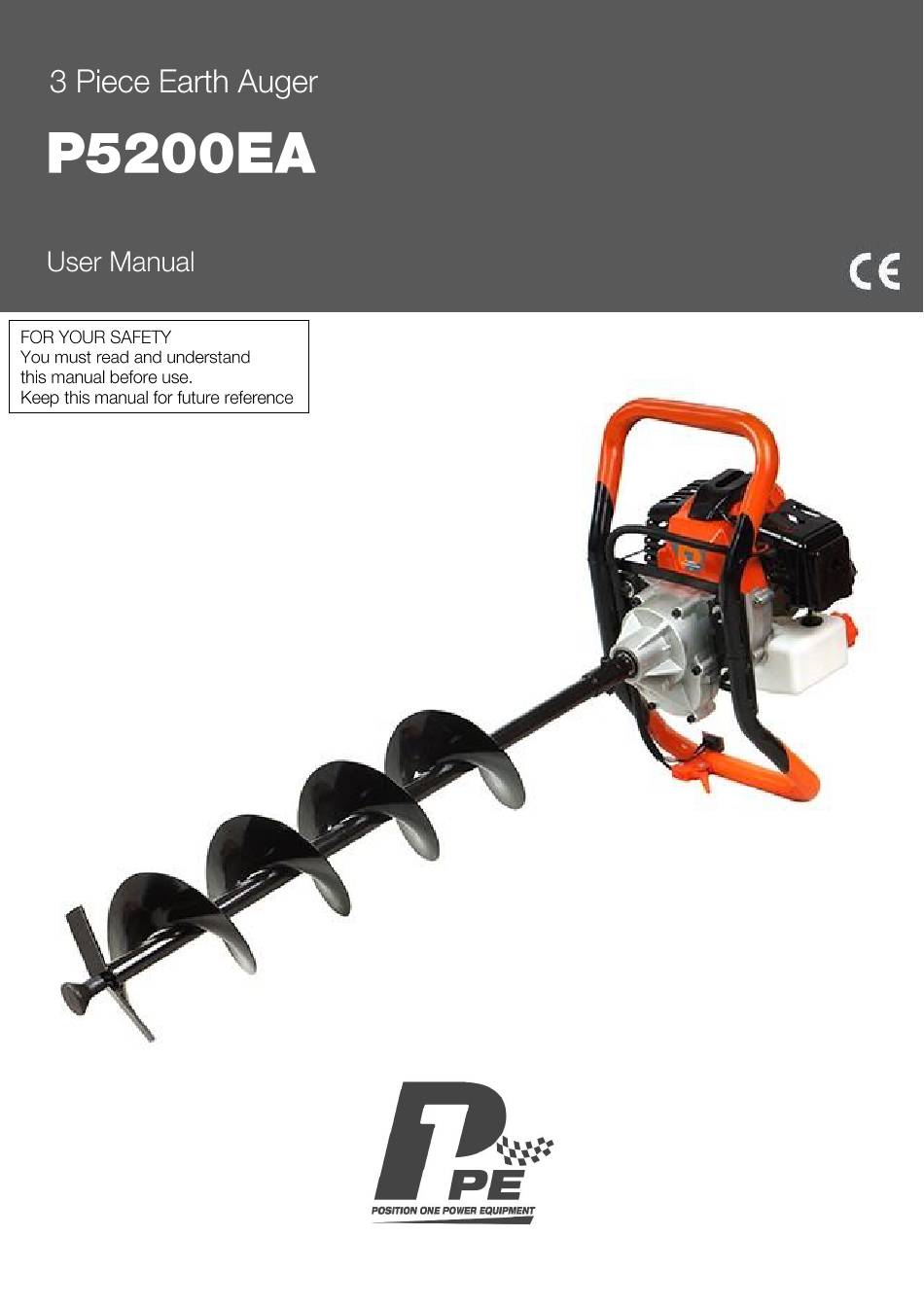

P1PE P5200EA User Manual

3 piece earth auger
Hide thumbs Also See for P5200EA:
Table of Contents

Advertisement

Quick Links

Download this manual
.
1

Advertisement

Table of Contents
loading

Related Manuals for P1PE P5200EA

Summary of Contents for P1PE P5200EA

  • Page 2: Table Of Contents

    INDEX CONTENTS PAGE NO.S 3 – 8 SAFETY PART LOCATIONS 10 – 11 ASSEMBLY 11 – 12 FUELING 12 – 14 STARTING PROCEDURE STOPPING PROCEDURE USING THE MACHINE 15 - 17 18 – 22 MAINTENANCE & TRANSPORT STORAGE & WINTERIZATION TROUBLESHOOTING SPECIFICATION DECLARATION OF CONFORMITY...

  • Page 3: Safety

    1. SAFETY General Safety Notes. The operator of the machine is responsible for, and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Keep the manual safe and pass it on if the machine is loaned or sold to another user.
  • Page 4 1.10 Carbon Monoxide (where applicable). 1.11 Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.12 The symptoms of carbon monoxide poisoning can include but are not limited to the following;...

  • Page 5: Safety

    1.16 Get them fresh air immediately, by leaving the affected area or by opening doors and windows. If safe and practical to do so make sure that the machine is turned off. DO NOT enter a room you suspect of having carbon monoxide present – instead call the emergency services.
  • Page 6 1.43 Prior to use and with all electrical supplies isolated, you MUST check all electrical cables, plugs and connectors for the following; 1.44 Are intact and have no signs of damage, to include but not limited to bare wires, chaffing, cuts and loose wiring. 1.45 If there are any signs of damage, the damage item MUST be taken out of service until the damage has been repaired by an electrically competent person.
  • Page 7 finger. Note the following to reduce the risk of white finger and carpal tunnel syndrome; 1.63 Wear gloves and keep your hands warm. 1.64 Take regular breaks. 1.65 All of the above precautions may help reduce the risk of white finger disease but not rule out the carpal tunnel syndrome.
  • Page 8 1.89 NEVER run the engine indoors. The exhaust gasses contain harmful carbon monoxide. 1.90 When using this machine for the first time and before actual work, you MUST learn how to handle the machine from an experienced or skilled person. 1.91 Limit the amount of time using the machine continuously to somewhere around 10 minutes per session and take 10 to 20 minutes of rest between sessions.

  • Page 9: Part Locations

    2. PART LOCATIONS Drive Unit Locking Pin Auger Drill Bit Ø 100mm Choke Lever Auger Drill Bit Ø 150mm Air Filter Housing Auger Drill Bit Ø 200mm Spark Plug Main Handle Fuel Tank Operating Handle Fuel Filler Cap Throttle Trigger Fuel / Oil Mixing Bottle ON / OFF Switch Tool Kit...

  • Page 10: Assembly

    Always handle with extreme care and in a well ventilated area. Assembly and Starting Procedures are also available via the P1PE YouTube channel. Simply search for P1PE on YouTube. Place the auger on a flat level surface (1). Locate the hole in the shaft of the main auger unit (2).

  • Page 11: Fueling

    Insert the locking pin into the hole in the locking bolt (7). Slide through until it locks into place (8). The auger should now be fully assembled (9). 4. FUELLING NOTE This machine uses a 2 Stroke Fuel Mixture at a ratio of 40:1. Failure to use the correct fuel/2stroke oil mixture will result in engine damage that will not be covered by the warranty.

  • Page 12: Starting Procedure

    Unscrew the fuel filler cap (1). Slowly fill with a 40:1 ratio of 2 stroke fuel/oil mixture and leave a 25mm gap between the fuel and the top of the fuel tank (2). Refit the fuel filler cap securely (3). 5.
  • Page 13 Hold the trigger lock down on the main control handle (4). Lift the throttle trigger (5). Holding the auger firmly, gently pull the recoil starter handle until you feel resistance and then pull swiftly until the engine attempts to start (6). Move the choke lever to the OFF (run) position (7).

  • Page 14: Stopping Procedure

    Lift the throttle trigger (12). Holding the auger firmly, gently pull the recoil starter handle until you feel resistance and then pull swiftly until the engine starts (13). 6. STOPPING PROCEDURE Release the throttle lever and throttle lock lever (1). Allow the engine to idle for 30 seconds.

  • Page 15: Using The Machine

    7. USING THE MACHIINE WARNING You MUST STOP using the machine if any of the following occur. The engine speed changes with no control. In case of misfire In case of high vibration. When flames or smoke appear. In rain or adverse weather conditions. CAUTION If you are not familiar with this type of machine you should seek advice and guidance from your dealer.
  • Page 16 6.14 DO NOT put your hands or feet near rotating parts. Failure to do this could result in serious injury or death. 6.15 DO NOT touch or allow clothing or other flammable materials to come into contact with the engine exhaust. This part gets extremely hot during operation.
  • Page 17 6.31 NEVER attempt to unclog either the auger drill bit while the engine is running. Immediately shut off the engine. Allow the auger drill bit to come to a complete stop. Remove the clogged material. Inspect for damage and check for any loose parts for repair or replacement.

  • Page 18: Maintenance & Transport

    8. MAINTENANCE WARNING ONLY carry out maintenance and servicing if you are qualified to do so. ALWAYS stop the engine and remove the spark plug HT lead cap before doing any repairs or maintenance. NEVER touch the rotating auger bit. Check and maintain fuel levels regularly and maintain the fuel/oil mix to the correct ratio.
  • Page 19 SPARK PLUG CAUTION The spark plug must be tightened with a torque of 12-15Nm otherwise the engine could overheat causing damage. Only complete the following steps once the engine has been turned off and allowed to cool. Carefully remove the spark plug HT lead cap (1). Unscrew the spark plug in an anti-clockwise direction using the plug wrench provided (2).
  • Page 20 FUEL FILTER NOTE A clogged fuel filter can cause lack of power or poor pick up. 7.10 Remove the fuel filler cap (1) and drain the fuel into a suitable container. 7.11 Using a wire hook (2), gently pull the fuel line and fuel filter out of the fuel filler neck (3). 7.12 If the fuel filter is damaged or degraded, replace immediately.
  • Page 21 AIR FILTER NOTE NEVER let the engine run without the air filter being installed. A dirty air filter affects the engine performance, increases fuel consumption and makes it difficult to start. You MUST make sure that the air filter housing is free of dust and debris. DO NOT allow any dust or debris to enter the carburetor.
  • Page 22 CLEANING NOTE DO NOT use a pressure washer or hose pipe to clean the machine. Water could penetrate the engine and cause permanent damage that will not be covered by the warranty. DO NOT use solvent based cleaning products on plastic parts. 7.29 Clean the machine and its accessories thoroughly after every use.

  • Page 23: Storage & Winterization

    9. STORAGE & WINTERIZATION NOTE If the auger is to be stored for a period of more than 30 days or for winter, it is important to follow the instructions below to prevent causing starting issues or permanent damage to the engine. Failure to follow the correct procedure may result in invalidating your warranty.

  • Page 24: Troubleshooting

    10. TROUBLESHOOTING NOTE If troubleshooting does not resolve the problem, please contact the dealer. Use only original parts approved by the manufacturer, otherwise a hazard risk arises. Problem Possible Cause Possible Corrective Action Clean or replace the spark Worn, Damaged or Carbon plug.

  • Page 25: Specification

    11. SPECIFICATION MODEL P5200EA Engine Type Single Cylinder, 2 Stroke Air Cooled 1E43F-B Engine Size cc Fuel Tank Capacity ml Noise Level dB Max Speed rpm 9000 Max Power kW Starting Method Recoil Clutch Type Centrifugal 2 Stroke Semi Synthetic Oil and Unleaded fuel...

  • Page 26: Declaration Of Conformity

    12. DECLARATION OF CONFORMITY Genpower Ltd confirms that these Hyundai products conform to the following CE Directives; 2006/42/EC Machinery Directive 2004/10/EC EMC Directive 2000/14/EC Noise Emissions Device 97/68/EC NRMM Emissions Directive...

  • Page 27: Product Disposale & Recycling

    13. RECYCLING & PRODUCT DISPOSAL We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and or Batteries is passed onto you by So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site.

  • Page 28: Manual Updates

    We reserve the right to make any modifications without prior notice wherever necessary. 15. WARRANTY To register your machine for the manufacturer’s warranty, please visit: 11.0 http://www.p1pe.co.uk/warranty 16. CONTACT DETAILS Postal Address: Genpower Ltd, Isaac Way, London Road, Pembroke Dock,...
