Summary of Contents for Audiotec Fischer MATCH MA 10FX

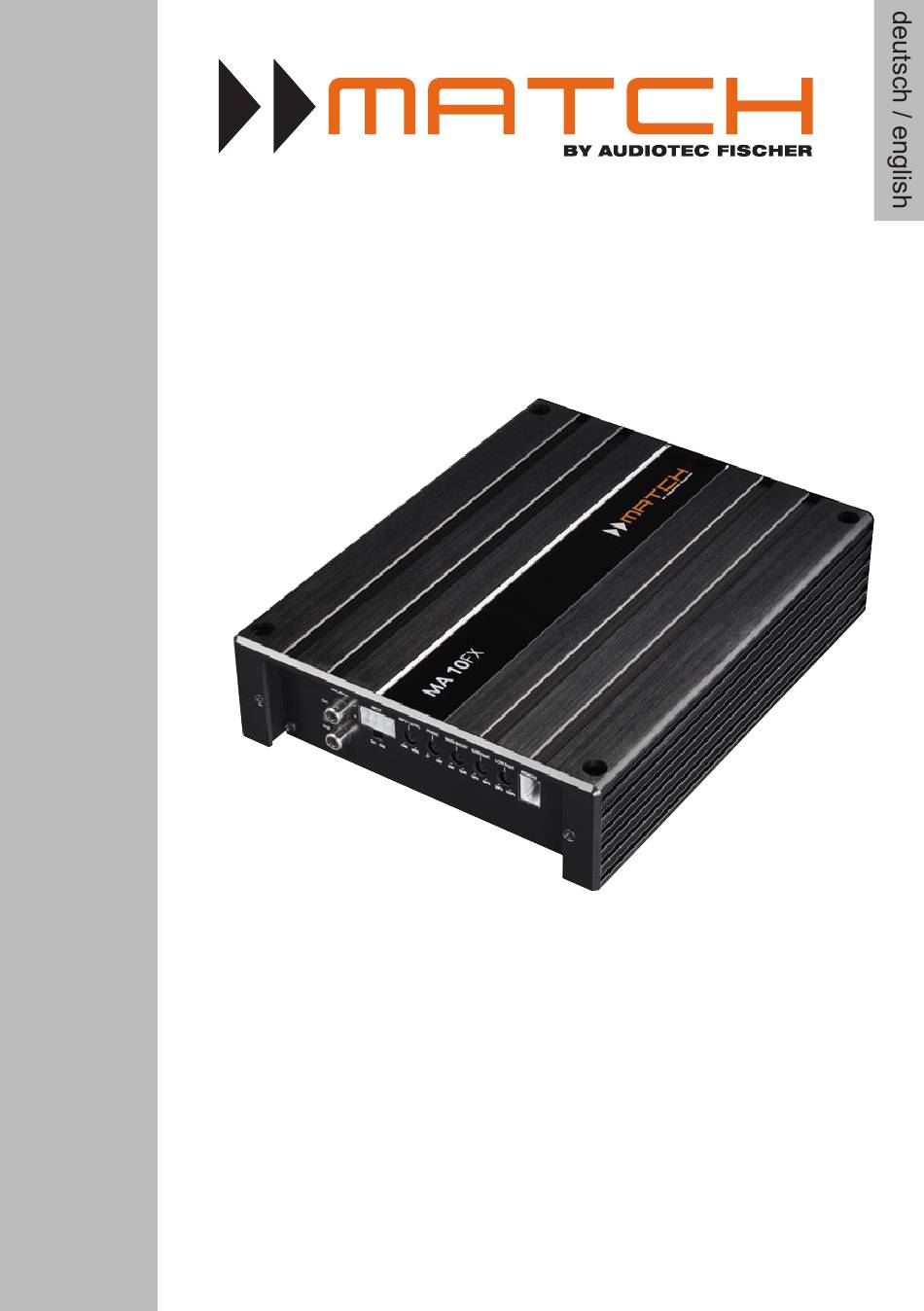

  • Page 1 MA 10FX 1-Kanal Verstärker 1-channel amplifier...
  • Page 2: Herzlichen Glückwunsch

    Dieser Verstärker wurde nach neuesten tech- Team von nischen Erkenntnissen entwickelt und zeichnet sich durch hervorragende Verarbeitung und überzeu- AUDIOTEC FISCHER gende Technologie aus. Dabei profitieren Sie als Kunde direkt von unserer über 30-jährigen Erfah- Allgemeine Hinweise Allgemeines zum Einbau von MATCH-Kompo-...
  • Page 3: Anschluss- Und Bedienelemente

    Anschluss- und Bedienelemente Speaker Output Fuse Lautsprecherausgang für den Anschluss Eingangssicherungen - 2 x 25 Ampere eines Subwoofers + 12V Power & Protect LED Anschluss für das + 12V Versorgungskabel Die Power & Protect LEDs zeigen den Be- triebszustand des Verstärkers an. Leuchtet Anschluss für die Remoteleitung die Power LED ist der Verstärker eingeschal- tet, leuchtet die Protect LED wurde eine der...
  • Page 4: Speaker Output

    Verstärkers. Die MATCH MA 10FX besitzt Stereo-Cinch-Eingän- Diese Fehlfunktion kann unterschiedliche Ursachen ge (2 RCA-Anschlüsse) als Signaleingänge, die mit haben, da die MATCH MA 10FX mit verschiedenen dem/den Vorverstärkerausgang/-ausgängen bzw. elektronischen Schutzschaltungen ausgestattet ist. Line Outputs des Steuergerätes (Radio, Prozessor, Diese schalten den Verstärker bei Überhitzung,...
  • Page 5: Input Level

    Verstärker bei allen handelsüblichen Radios auto- Subsonic matisch ein, so dass der Verstärker nicht über den Mit Hilfe dieses Reglers kann der Subsonic-Filter Remote-Eingang eingeschaltet werden muss. von 10 bis 50 Hz eingestellt werden. Dieses Filter dient dazu, sehr tiefe Frequenzen außerhalb des 9 Input Level Hörspektrums herauszufiltern und so den Sub- Mit Hilfe dieses Reglers kann die Eingangsempfind-...
  • Page 6: Technische Daten

    Technische Daten Ausgangsleistung RMS / Max: • an 4 Ohm ..............1 x 300 / 600 Watt • an 2 Ohm ..............1 x 500 / 1000 Watt Frequenzbereich..............10 Hz - 250 Hz Klirrfaktor (THD) ..............< 0,3% Signal-/Rauschabstand ...........> 85 dB Dämpfungsfaktor .............> 100 Eingangsempfindlichkeit Cinch........0,4 - 6 Volt Eingangsempfindlichkeit Highlevel ........1 - 15 Volt Eingangsimpedanz Cinch ..........30 kOhm...
  • Page 7: General Instructions

    To prevent damage to the unit and possible injury, The MATCH MA 10FX amplifier may only be in- read this manual carefully and follow all installati- stalled in motor vehicles which have a 12 Volt minus on instructions. This product has been checked for pole connected to the chassis ground.
  • Page 8 Connectors and control units Fuse Speaker Output Input fuses - 2 x 25 Ampere speaker terminal for connecting a subwoofer + 12V Power & Protect LED power terminal for + 12V battery cable These two LEDs indicate the operating mode of the amplifier.
  • Page 9: Initial Start-Up And Functions

    (max. distance from battery: 30 cm / 12“). The We recommend to operate the high level input only MATCH MA 10FX is equipped with 2 x 25 Ampere with the enclosed connecting cable or with a fuses.
  • Page 10: Bass Boost

    9 Input Level Subsonic The control can be used to match the input sensiti- This control is used to adjust the crossover fre- vity of the individual channels to the output voltage quency of the subsonic filter (high pass filter) from of the connected head unit.
  • Page 11: Technical Data

    Technical Data Output power RMS / Max: • at 4 Ohms ..............1 x 300 / 600 Watts • at 2 Ohms ..............1 x 500 / 1000 Watts Frequency response ............10 Hz - 250 Hz Total harmonic distorcion (THD) ........< 0,3% Signal-to-noise ratio............>...
  • Page 12 Audiotec Fischer GmbH Gewerbegebiet Lake II · Hünegräben 26 · D-57392 Schmallenberg Tel.: +49 2972 9788 0 · Fax: +49 2972 9788 88 E-mail: match@audiotec-fischer.com · Internet: www.audiotec-fischer.com...
