Audiotec Fischer MATCH UP 1FX Manual

Audiotec Fischer MATCH UP 1FX Manual

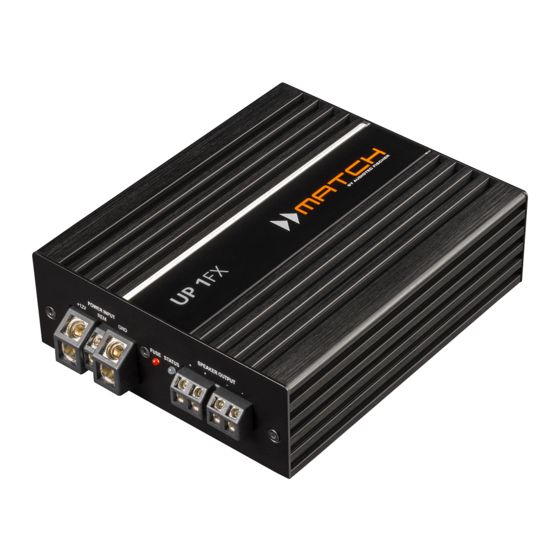

1-channel upgrade subwoofer amplifier with integrated crossover and 1 ohm stability
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

UP 1FX
U P G R A D E
1-Kanal Upgrade-Subwoofer-Verstärker mit
integrierter Frequenzweiche und 1 Ohm Stabilität
1-channel upgrade subwoofer amplifier with
integrated crossover and 1 Ohm stability

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MATCH UP 1FX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Audiotec Fischer MATCH UP 1FX

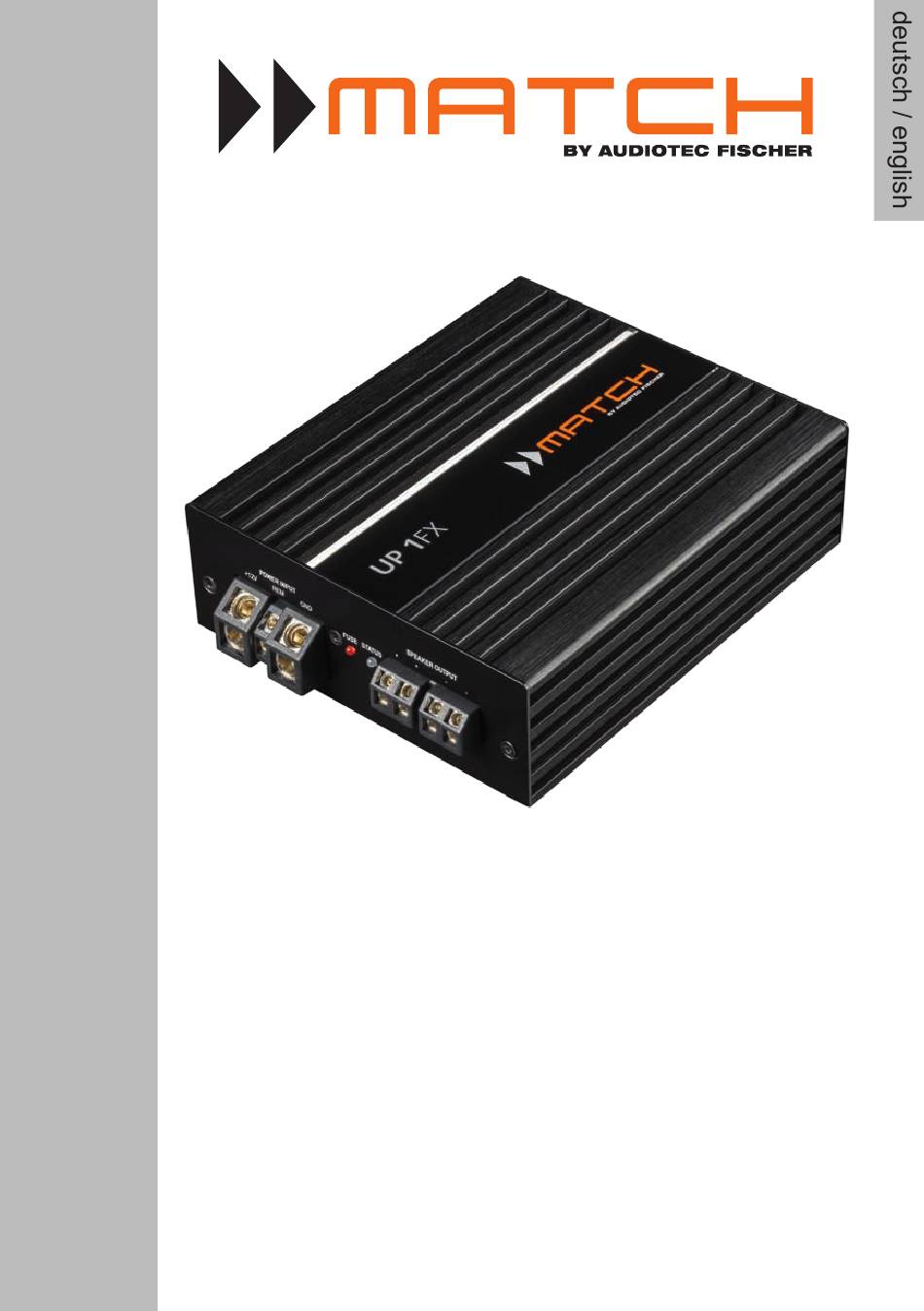

  • Page 1 UP 1FX U P G R A D E 1-Kanal Upgrade-Subwoofer-Verstärker mit integrierter Frequenzweiche und 1 Ohm Stabilität 1-channel upgrade subwoofer amplifier with integrated crossover and 1 Ohm stability...
  • Page 2: Herzlichen Glückwunsch

    Verarbeitung MATCH Verstärkers. und eine überzeugende Anwendung ausgereifter Technologien aus. Audiotec Fischer setzt mit der UP 1FX neue Maßstäbe im Bereich der Verstärkertechnik. Viel Freude an diesem Produkt wünscht Ihnen das Dabei profitieren Sie als Kunde direkt von unserer Team von mehr als 30-jährigen Erfahrung in der Forschung...
  • Page 3: Anschluss- Und Bedienelemente

    Anschluss- und Bedienelemente Highlevel-Lautsprechereingänge Filter-Modus-Schalter Seite 5, Punkt 3 Seite 5, Punkt 4 Tiefpassfilter-Regler (LPF) Anschluss Stromversorgung & Remote Seite 7, Punkt 1 Seite 5, Punkt 5 Fernbedienungs-Eingang Kontroll LED für die internen Sicherungen Seite 7, Punkt 2 Seite 7, Punkt 4 Clipping LED Status LED Seite 7, Punkt 3...
  • Page 4: Hardware-Konfiguration

    Hardware-Konfiguration Konfigurieren Sie den MATCH UP 1FX Verstär- risierten MATCH Fachhändler zu wenden. ker in der nachfolgenden Reihenfolge Wenn Sie unsicher sind, empfehlen wir, den Jumper auf den „High Voltage Range“ (Cinch Achtung: Für die Durchführung der nachfolgenden 1 - 6 V / Highlevel 6 - 32 V) einzustellen, um Schritte werden Spezialwerkzeuge und Fachwissen mögliche Schäden am Gerät zu vermeiden.
  • Page 5 2. Anschluss des Lowlevel-Vorverstärkerein- Frequenzweiche zu umgehen. Mit Hilfe des gangs X-Over-Schalters (Seite 3, Punkt 1) kann die Der Vorverstärkereingang (Line Input) kann mit Funktion aktiviert bzw. deaktiviert werden. einem entsprechenden Kabel an den RCA / DirectDSP: Die interne Frequenzweiche ist Cinch-Ausgang der Signalquelle (bspw.
  • Page 6 Hardware-Konfiguration REM: Der Remote-Eingang dient zum Ein- und Sollte die Signalquelle eine niedrigere Aus- Ausschalten der UP 1FX. Dieser wird mit dem gangsspannung liefern, kann die Eingangs- Remote-Ausgang der unmittelbar vorgeschal- empfindlichkeit über den Gain-Regler stufenlos angehoben werden. teten Komponente, welche das Eingangssignal für die UP 1FX liefert, verbunden.
  • Page 7: Weitere Funktionen

    von Plus und Minus hat einen Totalverlust der 8. Filtereinstellungen Basswiedergabe zur Folge. Der Pluspol ist bei Sofern Sie die DirectDSP-Funktion (siehe den meisten Lautsprechern gekennzeichnet. Seite 5, Punkt 4) aktiviert haben, müssen die Die Impedanz darf 1 Ohm nicht unterschreitenn, Übernahmefrequenzen für den Subsonic bzw.
  • Page 8 Konfigurationsbeispiele Hinweis: Sofern Sie die DirectDSP-Funktion aktiviert haben, müssen Sie die Übernahmefrequenzen für den Subsonic bzw. Tiefpass mit Hilfe eines vorgeschalteten DSPs oder DSP-Verstärkers einge- stellt werden. Mono-Subwooferanwendung Subwoofer mit einer Schwingspule (Single Voice Coil) RMS-Ausgangsleistung ≤ 1% THD+N: 1 x 4 Ohm: 350 Watt 1 x 2 Ohm: 600 Watt 1 x 1 Ohm: 900 Watt Parallelbetrieb...
  • Page 9 Reihenbetrieb Zwei identische Subwoofer mit einer Schwingspule (Single Voice Coil) oder ein Subwoofer mit Doppelschwingspule (Dual Voice Coil) werden in Reihe geschaltet. Hinweis: Die Reihenschaltung von zwei Schwingspulen führt zur Verdopplung der Impedanz! RMS-Ausgangsleistung ≤ 1% THD+N: entsprechen einer Zwei Subwoofer 1 x 2 Ohm Zwei Subwoofer mit einer...
  • Page 10: Technische Daten

    Technische Daten Leistung RMS (≤ 1% THD+N) - @ 4 Ohm ..............1 x 350 Watt - @ 2 Ohm ..............1 x 600 Watt - @ 1 Ohm ..............1 x 900 Watt* Max. Leistung ............... Bis zu 1.000 Watt RMS @ 1 Ohm Verstärkertechnologie ...........Class D Eingänge ..............
  • Page 11: General Instructions

    Congratulations on your purchase of this innovative We wish you many hours of enjoyment with your and high-qual ity MATCH product. new MATCH UP 1FX. Thanks to more than 30 years of experience in research and development of audio products this...
  • Page 12 Connectors and control units Highlevel speaker input Filter mode switch Page 14, point 3 Page 14, point 4 Lowpass filter control (LPF) Power & remote connector Page 16, point 1 Page 14, point 5 Remote control input Control LED for internal fuses Page 16, point 2 Page 16, point 4 Clipping LED...
  • Page 13: Hardware Configuration

    Hardware configuration Configure the MATCH UP 1FX as follows avoid potential damage to the device. To do this, the jumper must be moved to the facto- Caution: Carrying out the following steps will ry-unused multi-pin connector, as shown in require special tools and technical knowledge. In figure 2.
  • Page 14 5. Connection to power supply & remote 18 max.). Make sure to disconnect the battery before The Highlevel Input is equipped with our pro- installing the MATCH UP 1FX! prietary ADEP.3 circuit (Advanced Diagnostics Ensure correct polarity. Error Protection 3rd generation) which ensures +12 V: Connector for the positive cable.
  • Page 15 This input does not need to be assigned if the the correct configuration of the “Voltage Range” highlevel input is used. jumper must be checked. We do not recommend controlling the remote If you are not sure regarding the signal source’s input via the ignition switch to avoid pop noise during turn on / off.
  • Page 16: Additional Functions

    Additional functions 1. Lowpass filter control (LPF) 5. Status LED This control allows you to adjust the lowpass fil- The Status LED indicates the operating mode ter of the bandpass between 50 Hz and 250 Hz. of the amplifier. The control is activated when the X-Over switch Green: The amplifier is ready for operation.
  • Page 17: Configuration Examples

    Configuration examples Note: If you have activated the DirectDSP function, the crossover frequencies for the subsonic or lowpass must be set in the preconnected DSP / DSP amplifier. Mono subwoofer application Subwoofer with one voice coil (single voice coil) RMS output power ≤ 1% THD+N: 1 x 4 Ohms: 350 Watts 1 x 2 Ohms: 600 Watts 1 x 1 Ohm: 900 Watts...
  • Page 18 Configuration examples In series Two subwoofers with one voice coil (single voice coil) or one subwoofer with dual voice coil are connected in series. Note: The connection of two voice coils in series will result in doubling the impedance! RMS output power ≤ 1% THD+N: Two subwoofers with 1 x 2 Ohms correspond to a total impedance of 4 Ohms: 350 Watts Zwei Subwoofer mit einer...
  • Page 19: Technical Data

    Technical Data Output power RMS (≤ 1% THD+N) - @ 4 Ohms ..............1 x 350 Watts - @ 2 Ohms ..............1 x 600 Watts - @ 1 Ohms ..............1 x 900 Watts* Max. output power ............Up to 1,000 Watts RMS @ 1 Ohm Amplifier technology .............Class D Inputs ................
  • Page 20 Audiotec Fischer GmbH Hünegräben 26 · 57392 Schmallenberg · Germany Tel.: +49 2972 9788 0 · Fax: +49 2972 9788 88 E-mail: match@audiotec-fischer.com · Internet: www.audiotec-fischer.com Made in China...
