Installation Instructions

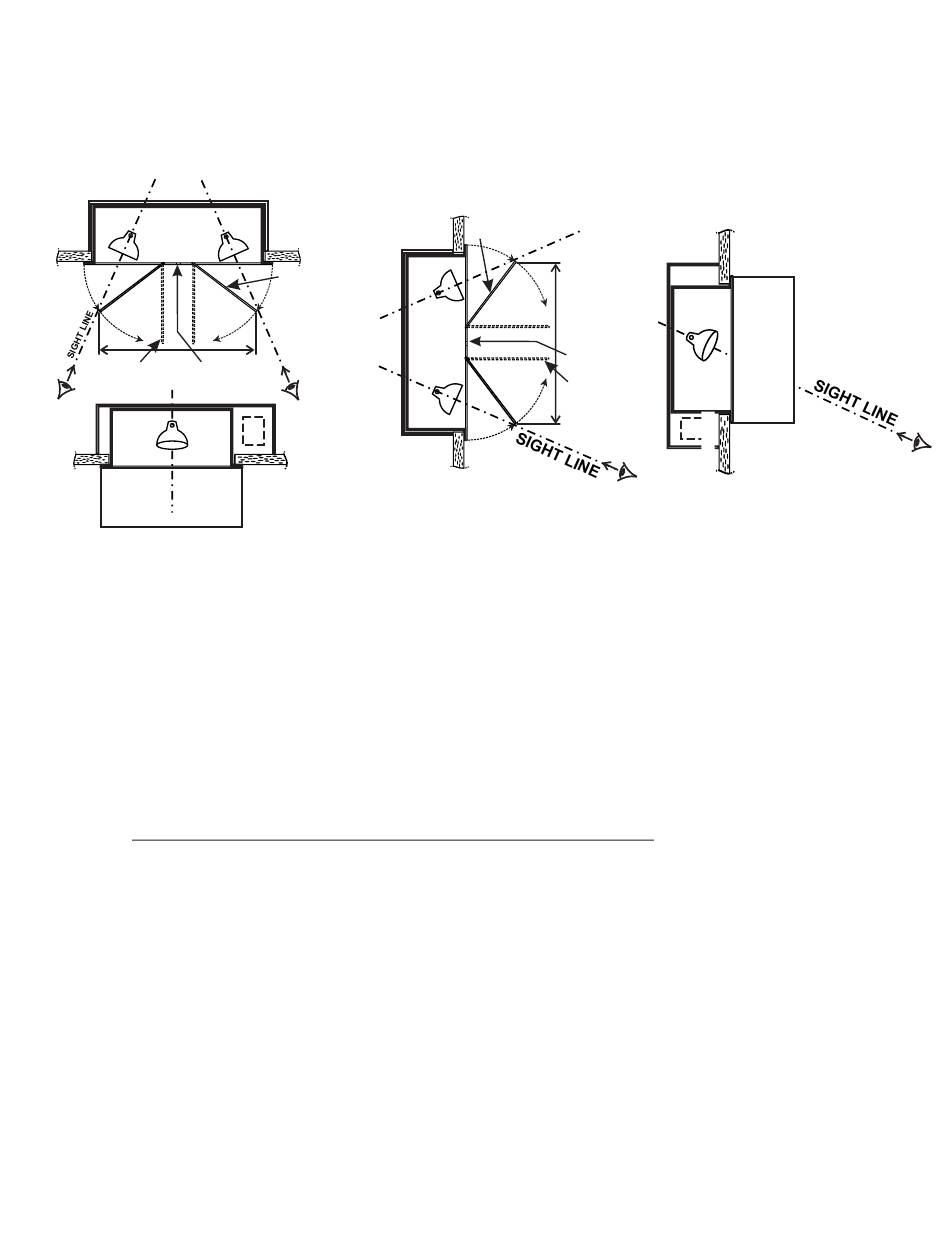

LAMP & DOOR ASSEMBLY
TOP MOUNT
4"
INSTALL
DOOR ANGLE
POSITION
ADJUST SCREW
1. Insert MR16 lamps. If required, to ease lamp insertion pull wires gently away from socket
to relieve spring tension on pin terminals.
2. Snap connector 1 from Door-Lamp assembly into lamp housing connector, place
Door-Lamp assembly in place using pins to locate in position, and tighten two #8-32
screws.
3. Rotate lamp brackets into desired lighting position for Wall or Ceiling installations.
4. Strip off plastic protector film on mirror doors before use.
5. FOR CORRECT LIGHT DISTRIBUTION & DOOR OPERATION, SET DOOR
ANGLE BY ADJUSTING STOP SCREW USING 9 6/4" ALLEN KEY SUPPLIED,
ROTATE COUNTER CLOCKWISE AS FOLLOWS:
DIMENSION BETWEEN DOOR EDGES WHEN FULLY OPEN.
WALL MT
CEILING MT
6. To test fixture, turn off line power to fixture & switch to generator power.
OPERATING
POSITION
6 ½"
3 7/8"
-5-
WALL MOUNT
OPERATING
POSITION
6 1/2"
DOOR ANGLE
ADJUST SCREW
INSTALL
POSITION
Series CVRAC
REV 03.11.1
