Moonlite LED™
High Output Emergency Light
Installation Instructions & Users Manual

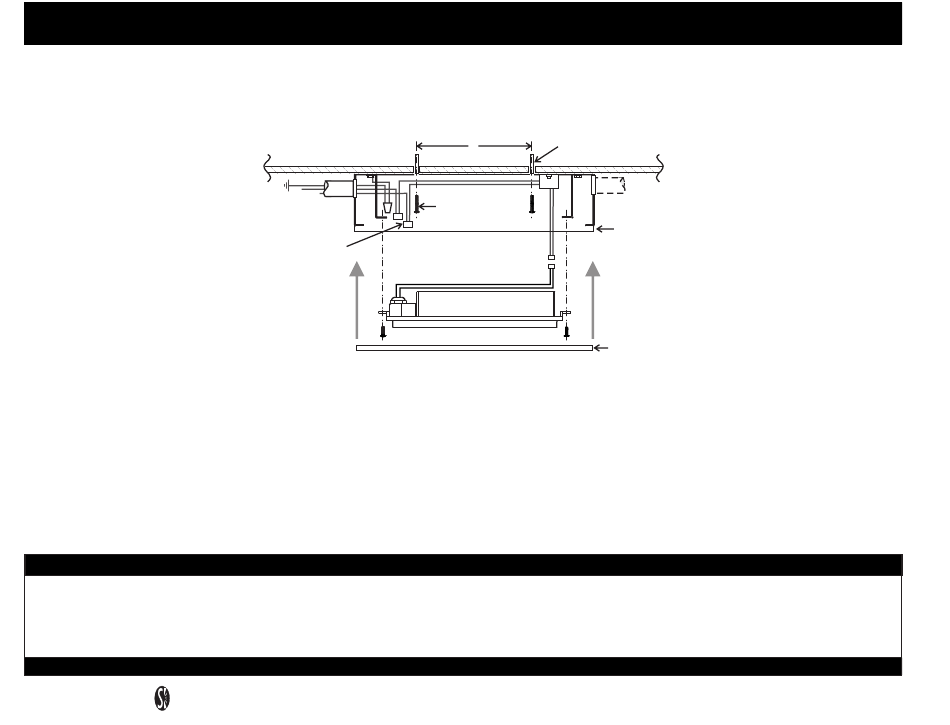

Fig. 1. DIRECT SURFACE MOUNT
1. See Fig 1. Identify mounting position on ceiling in accordance with fixture layout specifications, and install (2) screw anchors, minimum size
#10, at 8" between centers.
2. Insert small flat blade screwdriver or similar tool under notch at either end of cover, twist gently to release snap and lift cover. Unscrew (4) #8
lamp assembly screws, lift lamp assembly from Housing and disconnect lamp plug.
3. Mount housing to ceiling with (2) mount screws. Route 120/ 277 VAC IN/OUT wiring.
4. Connect wiring: BLACK- 120 VAC LINE
WHITE- NEUTRAL
ORANGE- 277 VAC LINE
GREEN- GROUND
5. Reconnect lamp plug and reinstall lamp assembly with (4) #8 screws, and replace cover. Supply power to check lamp operation.
1. Disconnect AC power before servicing.
2. Refer to wiring diagram for proper connections.
3. All servicing should be performed by qualified personnel.
4. Consult your local building code for approved wiring and installation.
5. Do not use outdoors.
Signtex Lighting
CEILING
G
120/ 277
L
N
VAC IN
PUSH- IN
CONNECTORS
(SUPPLIED)
#12-22 AWG
IMPORTANT SAFEGUARDS READ AND FOLLOW ALL SAFETY INSTRUCTIONS
6. Do not use this equipment for other than intended use.
7. Do not let power cords touch hot surfaces.
8. Mount and secure the fixture at a location and height to avoid ready access and tampering by unauthorized persons.
9. The use of accessory equipment is not recommended by the manufacturer and may cause an unsafe condition.
SAVE THESE INSTRUCTIONS
220 VFW Avenue, Grasonville, MD 21638 P (410)827- 8300 F(410)827- 8866
SCREW ANCHOR
8"
(2 PLCS)
MOUNT SCREWS
(BY OTHERS)
LAMP
HOUSING
LAMP
CONNECTOR
LAMP
ASSBY
COVER
Series MHE-AC
04.15.01
