Signtex Lighting Moonlite LED Installation Instructions And Owner's Manual

Moonlite LED
™
Emergency & Security Light
INSTALLATION INSTRUCTIONS AND OWNER'S MANUAL
WIRE ACCESS 5/8" DIA
2 1/2"

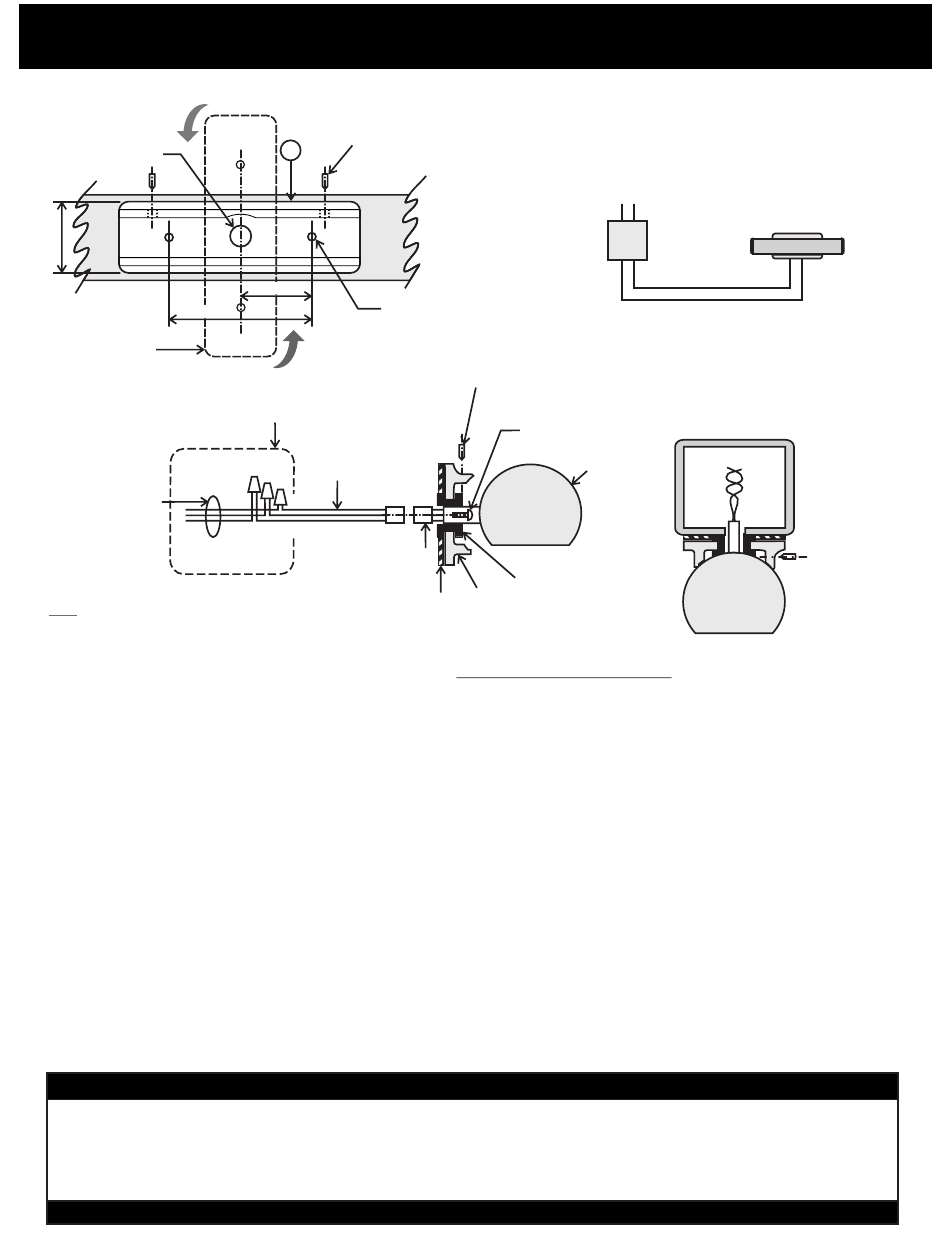

Fig. 1
2 3/4"
BASE MOUNT
POSITION
SIDE MOUNT
LOW VOLTAGE
SUPPLY WIRING
KEY
B- BLACK: COMMON: 12/24 VDC NEG -
R- RED: EMERGENCY: 24VDC POS +
BL- BLUE: SECURITY/ NIGHT LIGHTING: 24 VDC POS +

Fixture Assembly

1. See Fig 1. Drill 5/8" dia wire access hole and (2) 5/32" dia (or suitable tapping size) mount screw holes in the mullion beam
at center of selected fixture location.
2. Route low voltage supply wiring through mullion and attach lamp plug pigtail (supplied) to supply wiring with wire nuts.
MAINTAIN COLOR CODES AT CONNECTOR: RED Positive, BLACK Negative.
3. Loosen (2) #6-32 set screws, release lamp housing from base and rotate lamp housing about 90° to expose mount screw
holes. Attach polarized lamp plug on pigtail, insert wiring and lamp plug into mullion, and attach base to mullion with (2) #8
screws (not supplied). Tighten evenly on gasket.
4. Rotate lamp housing to fit base and secure with (2) set screws. Turn AC power ON with battery connected at the RPS or
central battery system, press the PUSH TO TEST button to check operation. Full battery charge requires 24 hrs.
IMPORTANT SAFEGUARDS READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. Disconnect AC power before servicing.
2. Refer to wiring diagram for proper connections.
3. All servicing should be performed by qualified personnel.
4. Consult your local building code for approved wiring and installation.
5. Do not use this equipment for other than intended use.
6. Do not let power cords touch hot surfaces.
(2) #6-32 X 3/8
SET SCREW
1
1 3/8"
(2) DIA 5/32" MOUNT
SCREW LOCATIONS
ROTATE TO
FINAL POSITION
MULLION
BL R
PIGTAIL
B
POLARIZED
CONNECTOR
GASKET
SAVE THESE INSTRUCTIONS
LED Mullion Mount Emergency Light
BRANCH CIRCUIT
INPUT/ OUTPUT 24 VDC
(2) # 6-32 x 3/8
SET SCREW
(2) # 8-32 x 1/2
CANOPY MOUNT
SCREW
LAMP
HOUSING
BUSH
BASE
SUITABLE FOR WET LOCATIONS

AMBIENT TEMPERATURE LIMITS:

Standard "BB" models: -20º C to +40º C
Remote models: -40º C to +50º C
7. Mount and secure the fixture at a location and height to avoid ready access
and tampering by unauthorized persons.
8. The use of accessory equipment is not recommended by the manufacturer
and may cause an unsafe condition.
9. Suitable for wet locations. See product label for temperature limitations.
Remote Series MUE-RE
MUE
J-
BOX
WIRING THROUGH
MULLION AWG #16 - 20
TOP MOUNT
(OPTION)
REV 04.17.04
