Signtex Lighting Moonlite LED MAE-AC-20 Series Installation Instructions And Owner's Manual

Moonlite LED
™
Universal 120/ 277 VAC Supply
INSTALLATION INSTRUCTIONS AND OWNER'S MANUAL
EXTENSION
RING 1 1/2"
L B
N W
J-BOX
4 x 4 x 2 1/8"
L N G
120/277 VAC

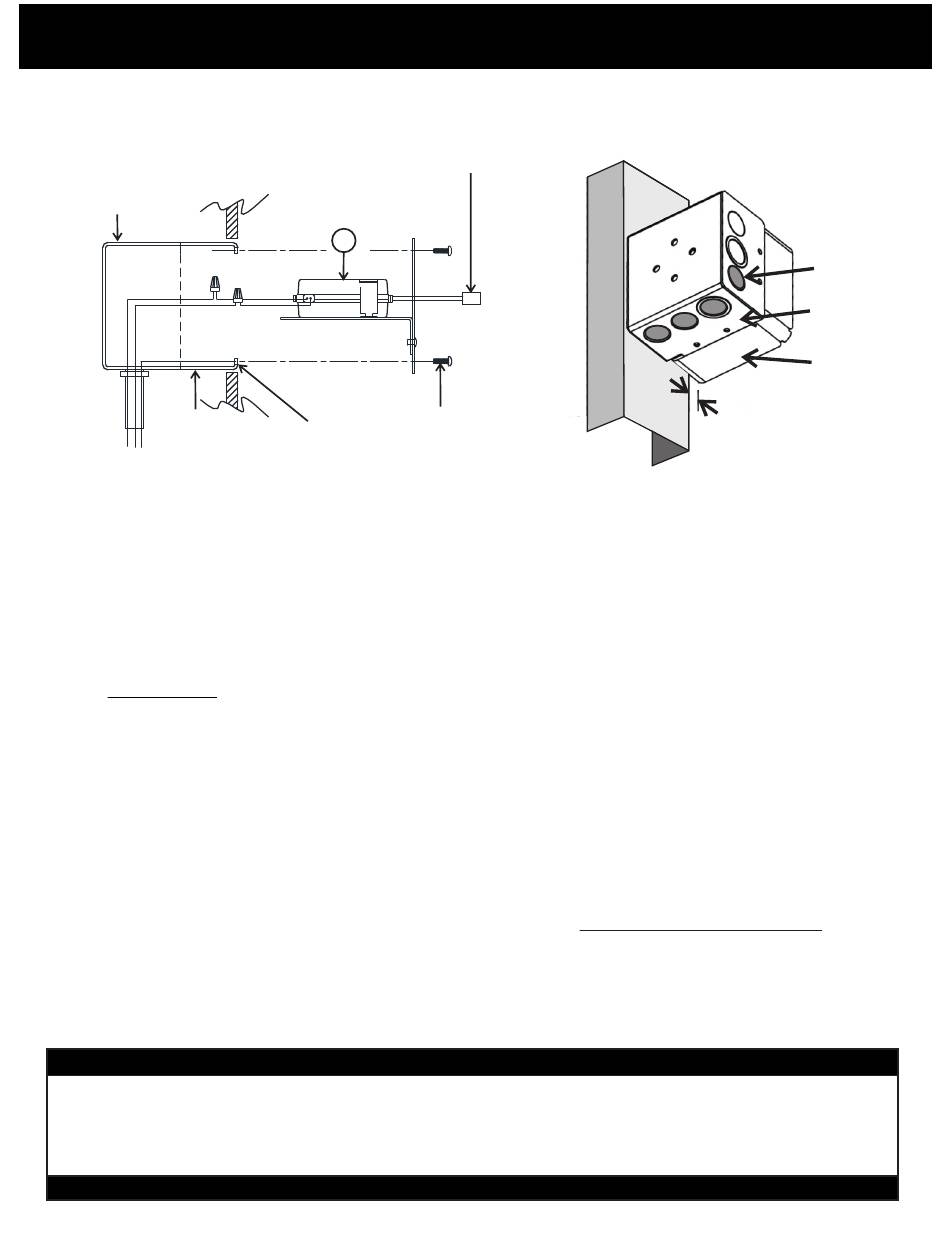

J- Box and Supply Wiring
1. See above for available K.O.'s for wiring connectors. Select K.O.'s for AC input wiring. Install standard
4" x 4" deep j-box with 1 ½" extension.
IMPORTANT: SET J-BOX ASSEMBLY TO ALIGN EDGE OF EXTENSION FLUSH OR JUST
BELOW
2. See above. Insert Power Supply Assembly (1) into j-box and secure with two #8-32 x ½" screws.
3. See above. Connect AC input wiring from power supply assembly to building supply with wire nuts,
with Ground connector to j-box: BROWN: 120-277 VAC: BLUE: Neutral.
IMPORTANT SAFEGUARDS READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. Disconnect AC power before servicing.
2. Refer to wiring diagram for proper connections.
3. All servicing should be performed by qualified personnel.
4. Consult your local building code for approved wiring and installation.
5. Do not use this equipment for other than intended use.
6. Do not let power cords touch hot surfaces.
LAMP PLUG
1
(2) # 8-32 x 1/2
GROUND
J-BOX MOUNT
TO J-BOX
SCREWS
FINISH PANEL SURFACE.
7. Mount and secure the fixture at a location and height to avoid ready access
and tampering by unauthorized persons.
8. The use of accessory equipment is not recommended by the manufacturer
and may cause an unsafe condition.
9. Suitable for wet locations. See product label for temperature limitations.
SAVE THESE INSTRUCTIONS
LED Architectural Emergency Light
SUITABLE FOR WET LOCATIONS
AMBIENT TEMPERATURE LIMITS:
Standard models: -20º C to +40º C
Remote models: -40º C to +50º C
Series MAE-AC-20
04.16.02
AVAILABLE K.O.'S
4 PLACES
STANDARD J-BOX
4 x 4 x 21/8"
EXTENSION RING
4 x 4 x 11/2"
SET EDGE OF BOX
FLUSH TO WALL
FINISH OR
PANEL THICKNESS
