Signtex Lighting Moonlite LED MOE-RE Series Installation Instructions And Owner's Manual

Moonlite LED
™
Remote Series Operating from Central Battery System Series CBS
INSTALLATION INSTRUCTIONS AND OWNER'S MANUAL
1. See Fig 1 and Fig 2. Connect color coded pigtail supplied to 24VDC input/output wiring in J-Box as
shown with standard wire nuts. Cap off BLUE wire from power supply if security lighting not
required.
2. Remove KO screw holes in Base as required for J-Box. Route input wiring through center hole and
tighten down flush to the wall surface.
3. Place Housing Assembly over Base and connect 4-pin polarized supply plug.
4. Insert two #6-32 set screws part-way into locations on Housing. Place Housing over Base and insert two
#6-32 screws at top. DO NOT TIGHTEN FULLY. Push down on Housing to compress gasket, and tighten
set screws fully. Then, fully tighten top screws.
5. Apply power and check lamp operation.
IMPORTANT SAFEGUARDS READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. Disconnect AC power before servicing.
2. Refer to wiring diagram for proper connections.
3. All servicing should be performed by qualified personnel.
4. Consult your local building code for approved wiring and
installation.
5. Do not use this equipment for other than intended use.
6. Do not let power cords touch hot surfaces.
6

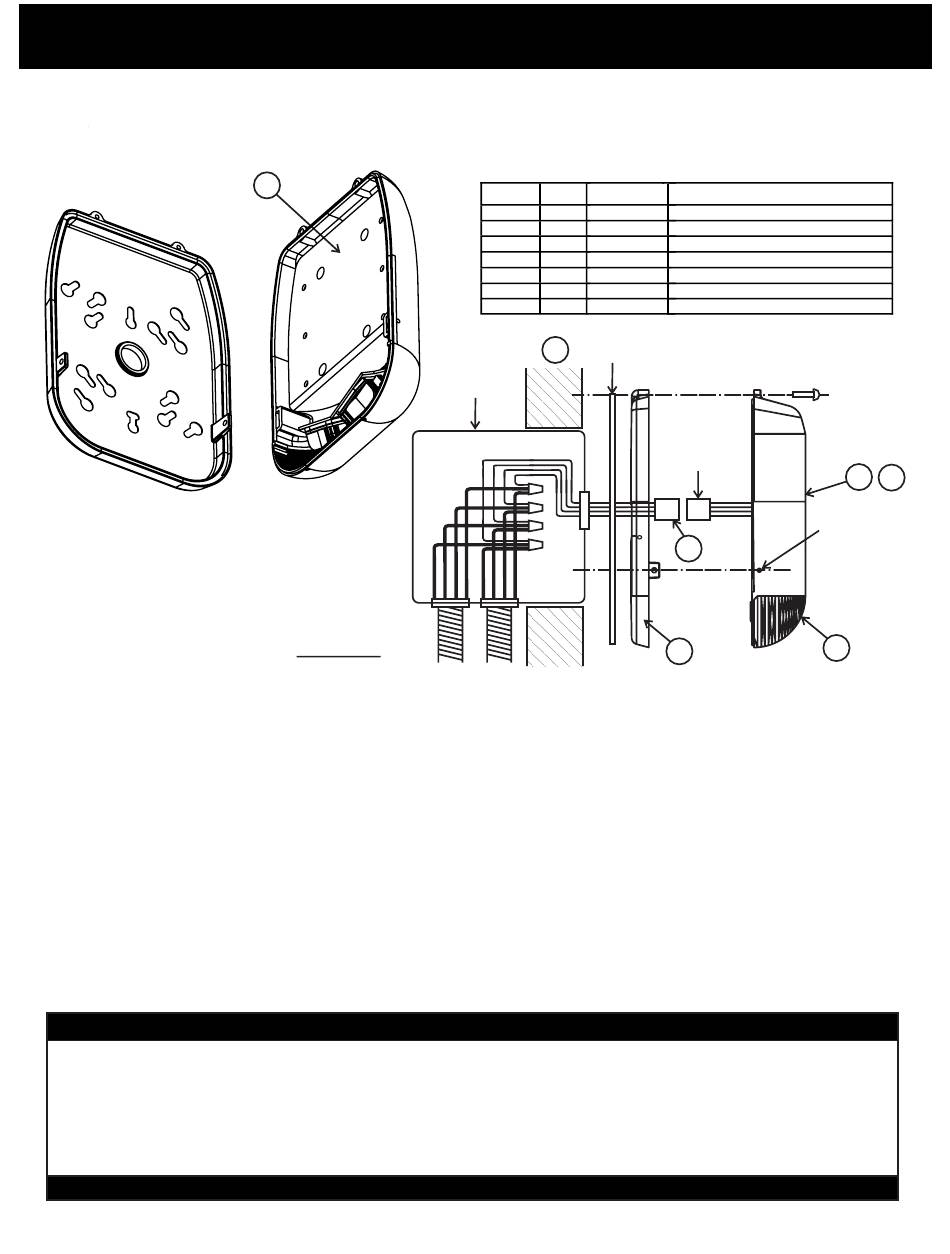

FIG. 1
SAVE THESE INSTRUCTIONS
ITEM QTY P/N
1 1 343100-X
2 1 343002-X
3 1 586104
4 1 343003
5 1 586103-X
6 1 SEE SPEC POWER SUPPLY ASSBY
7 1 343035
7
GASKET
J-BOX
7. Mount and secure the fixture at a location and height
to avoid ready access and tampering by unauthorized
persons.
8. The use of accessory equipment is not recommended by
the manufacturer and may cause an unsafe condition.
9. Suitable for wet locations. See product label for temperature
limitations.
Exterior LED Wall Pack
Series MOE-RE
DESCRIPTION
HSG ASSBY 2 LAMP-'X' COLOR
HSG ASSBY 3 LAMP-'X' COLOR
LENS
PIGTAIL ASSBY
BASE- REMOTE-'X' COLOR
GASKET
(2) #6-32 x 3/8"
POLARIZED
PLUG
(2) #6-32 x 1/4"
SET SCREWS
4
3
5
02.17.04
TOP SCREWS
1 2
