Operating instructions
Contents:
1. Introduction........................ 1
2. Technical data...................... 1
3. Function............................. 2
4. Charging............................. 7
5. Driver Installation................ 7
6. SwemaTerminal 3................ 8
vers
vers 1.02 CW20160621

Advertisement

loading
Need help?

Need help?

Do you have a question about the SwemaFlow 126 and is the answer not in the manual?

Questions and answers

Related Manuals for Swema SwemaFlow 126

Summary of Contents for Swema SwemaFlow 126

  • Page 1: Table Of Contents

    123 56 FARSTA, SWEDEN 4. Charging......7 Tel: +46 8 94 00 90 5. Driver Installation....7 Fax: +46 8 93 44 93 6. SwemaTerminal 3....8 E-mail: swema@swema.com 7. PC-menu in instrument..9 Web site: www.swema.com Direct line +39(0)445 492313 | info@arwmisure.it...

  • Page 2: Introduction

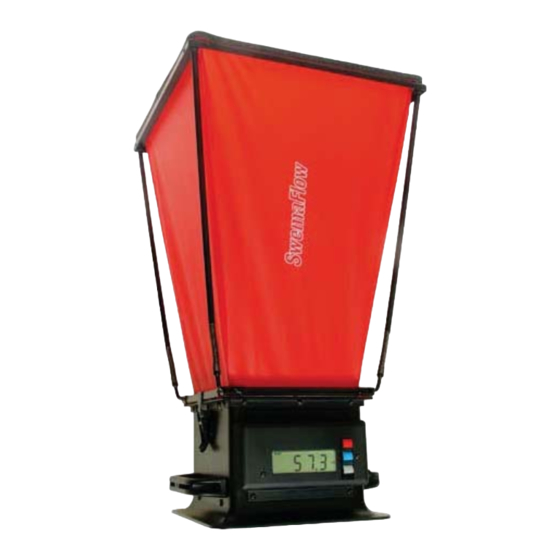

    1. Introduction Thank you for choosing a quality instrument from Swema. SwemaFlow 125D measures air flow directly in l/s, m3/h or cfm (when set to US units). SwemaFlow 126 includes: • Flow capture instrument • Flow hood 300x300mm for exhaust flow (Some valves also supply) •...

  • Page 3: Function

    3. Function The current flow is presented on the display two times seconds. Swema Flow 126 can display real or standard flow by measuring air temperature and barometric pressure. On/Off (RED button) Turn on and off the instrument by pressing the RED button. When turning on the instrument, the display will first show firmware ver-...
  • Page 4 The included 300x300 hood can be used for supply if it gives the same result on the valve type as one of the longer hoods. All hoods to SwemaFlow 126 can be used for exhaust flow measure- ments. BP Mode (Back Pressure) When measuring with any Flow capture the flow may be influenced...
  • Page 5 Place the hood with the sealing list making a proper seal around the valve. Start with or without the throttle ring and press the BLACK button (button on the side). SwemaFlow 126 will wait 2 seconds to let the flow stabalize in the flow capture, the display will show ”P1” (Point 1) and start to count up from 0 to 2 (the stabilization time).
  • Page 6 Flow Factor Measurement (F-mode) In Flow Factor mode the flow is multiplied with a flow factor (flow factor 1.00 will not alter the flow). A flow factor can be used to com- pensate for example a leakage. Warning: Changing to anything else than 1.00 will alter the reading from calibration certificate.
  • Page 7 Note book (notE) If GREY button is pressed two times when in BP Mode notE will be displayed. To enter the note book press the BLACK button. ”Note” and the number of the last saved note will be shown on the display. With GREY and BLUE button it’s possible to scroll through the saved notes.

  • Page 8: Charging

    är lägre än 2,8 V kommer instrumentet att automatiskt 5. Driver installation To use SwemaFlow 126 with a Windows 10 PC, just connect the USB cable and wait for the driver installation to complete. To use Swema- Flow 125D with an earlier OS driver matching .inf-files must be used by the OS.

  • Page 9: Swematerminal 3

    firmware, print calibration protocol. Informa- tion of what kind of instrument and at which COM-port it’s connec- ted can be found on the top left side. For SwemaFlow 126 it is only possible to change settings in ”Terminal Window”.

  • Page 10: Pc-Menu In Instrument

    7. PC-menu in instrument After ”Terminal Window” is clicked a new window is opened. Press ”Enter” on the keyboard and the main terminal menu for Swema- Flow 126 will be opened. To change a setting use the PC keyboard and press on the corresponding letter.
  • Page 11 ”Point” or ”Comma”: Set point or comma as decimal separator for the the prinout of sto- red values and for logged measurement to PC. ”US” or ”EU/ASIA”: Set unit system to US (ft3/min, °F, inHg) or EU/ASIA (l/s, °C, hPa). Charging On /Off OBS: When transfering measurements values (with space), charging should be set to Off because the measurement values can be influ-...
