Summary of Contents for Swema 3000

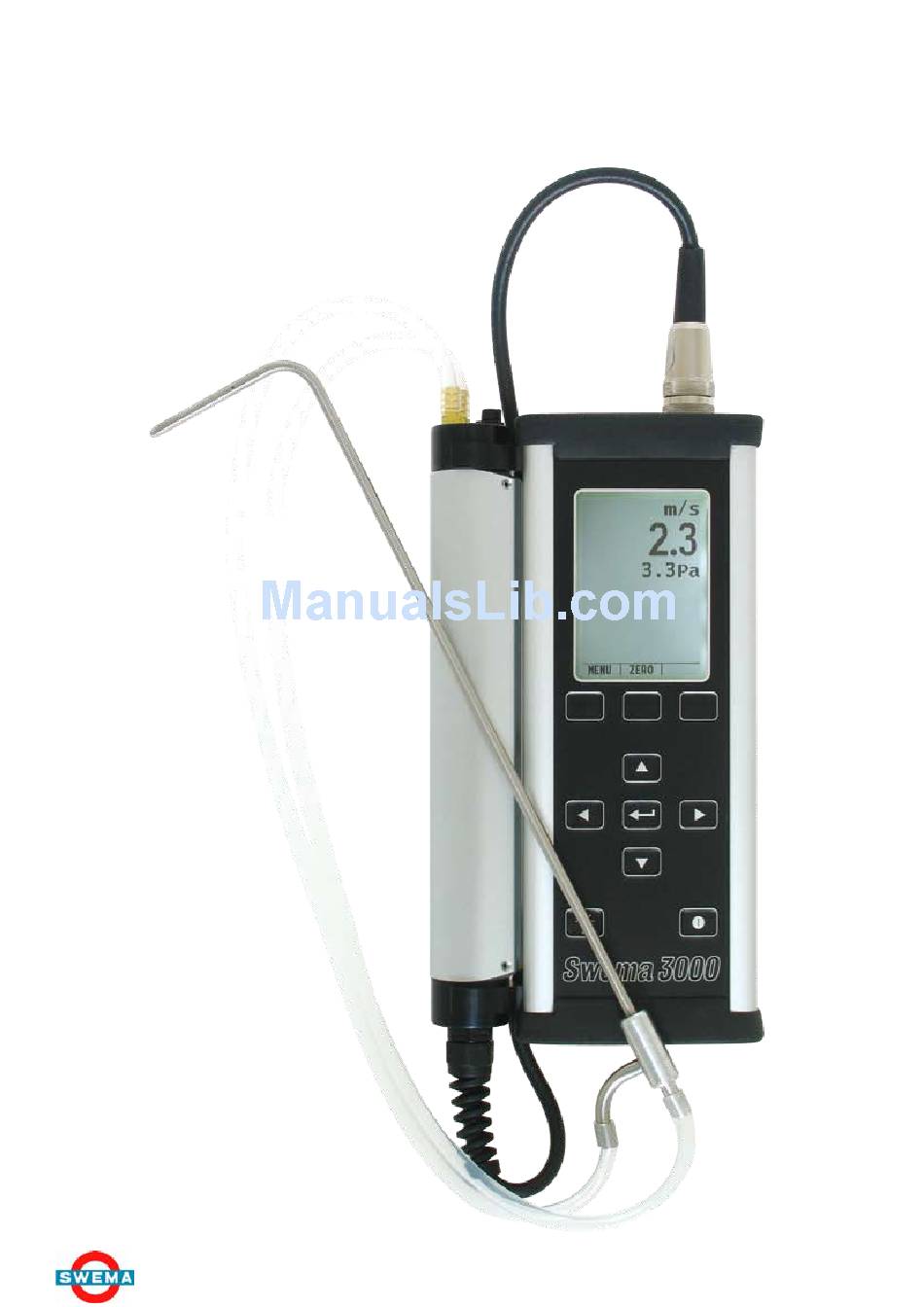

- Page 1 Manual for Swema 3000 Version 16.09 5.31 Swema AB Pepparvägen 27 SE-123 56 FARSTA 1 Tel: 08 94 00 90 Fax: 08 93 44 93 swema@swema.se www.swema.se...
-
Page 2: Table Of Contents
2. Mounting of holder................4 3. Read this before you begin.............. 5 4. MENU 1....................7 5. MENU 2....................8 6. MENU 3....................9 7. Diferent probes for Swema 3000............ 10 8. Swema 3000’s different programs...........12 AP (Average Point) ..................13 8.2 APF (Average Point Flow) - Air flow in chanel and with area....14 8.3... -
Page 3: Overview
Battery hatch 2 x AA Batteries Display Description of Func- tion keys Function keys Arrow Key Enter Key Display On / Off Swema AB Pepparvägen 27 SE-123 56 FARSTA 3 Tel: 08 94 00 90 Fax: 08 93 44 93 swema@swema.se www.swema.se... -
Page 4: Mounting Of Holder
Remove the the list by pull it out. When the list has been removed you can place the holders by placing it in the opening and pull them to a suitable place. Now, you can place the sensor. (The image shows a SWA 10 wth a holder) Swema AB Pepparvägen 27 SE-123 56 FARSTA... -
Page 5: Read This Before You Begin
At switch-on of the instrument, it shows an information box within some seconds. Where it shows which model of Swema 3000 it is, which software version (Firmware) the instrument has as well as the battery voltage (less than 2.0V the instrument wil shut down itself). If you have a sensor con- nected, you will also see which type of sensor it is when the calibration comes out as well as the serie number on the probe (does not apply relative humidity/temp sensor). - Page 6 Modes: Swema 3000 helps you to calculate and work in the correct way when you use the different mo- des. The differemt sensors that exists to Swema 3000 have sometimes their own modes, e.g. for the differencial pressure sensor the measurement mode DPF (Differencial Pressure air Flow).
-
Page 7: Menu 1
Swema 3000 without barometer and differential pressure sensor. In Swema 3000, the atmospheric pressure can be set manually by moving the marker to ”Atmos.P” with the UP/DOWN-arrow key. Press ENTER or SET and set the atmospheric pressure with the UP/DOWN-arrow and with the LEFT/RIGHT-arrow key. -
Page 8: Menu 2
2400, 4800, 9600, 19200 or 57600 Normally 4800 for SwemaTwin, 9600 for PC-transfer (RS232 cable). Add Flow ON or OFF If set to ON. Swema 3000 will add the flow from each measurement in one file and present a total flow. Protocol SHORT or LONG Here you specify if you want a long or short protocol (note) at PC-printout. -
Page 9: Menu 3
English, German, Swedish, Finnish, French, Danish, Norwegian, Dutch or Polish. Change with the up/down arrow keys. Set the language you wuold like to use. Swema AB Pepparvägen 27 SE-123 56 FARSTA 9 Tel: 08 94 00 90 Fax: 08 93 44 93 swema@swema.se... -
Page 10: Diferent Probes For Swema 3000
Auto Zero ON with SWA 10 or Swema 3000md/mdH+ SWA 10 and Swema 3000md has an inbuilt zero valve. Auto Zero is set to ON by default. By the built in valve the zero pressure point is automatically checked every time you take a measurement by pressing ”ENTER”. - Page 11 Possible measuring modes: AP, AS and LOG. Radio/BlueTooth modem for balancing of ventilation SwemaTwin transfers measured values on the reference valve from one Swema 3000 to another through radio/BlueTooth modem or 40 meter cable. The flow relation between them is displayed, which makes adjustment according to the proportional method an easy task for just one person.
-
Page 12: Swema 3000'S Different Programs
Insert k- factor, and the Swema 3000 calculates the air flow according to the formula: q = k sqrt(∆P). The specific k-factor is supplied by the manufacturer of (exhaust and supply) ventilation valves. -
Page 13: Ap (Average Point)
When measuring, collect values with the enter button. When values are collected the display will show average-, maximum-, minimum-values and number of measure- ments. Swema AB Pepparvägen 27 SE-123 56 FARSTA 13 Tel: 08 94 00 90 Fax: 08 93 44 93 swema@swema.se... -
Page 14: Apf (Average Point Flow) - Air Flow In Chanel And With Area
Measuring with APF (Average Point air Flow) Possible probes are: SWA 31, SWA 31E or SWA 07 or SWA 10 with pito static pipe or Swema 3000md. Use the APF mode for measuring the flow in ducts. Swema 3000 calculates the flow in l/s or m /h by multiplying the air velocity with the duct area. - Page 15 Measuring When all parameters are installed, press EXIT to come back to mode. Swema 3000 shows choosen Ø, HxW or Area on the bottom of the display. At calculation with pressure sensor (PST) pressure and flow are shown.
-
Page 16: Dpf (Differential Pressure Air Flow) - Air Flow With K-Factor
DPF is used to measure flows over diffusers and orifice plates with the decompression method. Then the diffuser’s K-factor is being used and you put it in the Swema 3000 to give a flow directly to the display. Swema 3000 calculates the flow accor- ding to the formula: q = k • √∆P... -
Page 17: Dpk (Differential Pressure K-Faktor) - K-Factor With Air Flow
DPK is used to measure flows over diffusers and orifice plates with the decompression method. Then the diffusers K-factor is being used and you put it in the Swema 3000 to give a flow directly to the display. Swema 3000 calculates the flow accor- ding to the formula: k = q / √∆P... -
Page 18: Af (Average Flow) - Air Flow With Spigot
Measuring When all parameters are installed press EXIT to come to mode. Collect measure values with ENTER or the button on Swema- Flow 125/2000. When the measure values are collected does Swema 3000 show mean-, max-, min-value and standard deviation. When all measure values are collected, you can choose if you would like to save or delete the measure. -
Page 19: Bp (Back Pressure) -Air Flow With Compensated Spigot
SwemaFlow 125/D can do this correction for you. By mea- suring 2 times with and without throttle ring, Swema 3000 calculates the flow witout restricor i.e. the flow from the diffu- ser without probe. - Page 20 After PO 2 is measured will Swema 3000 calculate the actual value. On the display it says True, Max and Min. Max without throttle ring and Min is with throttle ring and True is the actual value.. Choose if you would like to save your measurement. To delete, press CLEAR.
-
Page 21: As (Auto Sampling) - Sampling Of Readings
Settings for measuring with AS Sampling Rate: The time Swema 3000 uses to collect measure values, avera- ging and showing the value on the display. It is a floating mean which is used i.e. if you have e.g. have a measure frequency... -
Page 22: Asf (Auto Sampling Air Flow) - Sampling With Calculating Air Flow
Sampling with air flow calculation ASF is available with hot wire anemometers. Like AS, but Swema 3000 calculates the flow in l/s or m Enter the area as height x width or as area directly. In mode ASF does Swema 3000 calculate the area without channel reduction (K2-reduction) because it is not made for cannel measurement. - Page 23 By slowly sweeping (traversing) the sensor above the surface. e.g. an intake grille or the opening to a fume, you measure the total flow. Repeat the measurement until you get the same measure values so that you learn the technique. Swema AB Pepparvägen 27 SE-123 56 FARSTA...
-
Page 24: Co (Comfort) - Tensile Index Calculation
”Note Book”. Swema 3000 gives also a short sound and shows the memory place on the display in some seconds. To see tensile index, press MENU1 and mark ”Note Book”... -
Page 25: Log - Logging Of Readings
(see Time Constant and Filter for more information). Interval: Set how often Swema 3000 should save a new measure va- lue. The measure mode who has been saved is the value that is going to be shown at the display at the middle point. -
Page 26: Logp - Logging Of Protocol
LOGP be shown during that paus. When the logging is done, press ENTER or SAVE, Swema 3000 gives a short signal and shows in some second the file number on the display. If you save the logging before the first Start and stop the log with the ENTER-but- serie is done, no data will be saved. -
Page 27: Measurement Units Showed For Different Measurement
Note 2: If a k-factor is set to ”0.00” then only Pa will be shown on the display and then on Unit 1’s place Note 3: If there is a Swema 3000md/mdH+ which has a barometer and a thermo coupple, the measure values will be shown on the display requires that ”Atmos. -
Page 28: Note Book, Loggings And Files
To transfer a note or log file to a PC just press Print. A long press on print will transfer the complete log book or note book. For software’s see SwemaTerminal and Swema Multipoint. Erase with the ERASE-button. If you erase in ”Note Book” you can choose to either erase the Note or the whole File, in ”Log... -
Page 29: Swematerminal 2 (Pc-Program)
SwemaTerminal 2. Firstly, the contact has to be complete with Swema 3000 by clicking ”Search” in SwemaTerminal 2, and ”Swema 3000” is shown in the box beneath. Press ”Open”, to the right of the ”Search” button, and the text ”Device is ready” will now show that Swema 3000 is connected to SwemaTerminal 2. -
Page 30: Time Constant And Filter
Saving of measure values (APF & DPF) If Swema 3000 with built-in barometer and thermo coupple (Swema 3000d & Swema 3000md) is used will the values in mean, max & min be calculated correspondent for what the temperature and the barometer were at every single measure point. -
Page 31: Technical Data
The uncertainty of measurement for each probe is stated below as the uncertainty for the probe to- gether with a calibrated Swema 3000. The uncertainty is stated with coverage probability of 95%. Included in the uncertainty for each probe is the uncertainty for Swema 3000, interchangeablity, calibration, temperature dependence, hysteresis and repeatability. -
Page 32: Pressure Sensor
1DIN 43760 ca ±0.4°C or 1/2DIN 43760 ca ±0.2°C Total uncertainty at 20 °C: 1DIN 43760 ca ±0.6°C or 1/2DIN 43760 ca ±0.4°C Calibration: Recommended every 24th month, with Swema 3000 for the best result. Swema AB Pepparvägen 27 SE-123 56 FARSTA... - Page 33 At charging should the instrument’s temperature be between. 10 - 45 °C. When the battery in Swema 3000 is going out starts the battery sign to light up. When it is totally empty the Swema 3000 will shut down automatically.
- Page 34 Dew point and water content (g water / kg dry air) Analogic cable with output Analogic cable with a volt signal for each Swema 3000 sensor. Also gives an output for the buit-in differencial pressure sensor in Swema 3000md and Swema 3000mdH+. Same cable suits for all sensors.
-
Page 35: Theory
So, for Ø 100 → 100Pa corresponds 50 l/s Use the connection above for k: k= 50/10 → 5,0 In this case the k-factor was 5.0. Set k=5,0 in Swema 3000 then you will get the flow directly in l/s, m /h or CFM. -
Page 36: Recommended Measuring Points Channel Measurement
15.3 Recommended measure points channel measurements From T22 ”Methods for measurement of air flow in ventilation installations”, of the Nordic Ventilation Group and Build- ning Research Council, 1998, ISBN 91-540-5827-9. Swema AB Pepparvägen 27 SE-123 56 FARSTA 36 Tel: +46 8 94 00 90 Fax: +46 8 93 44 93 swema@swema.se... -
Page 37: Values Of K2-Factor
15.4 Values of K2-factor Values of K2-factor which is used in Swema 3000: Hot wire anemometer Circular channels: Circular channels: Ø ≤ 160 mm » k2 = 0.89 Ø ≤ 160 mm » k2 = 0.92 160 < Ø ≤ 400 mm » k2 = 0.95 160 < Ø ≤ 400 mm » k2 = 0.96 400 <...
