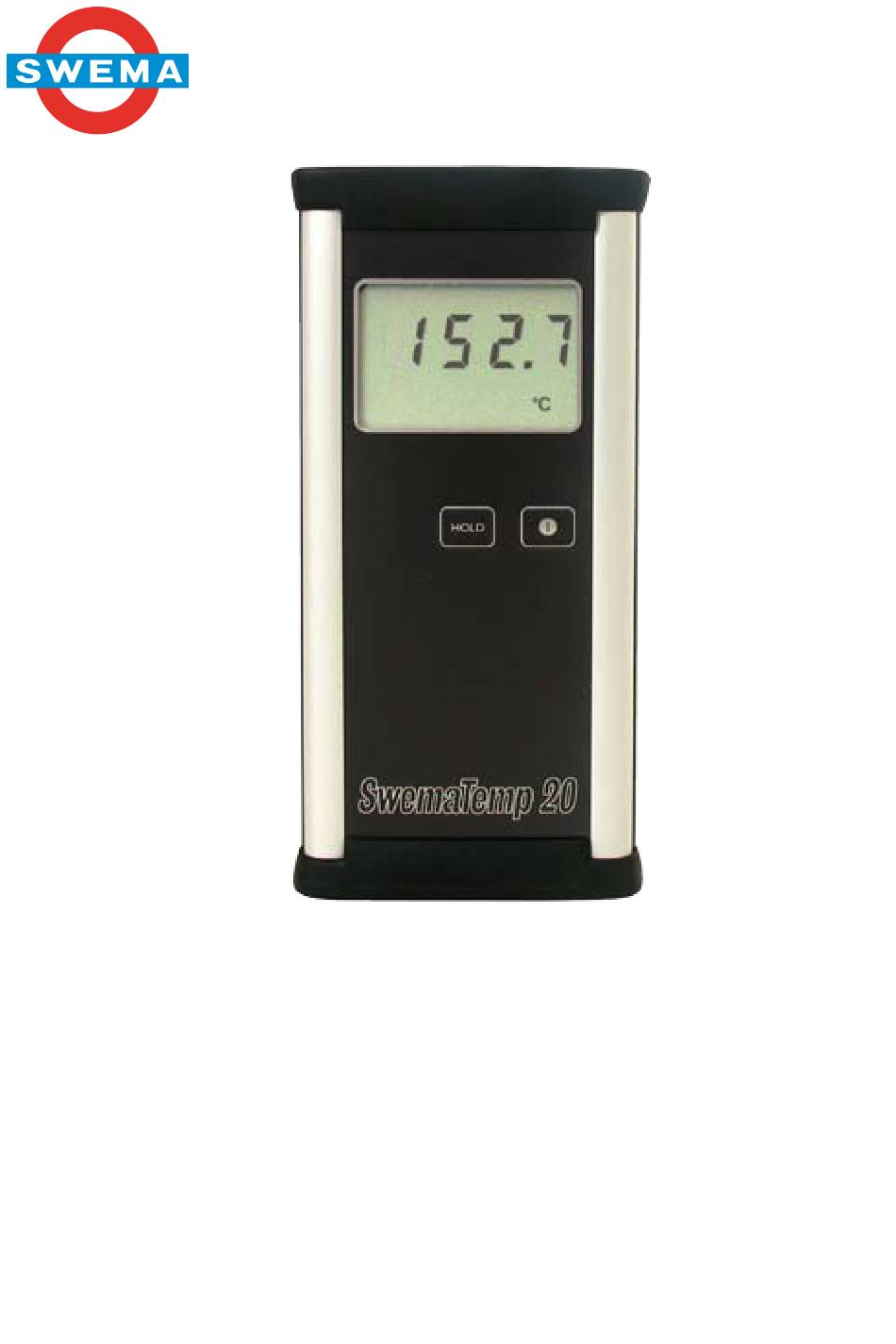

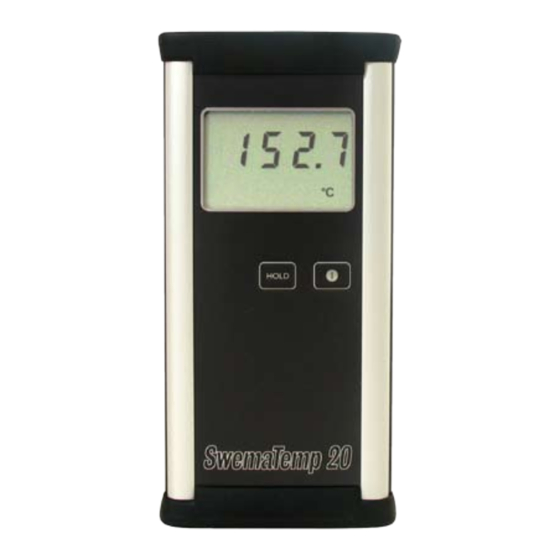

Swema SwemaTemp 20 Instructions

Download this manual

Read this before you start using the instrument!

It's very important that you select Pt-100 mode if you have a Pt-100

sensor and Ni-100 mode if you have Ni-100 sensor, otherwise you will

get inaccurate meter readings. See page 2 how to choose between

Pt-100 and Ni-100.

SWEMA AB

Pepparv. 27

SE-123 56 FARSTA

Tel: +46 8 94 00 90

Fax: +46 8 93 44 93

E-mail: swema@swema.com

Web Site: www.swema.com

SwemaTemp 20

Instructions

vers 1.01-1.03 MB20111013

Contents:

1. Introduction......................... 1

2. Tekniska data........................ 1

3. Start of instrument................ 1

4. Settings............................... 2

5. Temperature sensors............... 3

Need help?

Do you have a question about the SwemaTemp 20 and is the answer not in the manual?

Page 1 SwemaTemp 20 Instructions vers 1.01-1.03 MB20111013 Read this before you start using the instrument! It’s very important that you select Pt-100 mode if you have a Pt-100 sensor and Ni-100 mode if you have Ni-100 sensor, otherwise you will get inaccurate meter readings. See page 2 how to choose between Pt-100 and Ni-100.
Page 2 1. Introduction SwemaTemp 20 measures temperature with both Pt100 eller Ni100 sensors. SwemaTemp 20 is delivered with two easily replaceable AA batteries. Standard, alkaline or regular batteries can be used. 2. Technical data Measuring range: -200…850°C , (IEC 751) for Pt100 and Ni100...
Page 3 °C and °F • Switch between Pt-100 & Ni-100 SwemaTemp 20 must know if a Pt-100 or a Ni-100 sensor is connected. Hold down the HOLD-button when turning on the instrument to switch between Pt-100 and Ni-100.
Page 4 5. Temperature sensors For uncertainty of SwemaTemp 20 + sensors see www.swema.com Part no. 765250 T14 - Air temperature (Pt-100) -50... 60°C 765260 T50 - Liquid Ø 6 mm, 2 m cable (Pt-100) -50... 70°C 765270 T51 - Oven/tap water Ø 4 x 100mm (Pt-100) -50... 250°C 765280 T52 - Black globe, Ø150 mm (Pt-100)
