Operating instructions

Contents:
1. Introduction........................ 1
2. Technical data...................... 1
3. Function............................. 2
4. Charging............................. 7
5. Driver Installation................ 7
6. SwemaTerminal 3................ 8
vers 1.03 KE180618

Advertisement

loading
Need help?

Need help?

Do you have a question about the SwemaFlow 126 and is the answer not in the manual?

Questions and answers

Related Manuals for Swema SwemaFlow 126

Summary of Contents for Swema SwemaFlow 126

  • Page 1: Table Of Contents

    Operating instructions vers 1.03 KE180618 Contents: 1. Introduction......1 SWEMA AB 2. Technical data...... 1 Pepparvägen 27 3. Function......2 SE-123 56 Farsta, Sweden 4. Charging......7 Tel: +46 (0)8 94 00 90 5. Driver Installation....7 swema@swema.com 6. SwemaTerminal 3....8 www.swema.com...

  • Page 2: Introduction

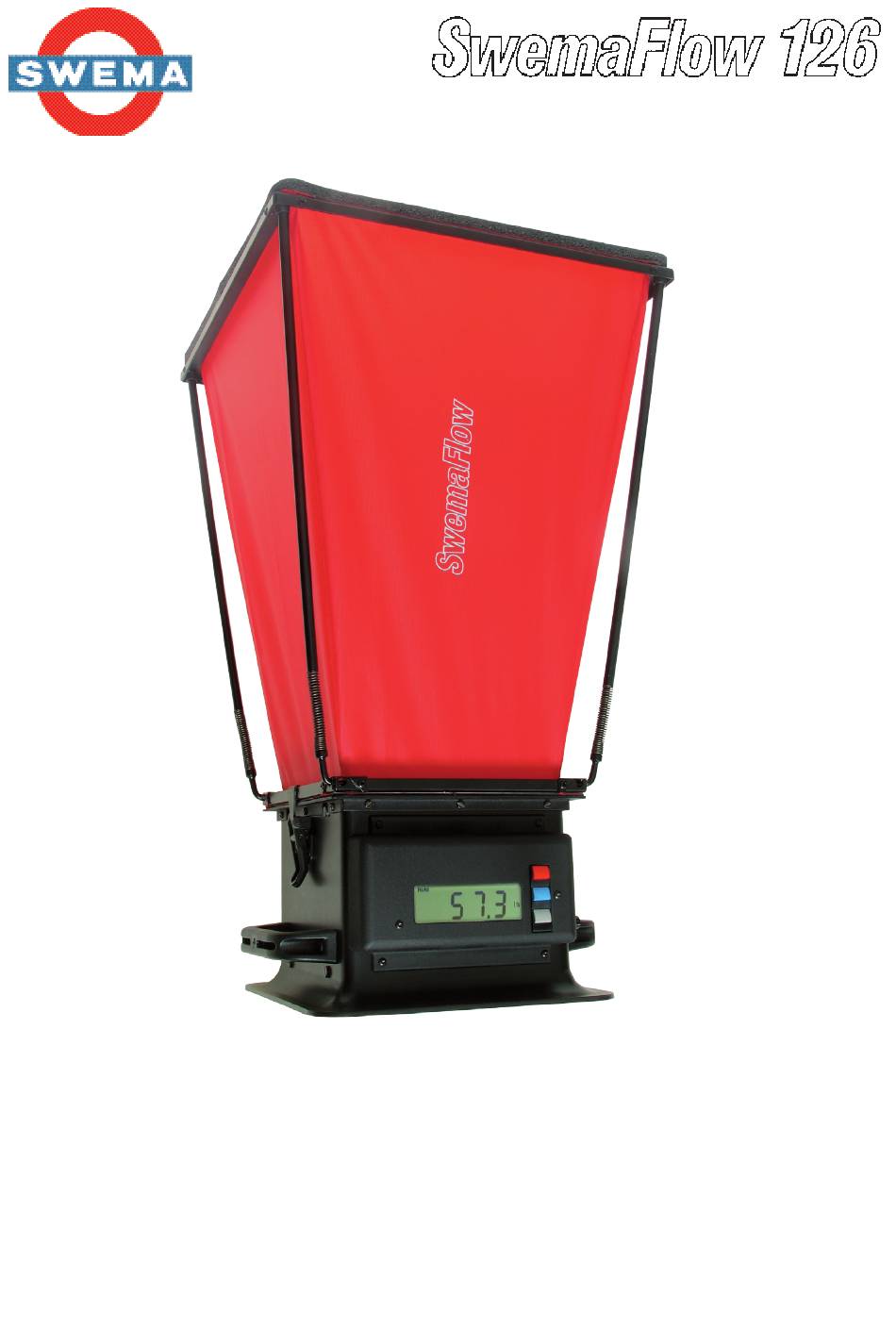

    1. Introduction Thank you for choosing a quality instrument from Swema. SwemaFlow 126 measures air flow directly in l/s, m3/h or cfm (when set to US units). SwemaFlow 126 includes: • Flow capture instrument • Flow hood 300x300mm for exhaust flow (supply after calibration) •...

  • Page 3: Function

    3. Function The current flow is presented on the display two times per second. Swema Flow 126 can display Real flow, by measuring air tempera- ture and barometric pressure, or Standard flow. On/Off (RED button) Turn on and off the instrument by pressing the RED button. When turning on the instrument, the display will first show firmware ver- sion and then battery voltage.
  • Page 4 The included 300x300 hood can be used for supply air if it gives the same result on the valve type as one of the longer hoods. All hoods to SwemaFlow 126 can be used for exhaust flow measure- ments. BP Mode (Back Pressure) When measuring with any Flow capture the flow may be influen- ced by the Flow capture itself.
  • Page 5 Place the hood with the sealing making a proper seal around the valve. Start with or without the throttle ring and press BLACK button (but- ton on the side). SwemaFlow 126 will wait 2 seconds to let the flow stabilize in the flow capture, the display will show ”P1” (Point 1) and start to count up from 0 to 2 (the stabilization time).
  • Page 6 Flow Factor Measurement (F-mode) In Flow Factor mode the flow is multiplied with a flow factor (flow factor 1.00 will not alter the flow). A flow factor can be used to com- pensate for example a leakage. Warning: Changing to anything else than 1.00 will alter the reading from calibration certificate.
  • Page 7 Note book (notE) If, in BP Mode, GREY button is pressed two times ”notE” will be dis- played. To enter the note book, press BLACK button. ”Note” and the number of the last saved note will be shown on the display. With GREY and BLUE button it’s possible to scroll through the saved no- tes.

  • Page 8: Charging

    2.8 V the instrument will automatically shut off. 5. Driver installation To use SwemaFlow 126 with a Windows 10 PC, just connect the USB cable and wait for the driver installation to complete. To use Swema- Flow 126 with an earlier OS driver matching .inf-files must be used by the OS.

  • Page 9: Swematerminal 3

    Informa- tion of what kind of instrument and at which COM-port it’s connec- ted can be found on the top left side. For SwemaFlow 126 it is only possible to change settings in ”Terminal Window”.

  • Page 10: Pc-Menu In Instrument

    7. PC-menu in instrument After ”Terminal Window” is clicked a new window is opened. Press ”Enter” on the keyboard and the main terminal menu for Swema- Flow 126 will be opened. To change a setting use the PC keyboard and press on the corresponding letter.
  • Page 11 ”Point” or ”Comma”: Set point or comma as decimal separator for the print-out of stored values and for logged measurement to PC. ”US” or ”EU/ASIA”: Set unit system to US (ft3/min, °F, inHg) or EU/ASIA (l/s, °C, hPa). ”Charging On /Off” NOTE! When transferring measurements values (with space), char- ging should be set to Off because the measurement values can be influenced by the charging.
  • Page 12 SWEMA AB Pepparvägen 27 SE-123 56 Farsta, Sweden Tel: +46 8 94 00 90 swema@swema.com www.swema.com...
