SWEMA AB
Pepparv. 27
SE-123 56 FARSTA
SWEDEN
Tel: +46 8 94 00 90
Fax: +46 8 93 44 93
E-mail: swema@swema.com
Web page: www.swema.com
Operating instructions
Contents:
1. Introduction........................ 1
2. Technical data...................... 1
3. Function............................. 2
4. Charging............................. 5
5. Driver Installation................ 5
6. SwemaTerminal 3................ 6
with firmare update............ 8
7. Instrument PC menu............. 8
vers 1.23 CHL20160527
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Swema SwemaFlow 4000
Summary of Contents for Swema SwemaFlow 4000
-
Page 1: Table Of Contents
3. Function......2 SWEDEN 4. Charging......5 5. Driver Installation....5 Tel: +46 8 94 00 90 Fax: +46 8 93 44 93 6. SwemaTerminal 3....6 E-mail: swema@swema.com with firmare update.... 8 7. Instrument PC menu..... 8 Web page: www.swema.com... -
Page 2: Introduction

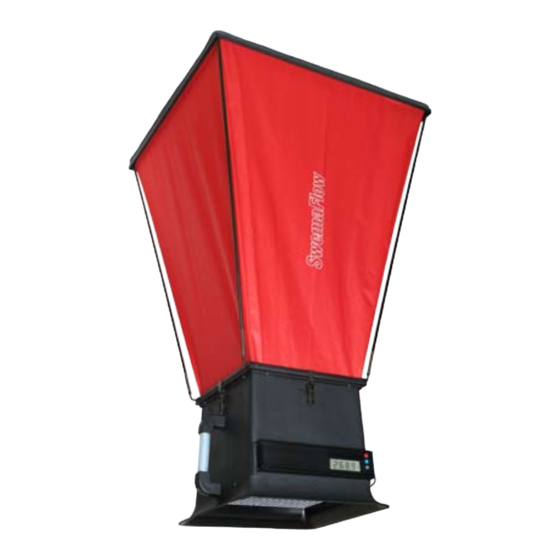

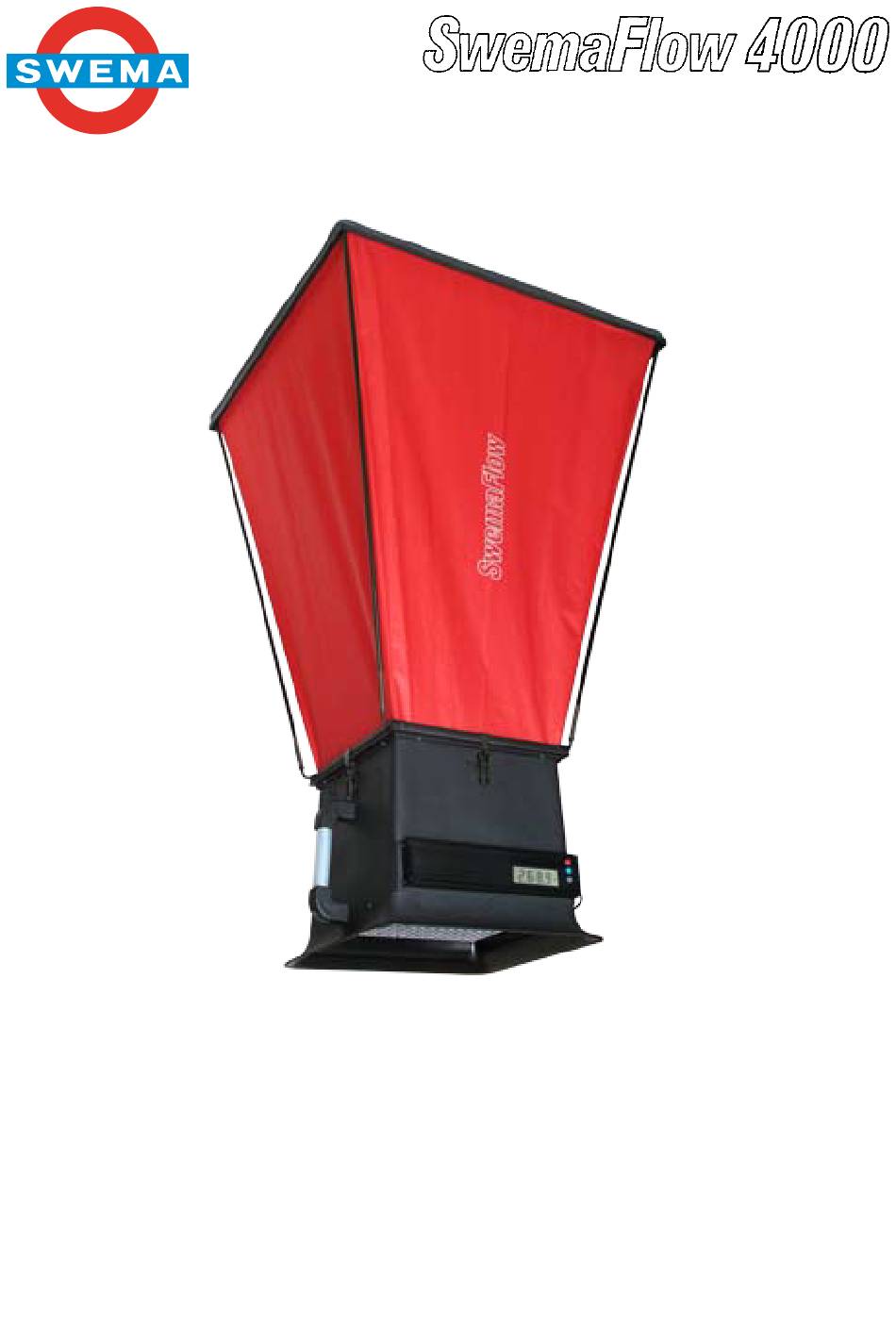

1. Introduction Thank you for choosing a quality instrument from Swema. SwemaFlow 4000 measures airflow directly in l/s, m3/h or cfm (when set to US units). The instrument is turned on and off with the red button next to the display. When the instrument is turned on the display shows first the firmware version then the voltage of the bat- tery. -
Page 3: Function
The display will go trough a sequence showing firmware ver- sion, battery status, ”Stnd” if set to display mass equivalent flow for standard air density and lastly SwemaFlow 4000 enters regular measuring mode and displays current flow. Turn the instrument off by pressing the RED button. - Page 4 HOLD Function (Button on HANDLE) If the button on the HANDLE is pressed down shortly the display will freeze the measured value. ”Hold” is shown in the upper left corner of the display. Press the BLUE button to toggle between the free- zed values (freezed air flow, temperature and barometric pressure).
- Page 5 Note book (notE) If GREY button is pressed two times when in standard measuring mode notE will be displayed. To enter the note book press the but- ton on the HANDLE (small red button). ”Note” and the number of the last saved note will be shown on the display. With GREY and BLUE button it’s possible to scroll through the saved notes.
-
Page 6: Charging
5. Driver installation To use SwemaFlow 4000 with a Windows 10 PC, just connect the USB cable and wait for driver installation to complete. To use SwemaFlow 4000 with an earlier OS driver matching .inf-files must be used by the OS. -
Page 7: Swematerminal 3
”Flow”, ”Temperature” & ”Pressure”: SwemaTerminal 3 shows the air flow, temperature and barometric pressure that SwemaFlow 4000 is currently measuring. ”Averaging time”: A higher ”Averaging time” will use more internal samples for the... -
Page 8: Auto Shutoff
With ”Freq:” it’s possible to set how often a new value should be stored. ”Read calibration certificate” and ”Read Notebook”: By clicking on ”File” a dropdown menu is opened. It’s here possible to show SwemaFlow 4000:s calibration certificate and print the sto- red measurements to the PC. -
Page 9: With Firmare Update
On www.swema.com the newest firmware version will be possible to download. To update the firmware first download the new firmware to your PC. Start SwemaTerminal 3 with the SwemaFlow 4000 con- nected to a USB port with the USB cable.In SwemaTerminal 3 click on ”File”... - Page 12 SWEMA AB Pepparv. 27 SE-123 56 FARSTA Tel: +46 8 94 00 90 Fax: +46 8 93 44 93 swema@swema.com www.swema.com...
