SWEMATWIN FOR BALANCING VENTILATION
Manual ES20150505 Rev. 2
1. Introduction
2. Instrumentation
3. Connecting
4. Settings
5. Measurement
6. Troubleshooting
7. Balancing Ventilation Systems
SWEMA AB
Pepparvägen 27
123 56 Farsta, SWEDEN
2
2
3
4
5
6
6
Tel: +46 (0)8 940090
www.swema.se
www.swema.com
1(7)
Advertisement
Table of Contents
Related Manuals for Swema 3000md
Summary of Contents for Swema 3000md
- Page 1 SWEMATWIN FOR BALANCING VENTILATION Manual ES20150505 Rev. 2 1. Introduction 2. Instrumentation 3. Connecting 4. Settings 5. Measurement 6. Troubleshooting 7. Balancing Ventilation Systems Tel: +46 (0)8 940090 SWEMA AB 1(7) www.swema.se Pepparvägen 27 www.swema.com 123 56 Farsta, SWEDEN...

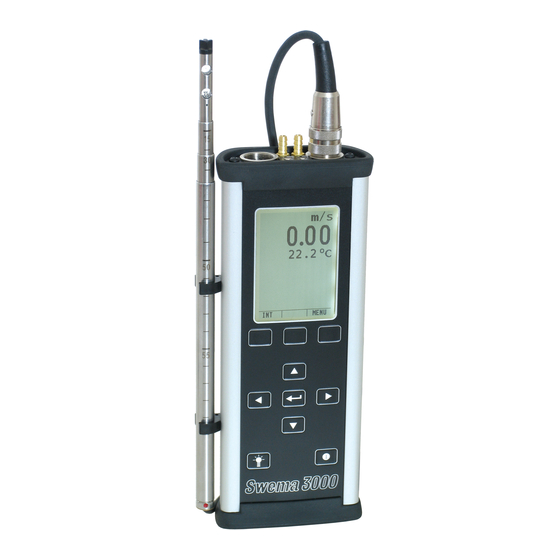

- Page 2 Swema 3000md (Art. No. 764 200) SwemaMan 8 (Art. No. 768 300) Bluetooth Moden Kit for 2 units of Swema 3000md (Art. No. 766 361) Bluetooth Moden Kit for Swema 3000md and SwemaMan 8 (Art. No. 768 730) Bluetooth Repeater (Art. No. 766 681)

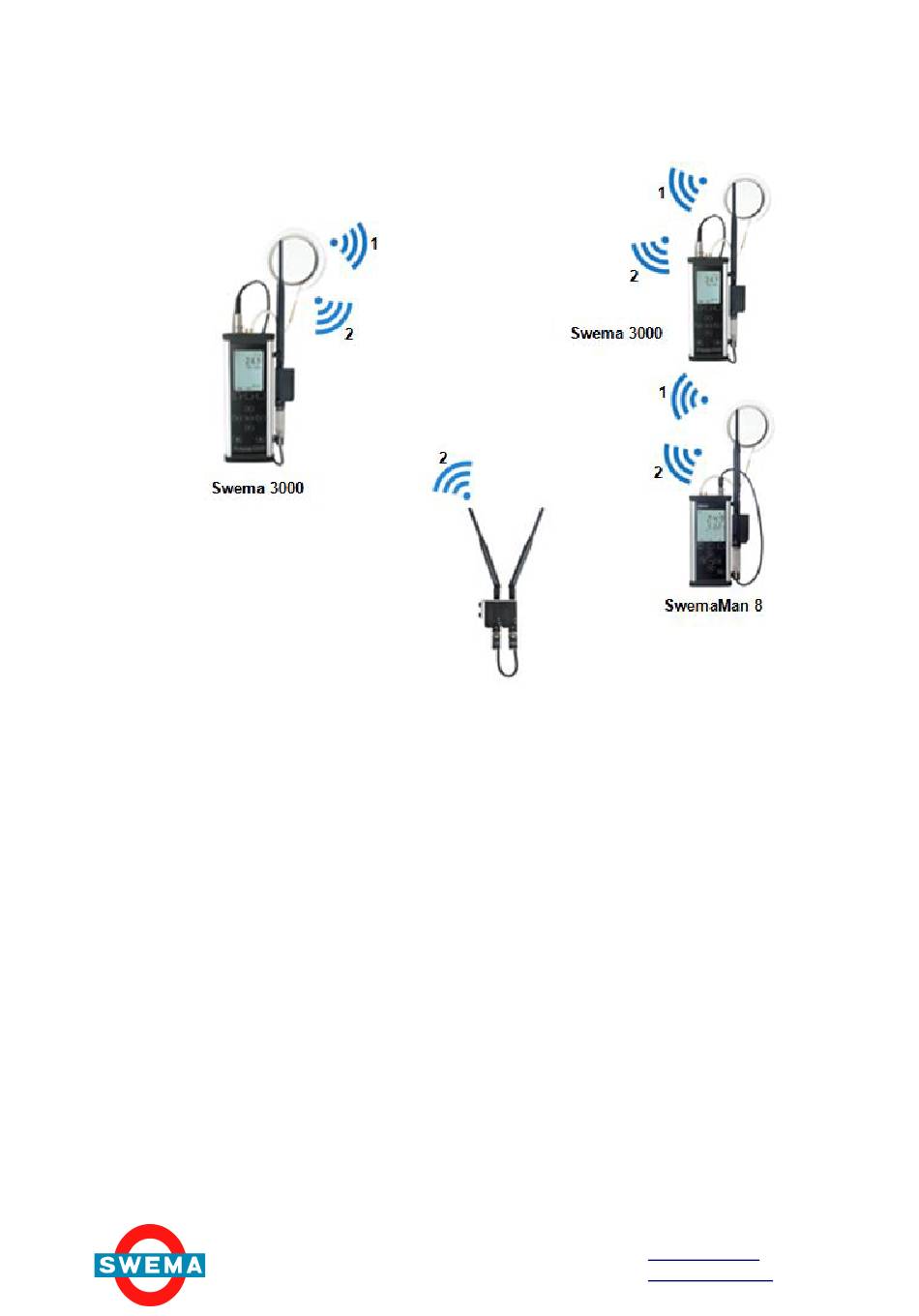

- Page 3 SWEMATWIN FOR BALANCING VENTILATION Manual ES20150505 Rev. 2 3. CONNECTION SwemaTwin with Swema 3000md as a reference SwemaTwin with SwemaMan 8 as a reference Tel: +46 (0)8 940090 SWEMA AB 3(7) www.swema.se Pepparvägen 27 www.swema.com 123 56 Farsta, SWEDEN...
- Page 4 SWEMATWIN FOR BALANCING VENTILATION Manual ES20150505 Rev. 2 4. SETTINGS a. Two units of Swema 3000md. One unit as master instrument and the other unit as a slave (reference) instrument. Balancing of ventilation with 2 universal instruments Swema 3000 and a complete SwemaTwin BlueTooth modem.
- Page 5 SWEMATWIN FOR BALANCING VENTILATION Manual ES20150505 Rev. 2 b. One unit of Swema 3000md as master instrument and one unit of SwemaMan 8 as a slave (reference) instrument. The same procedure as in a is followed, except for the slave (reference) instrument, SwemaMan 8, where a Twin mode cannot be selected, see picture 3.
- Page 6 The flows in the other valves (measurement points) are adjusted with the Master instrument. These nominal flows are called nominal Master flows. Calculate for each Master measurement point: Tel: +46 (0)8 940090 SWEMA AB 6(7) www.swema.se Pepparvägen 27 www.swema.com...
- Page 7 For further reading on Proportionality method, download file Proportionality method with SwemaTwin From: http://www.swema.com/instrument.php?p=SwemaTwin&k=Air%20Flow Tel: +46 (0)8 940090 SWEMA AB 7(7) www.swema.se Pepparvägen 27 www.swema.com 123 56 Farsta, SWEDEN...
