WARNING! Before start measuring please read chapter "6. Set-
tings (Set)". At delivery k2-factor is turned on.
SWEMA AB
Pepparv. 27
123 56 FARSTA
Tel: +46 8 94 00 90
Fax: +46 8 93 44 93
E-mail: swema@swema.com
Web page: www.swema.com

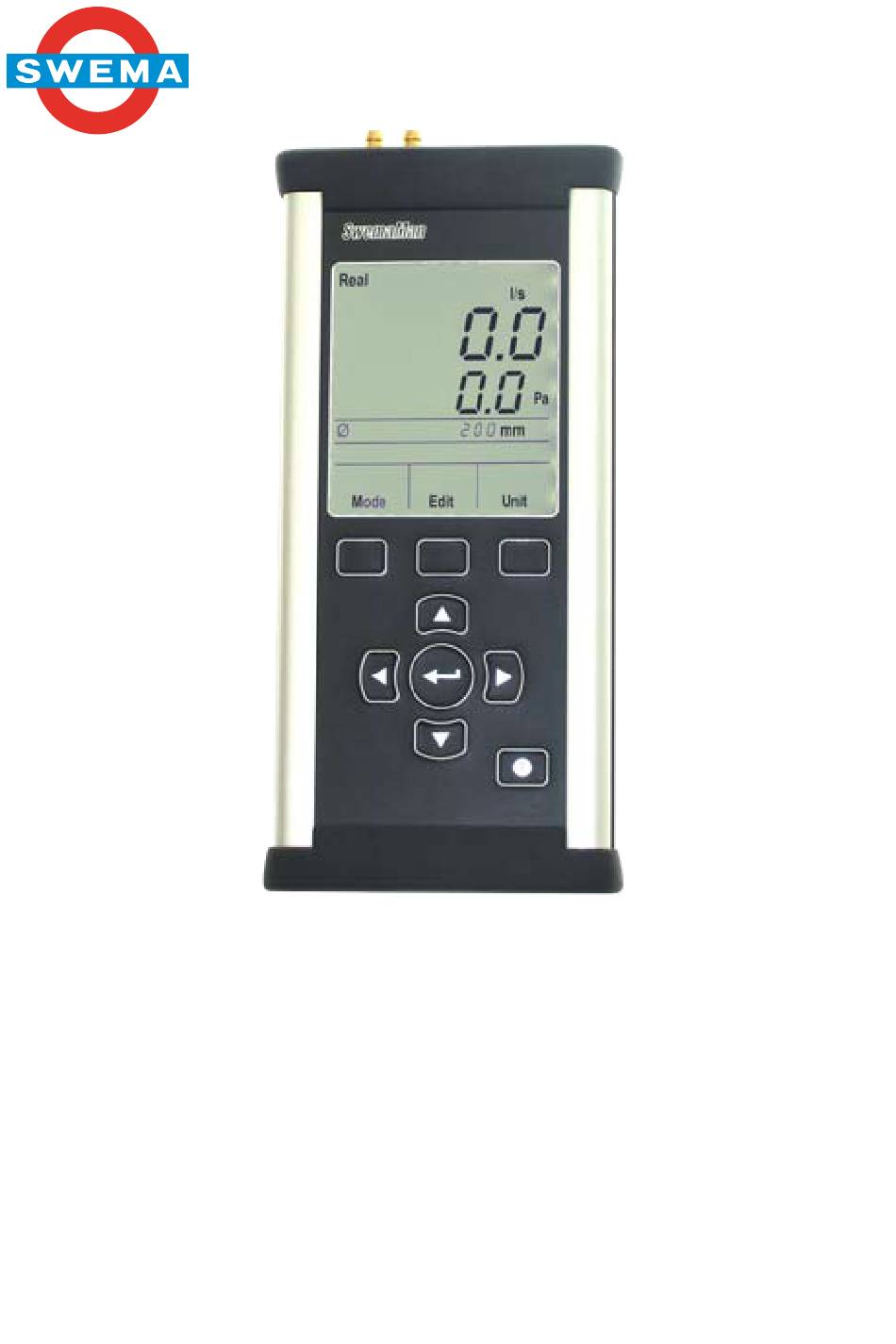

SwemaMan 7
Operating instructions
vers 1.13 MB_CW20180425
Contents:
1. Introduction......................... 1
2. Technical data....................... 2
3. Start of instrument............... 2
4. Unit..................................... 3
5. Mode................................... 5
6. Settings (Set)....................... 9
7. Notebook............................ 10
Advertisement
Related Manuals for Swema SwemaMan 7
Summary of Contents for Swema SwemaMan 7
-
Page 1: Table Of Contents
SwemaMan 7 Operating instructions vers 1.13 MB_CW20180425 WARNING! Before start measuring please read chapter ”6. Set- tings (Set)”. At delivery k2-factor is turned on. Contents: SWEMA AB 1. Introduction......1 Pepparv. 27 2. Technical data....... 2 123 56 FARSTA 3. Start of instrument....2 Tel: +46 8 94 00 90 4. -
Page 2: Introduction
1. Introduction SwemaMan 7 is a micro manometer for differential pressure, air flow and air velocity. Differential pressure is measured in Pa, airflow in l/s, m3/h or CFM and air velocity in m/s or fpm. It’s possible to set baro- metric pressure and temperature to compensate for correct air density. -
Page 3: Technical Data
When starting the instrument (ON/OFF-button), the display shows the battery voltage, firmware version and calibration date. After a couple of seconds it’s in measuring mode. SwemaMan 7 will start in the same measuring mode it was set to when turned off. -
Page 4: Unit
Save a measurement: After a measuring point has been stored it’s possible to save the measurement into SwemaMan 7:s Notebook by pressing Save. The display will show which note number the meas- urement is saved as (example n3 = note 3). - Page 5 • Measurement in duct (set Area) • Flow factor measurement • K-factor measurement If SwemaMan 7 is set to air velocity measurement press Unit and air flow measurement in l/s will be displayed, press Unit once more for air flow in m...
-
Page 6: Mode
See chapter ”6. Settings (Set)” for more information how to change between Std and *. 5. Mode When SwemaMan 7 is in measuring mode (all measuring modes) it’s possible to press Mode. In Mode it’s possible with the Arrow Keys to change type of air flow measurements,... - Page 7 Go to and press Enter for measuring air flow in rectangular duct by setting Height x Width. The Height x Width SwemaMan 7 is set to measure with is displayed direct under measured pressure (the display toggles between showing set height and width).
- Page 8 Area directly: Go to and press Enter for measuring air flow with an area set manually. The area SwemaMan 7 is set to measure with is displayed direct under measured pressure Use Unit to change between l/s and m To change the area press Edit, use the Arrow buttons to change it (0.001...
- Page 9 The Flow factor SwemaMan 7 is set to measure with is displayed direct under measured pres- sure. To change the Flow Factor press Edit, use the Arrow buttons to change it (0.001... 9999 l/s) and press Esc or Enter to return to measuring mode.
-
Page 10: Settings (Set)
-factor On or Off. If the k -factor is turned ”On” SwemaMan 7 reduces the area of the duct depending on the duct dimensions when calculating the air flow. Calculation of air flow: -factor Off: q = area x air velocity... -
Page 11: Notebook
Rectangular ducts: Height>Width » k2 = 0.94 Height<Width » k2 = 0.98 Height=Width » k2 = 0.96 Source: ”Metoder för mätning av luftflöden in ventilationsinstallationer (T09)” with cor- rection from NBI:s rapport nordtest Prosj. 1463-99 rev. 23-05-01. Display light (Bac. light): On or Off. The display light can also be turned On and Off by pressing the ON/ OFF-button.
