Summary of Contents for Prem-I-Air EH1672

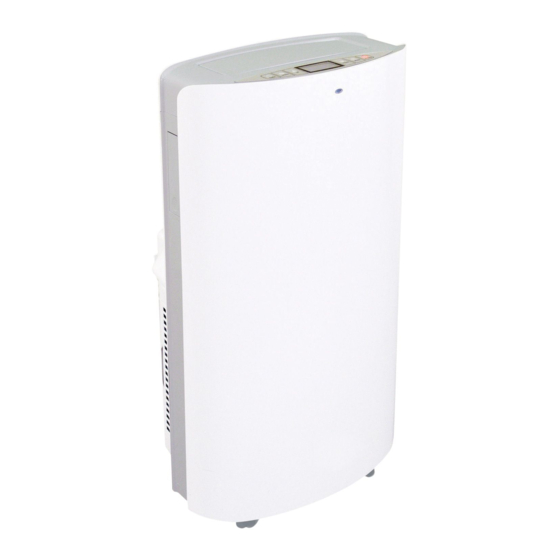

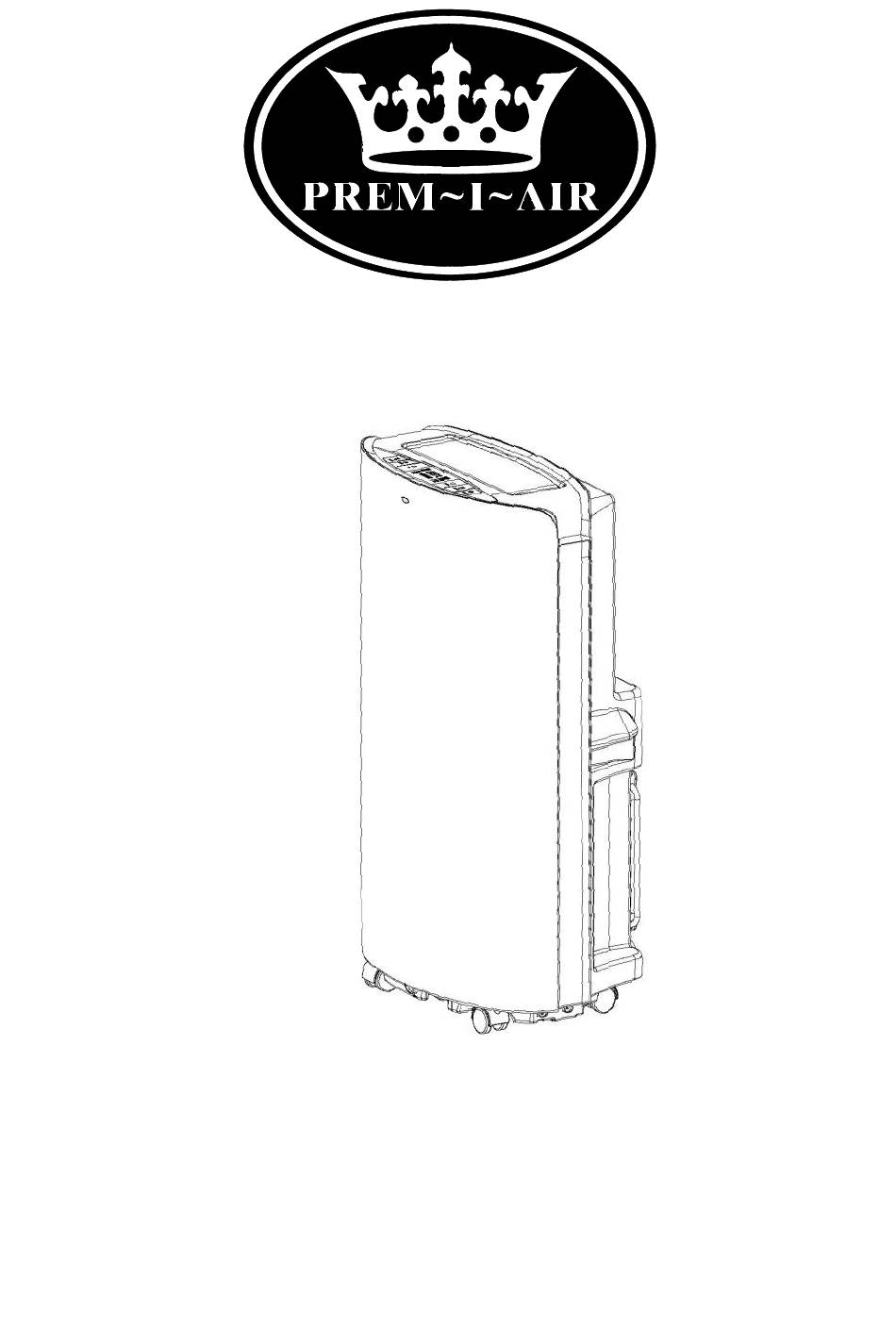

- Page 1 EH1672 3.5kW (12000 BTU/hour) Portable Air Conditioner User Manual Page 1...
-
Page 2: Before Use
3 hours for the refrigerant gas to stabilise before use. INSTALLATION Stand the EH1672 on a firm, flat, level surface. Connect the exhaust hose as follows: expand a small section of the end, and screw into the indoor adaptor;... - Page 3 The hose can be expanded up to 1.5 m long, but the shorter it is the more efficiently the EH1672 will operate. Do not extend the hose, or replace with another type of hose. Fit 2 x AAA batteries in to the remote control, observing the correct polarity.
- Page 4 The EH1672 has a built in condensate tank, for continuous operation the tank can be permanently connected to the drain. To do this a drain tube may be fitted as shown: Firstly unscrew the drain cap and remove the bung then using a piece of 18mm diameter tube (not supplied) connect one end to the drain –hole and run the pipe...
-
Page 5: General Safety Requirements
GENERAL SAFETY REQUIREMENTS Domestic wiring must be tested periodically by a qualified electrician at least once every 10 years or at every change of occupancy. For office and retail premises, and buildings such as village halls, the wiring must be inspected at least once every 5 years. It is recommended that all building be fitted with smoke alarms (it is mandatory for new buildings). -
Page 6: Operation
OPERATION Leave the appliance in an upright position for 3 hours before first use. Plug the mains lead into a 13 Amp mains socket (unless permanently installed) If connecting via an extension lead, make sure that the lead is rated at 13 Amps or more, and that it is fully unwound. - Page 7 results, do not use the exhaust tube, but fit a permanent drainage pipe to the drain outlet as shown on page 4. /HEAT mode: heats if the room temperature is below the selected temperature. Use the buttons to select the desired room temperature.
- Page 8 /Auto Clean: This option only works in Cooling, Heating and Energy saving modes. With this option on, the upper and lower fans run for 3 minutes after the unit is switched off to clean the evaporator and condensate tanks. This also helps to prevent mould build up in the cooling system and prolongs the life of the unit.
-
Page 9: Maintenance
MAINTENANCE The unit should be cleaned regularly to maintain the best possible operating efficiency and performance. Before any maintenance should be performed turn off the unit and once the fans and compressors have stopped unplug the unit from the mains supply and leave for 3 minutes. - Page 10 Remove heat exhaust hose by pushing the clips on the rear socket to the side with your thumbs and clean with a soft cloth Drain the condensate tank as per the instructions on page 4. Run the unit in fan only mode for 12 hours to dry out the unit interior.
-
Page 11: Troubleshooting
TROUBLESHOOTING If you have any trouble operating this unit please see the table below for simple instructions on how to solve many common problems. Never attempt to open or service the unit and refer all servicing to qualified personnel. Trouble Cause Remedy Connect the unit to a live socket... -
Page 12: Operating Costs
(kilowatt-hour). The amount you are being charged will be shown on your electricity bill. At this cost, the EH1672 will cost £0.16 per hour to run in heating, cooling or dehumidifying modes, and £0.05 per hour to run in the fan-only mode. -
Page 13: Technical Specification
TECHNICAL SPECIFICATION Unit Btu/h 12000 Cooling capacity 3520 Btu/h 13200 Heating capacity 3800 Power Supply 230~ Rated Input (Cooling) 1350 Rated Current (Cooling) 6.20 Rated Input (Heating) 1330 Rated Current (Heating) 6.20 EER for Cooling(R410A) 2.61 COP for Cooling(R410A) 3.09 Moisture Removal Air Circulation m³/h... -
Page 14: Service / Warranty
SERVICE WARRANTY Prem-i-Air guarantees the product free from defects in materials and workmanship for a period of twelve months. Should this unit be operated under conditions other than those recommended, at voltages other than the voltage indicated on the unit, or any attempts made to service or modify the unit, then the warranty will be rendered void.
