- Page 1 THE ELEMENT SERIES USER GUIDE THE LYCAN POWERBOX Version 2.0...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SYMBOLS Indicates potentially dangerous conditions that could result in WARNING personal injury Indicates conditions or practices that could result in damage to the CAUTION unit or other equipment Indicates procedure or function that is important for proper and safe NOTE operation of the unit or other equipment Charge your Lycan up completely before use...
-
Page 3: Table Of Contents
TABLE OF CONTENTS GENERAL GEAR OVERVIEW MAIN OVERVIEW DETAILS ACCESSORIES OPERATIONS LCD INFORMATION CHARGING YOUR LYCAN POWERBOX USING YOUR LYCAN POWERBOX USING LED LIGHT USING INTERNAL AND EXTERNAL BATTERY BACK TECHNICAL SPECIFICATIONS MAINTENANCE DAILY MAINTENANCE COMPONENTS REPLACEMENT REGULAR MAINTENANCE TROUBLESHOOTING... -
Page 4: General

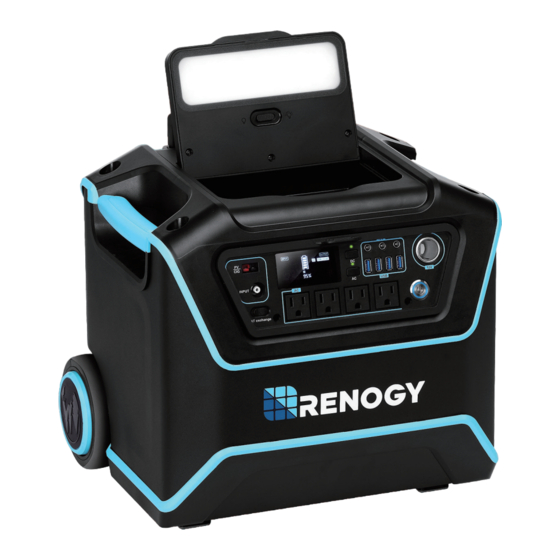

GENERAL Thanks for choosing Renogy's Lycan Powerbox as your new companion. The Lycan features multiple AC and DC output ports while also supporting multiple charging methods such as wall charging, vehicle charging, and solar panel charging. Built with numerous applications in mind, the lycan is your new favorite companion for power outages , camping trips, outdoor events, or even as an eco-friendly alternative to lighten your home’s electricity bill. -
Page 5: Gear Overview
GEAR OVERVIEW GEAR OVERVIEW 1 / OVERVIEW 2 / FRONT 3 / BACK 4 / SIDE 5 / SIDE... -
Page 6: Details
6 / Top 7 / Bottom DETAILS 1 / Front Main Panel 2 / Back Interface Anderson Power RJ45 Port Pole Port XT90 Port External Fuse Slots... -
Page 7: Accessories
3 / U-Bar Handle 4 / LED Floodlight ACCESSORIES 1 / 1 x Lycan Powerbox 2 / 1 x AC Power Adaptor Cord 3 / 1 x MC4 to Anderson Power Pole 4 / 1 x CIG to Anderson Power Pole... - Page 8 5 / 1 x 6.0mm Hex Key, used to unscrew the M8 screws on the upper case. 1 x 3.0mm Hex Key, used to unscrew the M4 screws on the trolley. The following accessories are not included and require separate purchase. 6 / 1 x Anderson Power Pole to Alligator Clips 7 / 1 x 5.5mm DC to Light Bulb Socket 8 / 1 x RJ45 cable...
-
Page 9: Operations
OPERATIONS LCD INFORMATION Turns on when PV, AC, or CIG inputs are being Input Display used to charge the Lycan Solar Charging Indicates solar charging Electric Supply Indicates charging by AC adapter Charging Indicates charging with 12V vehicle power Car Charging If input display is PV or CIG, it shows the respective Charging Voltage connector charging voltage. -
Page 10: Charging Your Lycan Powerbox
Charging Your Lycan Powerbox Be sure to charge your Lycan Powerbox to 100% before operating. This will maximize battery life. For healthy battery maintenance, charge the Lycan once every two months. If the Lycan will not be used for an extended period of time, such as a month, remove the battery and properly store it until the Lycan is in use again. -
Page 11: Using Your Lycan Powerbox
3/Charging via Solar Use the provided MC4 to Anderson Pole cable to connect external solar panels to the Lycan. Make sure to put the Lycan in a sunny place when charging via solar and place the solar panel in proper position without shade so as to maximize charging. Upon charging, the PV icon will be displayed on the LCD. -
Page 12: Using Led Light
3/Charging External Lead Acid battery The Lycan is capable of charging both 12V and 24V lead acid batteries; When the lead acid battery is connected to the Lycan, the ，icon will appear, and it will be distinguished if it is 12V or 24V in 5 seconds, and display with the respective icon When charging is detected on the lead acid battery, the on the LCD screen starts to flash. -
Page 13: Using Internal And External Battery Back
Using Internal and External Battery Pack The Lycan allows you to prepare a library of fully charged batteries for quick, hassle-free reloads. Now there is no waiting hours for the unit to recharge, simply swap it out for another battery and experience no power interruptions. In addition, charge external lithium batteries or even sealed lead acid batteries through the Lycan’s unique design. -
Page 14: Technical Specifications
TECHNICAL SPECIFICATIONS Battery Type Lithium iron phosphate battery Voltage 44.8V Capacity 24AH 2000 cycles to 80% capacity Cycle Life (80% DOD @25℃, Discharge rate: 1C) Rated Charging Current 12A(Max15A) Output Ports Inverter Wave Form Pure Sine Wave AC Outlet Voltage 110V (1200W Max) USB DC Out 5V 2.4A(Max 7A ,4ports total) -
Page 15: Maintenance
All the components included in the Lycan are prone to wear and tear. Please make sure to replace any worn out parts, damaged wires or loose screws. If you are having issues replacing a part contact RENOGY or the supplier. NOTE Only trained personnel should be allowed to disassemble and replace the internal components. - Page 16 Replacement of Internal Lithium Battery Pack Please follow the steps below when replacing the internal lithium battery pack. Power off the equipment, remove all wires Remove the fastening screws on the upper case Remove the fastening screws on the back trolley, and remove the trolley Remove the upper case Remove the fastening screws on the fixing batten of lithium battery pack, and remove the batten...
-
Page 17: Regular Maintenance
At the same time, please check whether it is caused by the external environment, such as high/low temperature and humidity. Please contact RENOGY or the supplier for help if the following troubleshoot solutions do not work. Fault... -
Page 18: Faq
Fault Causes Solutions LCD displays It indicates battery low voltage. The inverter Lithium battery output will stop. Please charge the equipment. pack lowcapacity LCD displays Over temperature It indicates battery high temperature. The of Lithium inverter output will stop. Please disconnect battery pack any loads and turn off the unit. - Page 19 DISCHARGING 2.WILL MY DEVICES WORK ON THE LYCAN? CAN I OPERATE AC AND DC DEVICES AT THE SAME TIME? Every device has a rated power value, typically rated in Watts (W). The Lycan’s combined AC ports can run a maximum of 1200W continuously. If your device runs on less power than 1200W, then the Lycan will be able to work with your devices.
- Page 20 2775 E. Philadelphia St., Ontario, CA 91761 1-800-330-8678 Renogy reserves the right to change the contents of this manual without notice.
