8/16/24 - Port Gigabit PoE+ Injector
DN-95115 DN-95116 DN-95117
Introduction
The family of Power over Ethernet PSE (Power Sourcing Equipment) injects power
over data-carrying Ethernet cabling. It follows the IEEE802.3af/IEEE 802.3at and is
completely compatible with existing Ethernet switches and networked devices.
Features
8/16/24 channels Power Sourcing Equipment (PoE Injector)
Support 8 ports full load, max:
Support 16 ports full load, max: 250W (DN-95116)
Support 24 ports full load, max: 370W (DN-95117)
IEEE802.3af/IEEE802.3at compliance
Remote power feeding of Ethernet terminals up to 100 meters
Auto-detect of POE IEEE802.3af/IEEE 802.3at equipment
Independent overload and short-circuit protection per channel
Led Indicators power input indication
Internal AC/DC converter – no need for external power brick
AC input 100~240VAC, 50/60Hz
Standard 1U, 19" rack mountable
Easy plug-and-play installation
Manual
150W (DN-95115)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Digitus professional DN-95115
Summary of Contents for Digitus professional DN-95115

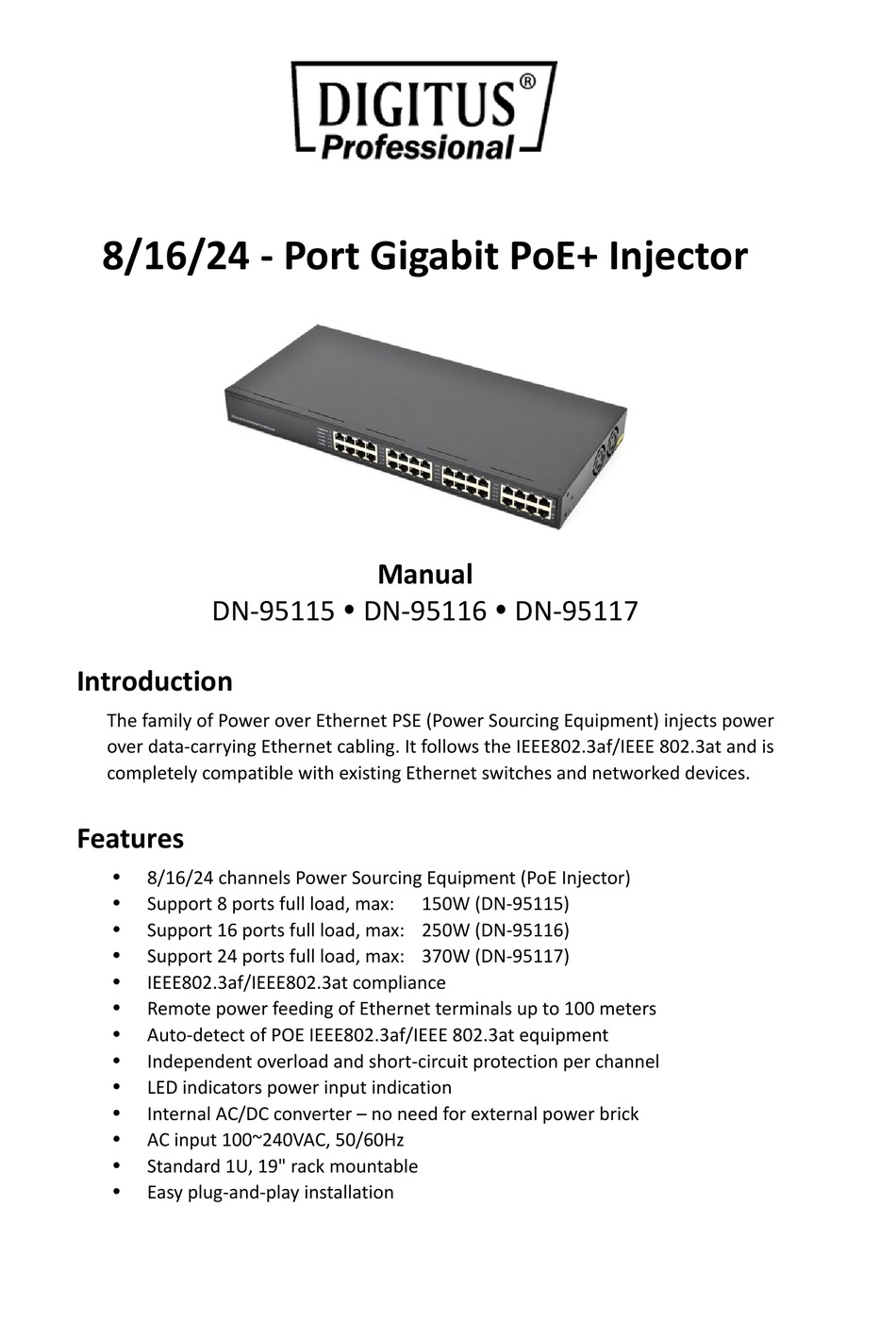

- Page 1 8/16/24 - Port Gigabit PoE+ Injector Manual DN-95115 DN-95116 DN-95117 Introduction The family of Power over Ethernet PSE (Power Sourcing Equipment) injects power over data-carrying Ethernet cabling. It follows the IEEE802.3af/IEEE 802.3at and is completely compatible with existing Ethernet switches and networked devices.
-
Page 2: Package Contents
Hardware Description This Section mainly describes the hardware and gives a physical and functional overview DN-95115 Physical Dimension: The physical dimension is: 275mm x 180mm x 44mm (L x W x H) Front Panel: The Front Panel consists of 8 x RJ-45 Ethernet ports (data), 8 x RJ-45 PoE ports (data + power), and 8 x LED port indicators. -
Page 3: Technical Specification
The AC inlet is located at the rear panel. The device will work with AC in the range 100~240VAC, 50/60Hz. Technical Specification Item Description Model DN-95115 DN-95116 DN-95117 No. of Ports Pass Through Data Rates 10/100/1000 Mbps Power over Ethernet Output Pin Assignment and Polarity:... - Page 4 Application PoE IP Camera PoE IP Camera Data PoE IP Camera Data + Power PoE IP Camera Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the requirements of Directive 2014/30/EU (EMC), Directive 2014/35/EU (LVD) and the Directive 2011/65/EU for RoHS compliance.
