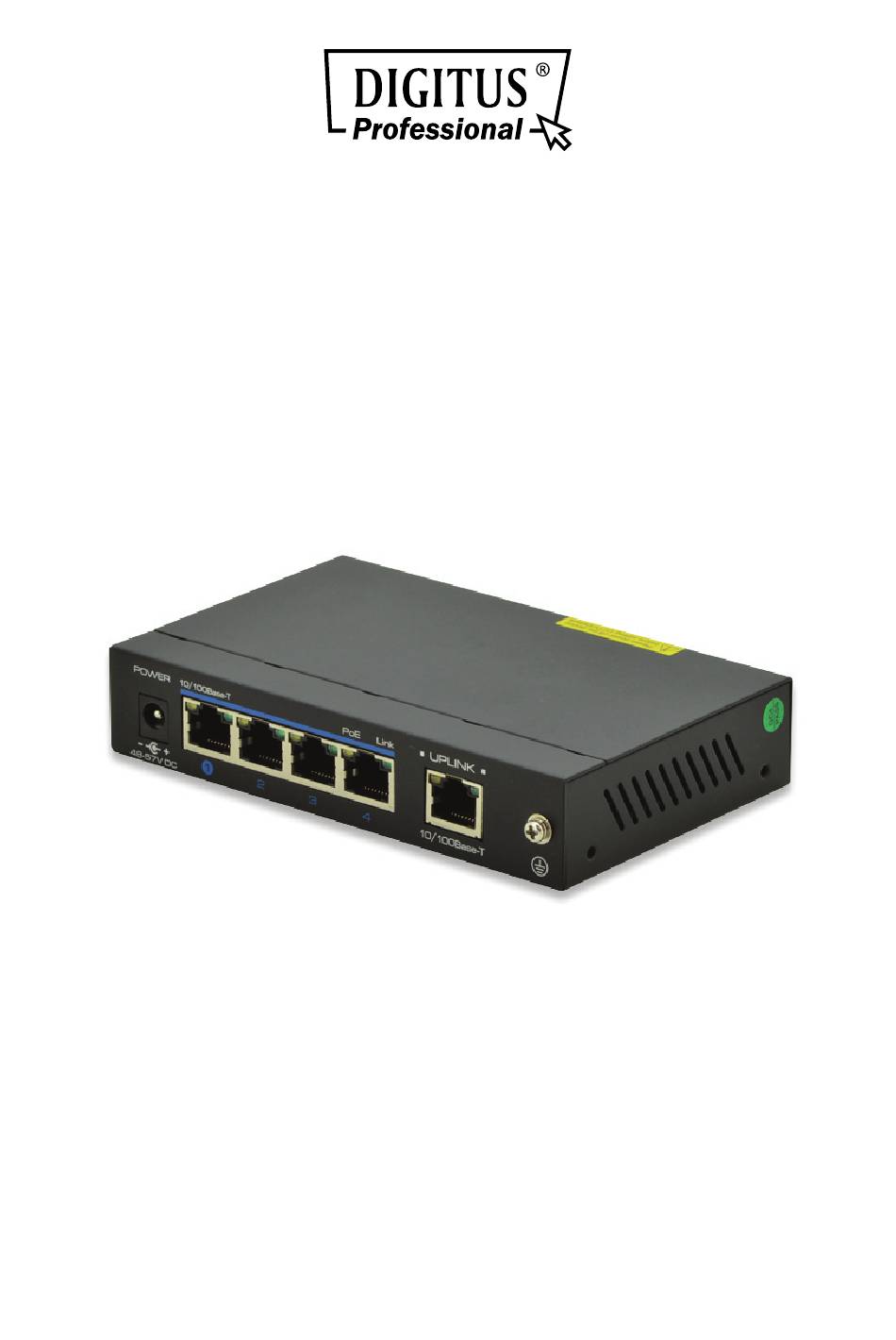

- Page 1 4 Ports Fast Ethernet PoE Switch Manual DN-95322...
- Page 2 4 Ports PoE Ethernet Switch 4 ports PoE Ethernet Switch is a security surveillance Ethernet Switch which aims at Ethernet high definition surveillance and Ethernet project security system. The product fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission.
-

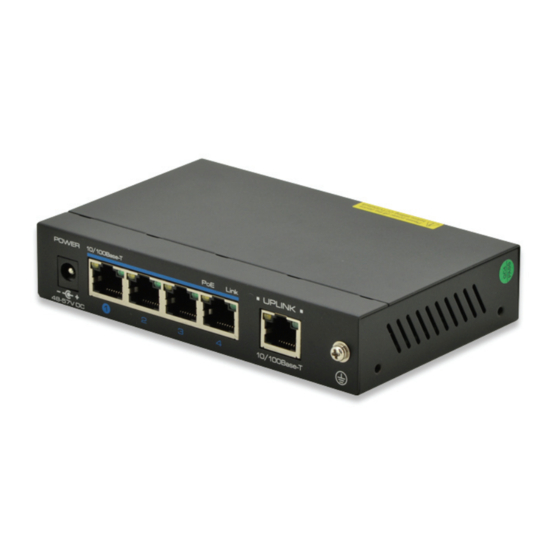

Page 3: Board Diagram
Notice The transmission distance is related to the connected cable. We suggest standard Cat5e/6 network cable, so the transmission distance can up to100m! Board diagram Description 1) The equipment must connect the ground according to the request. 2) Turn the dial switch for left, the equipment can enter surveillance module after providing equipment power. - Page 4 Please follow the below installation steps: 1. Please turn off the signal power and display device power before installation, installation with power will damage the transmission equipment 2. Use network cable connect PoE IP camera and 1～4 down link ports of product respectively 3.
- Page 5 Product is subject to change without prior notice. Trouble Shooting 1. Make sure the equipment is installed according to the manufactures installation guide. 2. Confirm RJ45 cable order meets EIA/TIA568A or 568B standard. 3. Every PoE port can provide PoE equipment maximum power less than 30W;...
